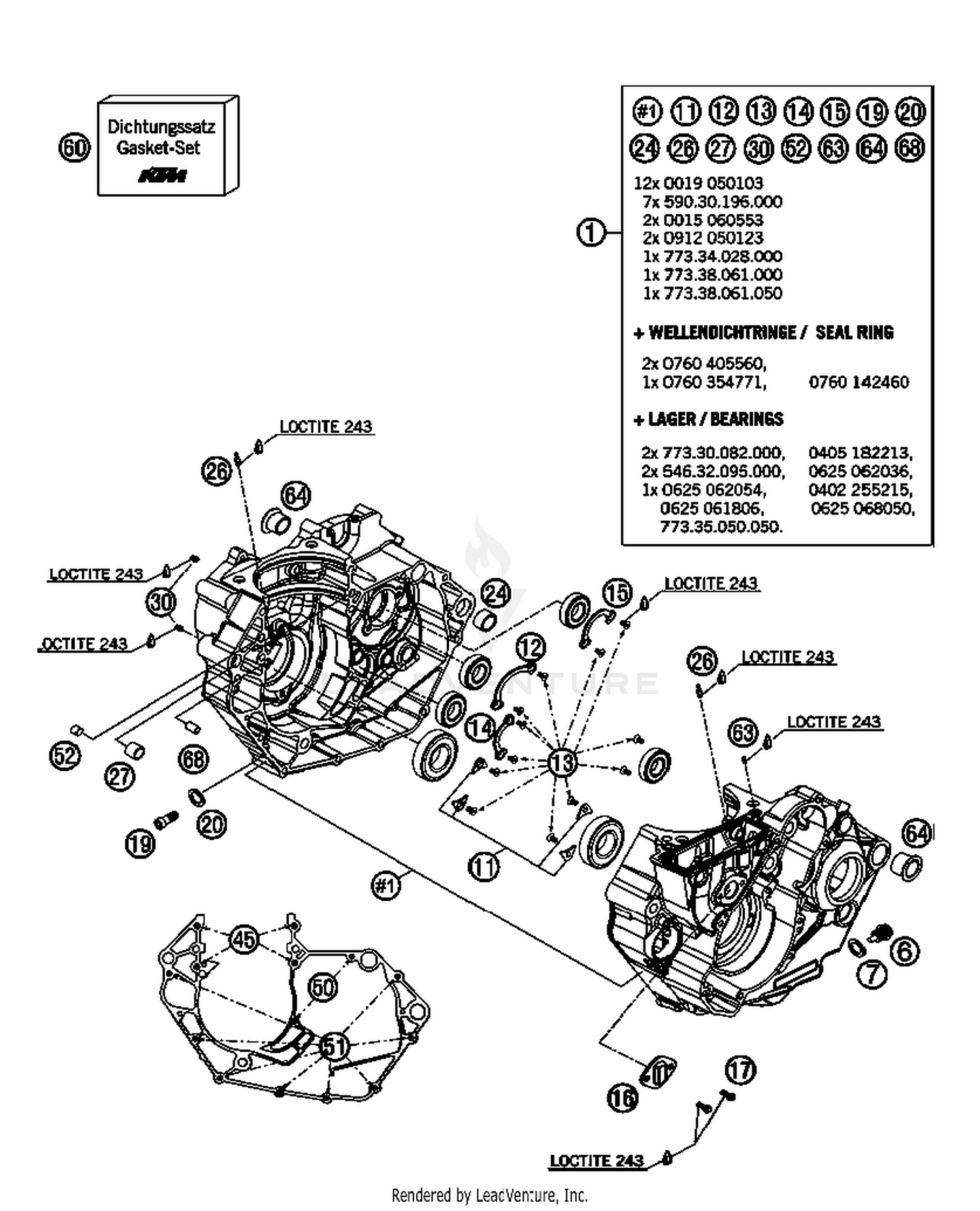

Engine Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ENGINE CASE CPL. W.TR.BEAR. 08
77330000144
Superseded by 77330000244
|
$1,710.54 | ||
|
Available to order. Add to View Price |
|||
|
#6
oildrain plug with magnet
58030021000
Superseded by 58030021100
|
$13.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CU-SEAL RING DIN7603-12X18X1,5
58038022000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BUSHING RETAINING PLATE
77330085000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSHING RETAINING PLATE
77333022100
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
hex lobe countersunc screw M5x10 - 10.9
0019050103
Superseded by 0019050106S
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BUSHING RETAINING PLATE
77334090000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUSHING RETAINING PLATE
77333024100
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
RETAINING PLATE
77336075050
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
HH COLLAR SCREW M 5X10 WS=8
0015050103
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
AH SCREW DIN6912-M 8X20
0012080203
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAL RING CU DIN7603- 8X12X1
0603082121
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
DOWEL 17 X 19 X 12
59030024000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
oil jet 50 M5
60030063050
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#27
DOWEL BUSHING 13,8X11X12
54630027000
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#30
JET 100 BING(44-031/180) M4
59030058000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
HH COLLAR SCREW M7X1X70
77330067070
|
$16.60 | ||
|
Available to order. Add to View Price |
|||
|
#50
HH COLLAR SCREW M6X70 TX30
0015060703
Superseded by 0025060706
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
HH COLLAR SCREW M 6X55 WS=8
0015060553
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#52
CYLINDER ROLLER ZRO. 8,0X12 M4
0402080120
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
GASKET SET 450/505 SX-F
77330099000
Superseded by 77330099001
|
$455.61 | ||
|
Available to order. Add to View Price |
|||
|
#63
THROTTLE M5X10X1
77338029052
|
$11.65 | ||
|
Available to order. Add to View Price |
|||
|
#64
CASE BUSH
75030010000
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#68
Dowel, 6x8x11.5
59030023000
Superseded by 59030023100
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
