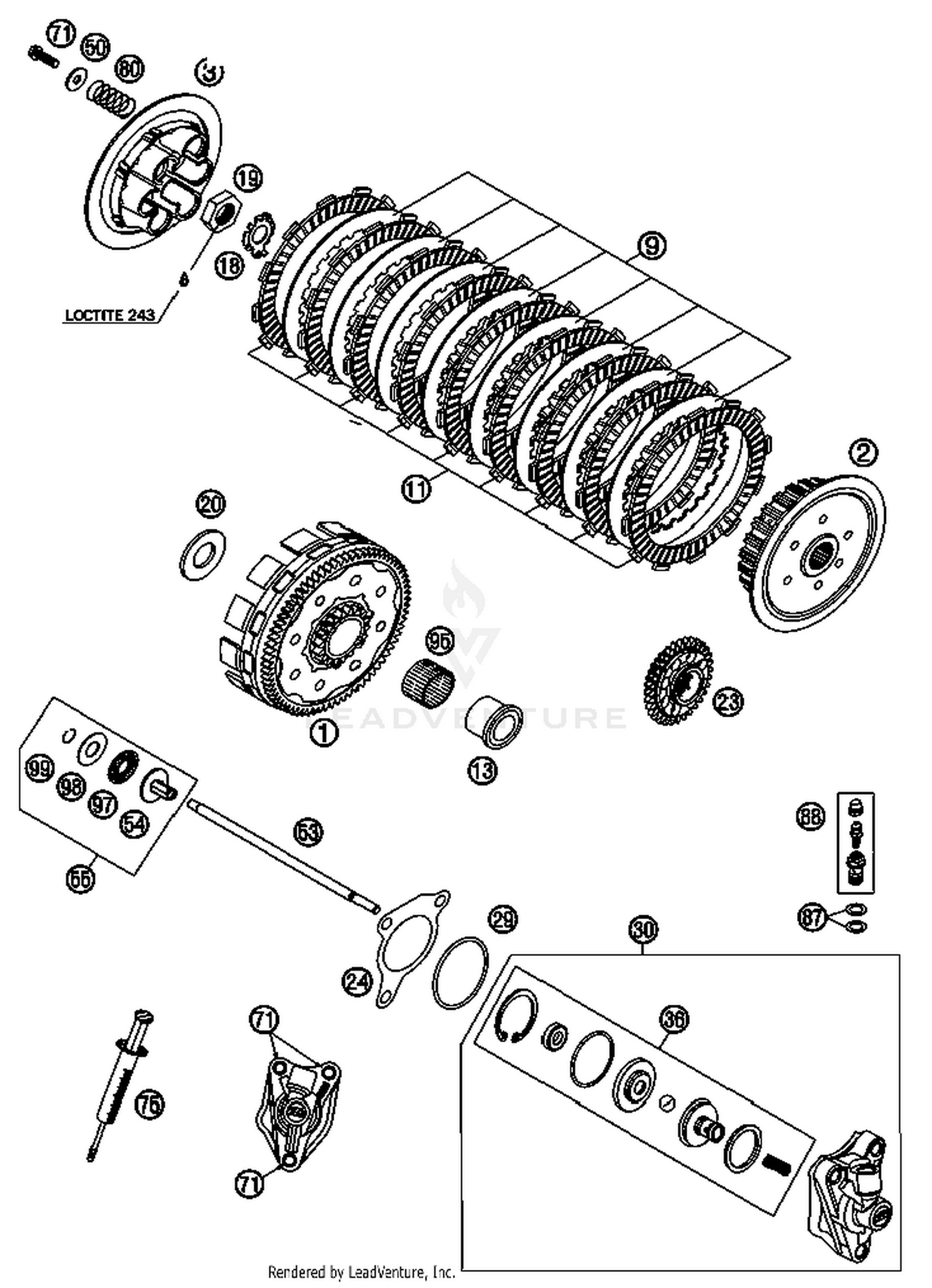

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OUTER CLUTCH CPL.
77332001144
Superseded by 77332001344
|
$536.64 | ||
|
Available to order. Add to View Price |
|||
|
#2
INNER CLUTCH HUB
77332002000
|
$115.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PRESSURE PLATE
77332003000
|
$102.51 | ||
|
Available to order. Add to View Price |
|||
|
#9
INTERMEDI. DISC STEEL
77332010000
|
$13.74 | ||
|
Available to order. Add to View Price |
|||
|
#11
LINING DISC 2,7MM
77332011000
|
$33.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
INNER RING
77332015100
|
$31.23 | ||
|
Available to order. Add to View Price |
|||
|
#18
RETAINING PLATE
77332018000
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
HEXAGON NUT DIN0936-M18X1,5 R.
0936181505
|
$9.12 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WASHER 21,7X38X4 07
77332017100
|
$21.66 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET F. OUTPUT CYLINDER
59032065000
Superseded by 59032065100
|
$6.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
O-RING 38,00X2,00 NBR 70 SH
0770380020
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
OUTPUT CYLINDER CPL.
77332061044
|
$347.81 | ||
|
Available to order. Add to View Price |
|||
|
#36
PISTON CPL.
77332066000
|
$89.64 | ||
|
Available to order. Add to View Price |
|||
|
#50
WASHER 6,2X18X2
50232050000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#53
PUSH ROD 07
77332054100
|
$15.39 | ||
|
Available to order. Add to View Price |
|||
|
#54
PRESSURE PIECE
77332057100
|
$15.72 | ||
|
Available to order. Add to View Price |
|||
|
#55
PRESSURE PIECE CPL.
77332057144
|
$28.26 | ||
|
Available to order. Add to View Price |
|||
|
#71
HH collar screw M6x25 TX30
0015060253
Superseded by 0025060256
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#75
VENT INJEKTION HYDR. CLUTCH
50329050000
|
$63.24 | ||
|
Available to order. Add to View Price |
|||
|
#80
CLUTCH SPRING
77332005000
|
$11.32 | ||
|
Available to order. Add to View Price |
|||
|
#87
CU-SEAL RING DIN7603-10X16X1
42013226000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#88
BLEEDER SCREW CPL. 05
54813020000
Superseded by 62513020000
|
$32.33 | ||
|
Available to order. Add to View Price |
|||
|
#95
NEEDLE BEARING K26X30X22ZW.KSE
56532095000
|
$28.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#97
AXIAL NEEDLE BEARING AXK 1226
54637097200
|
$11.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#98
AXIAL WASHER AS1226 12X26X1
54637098200
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#99
CIRCLIP DIN7993-RW12
0993012000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
