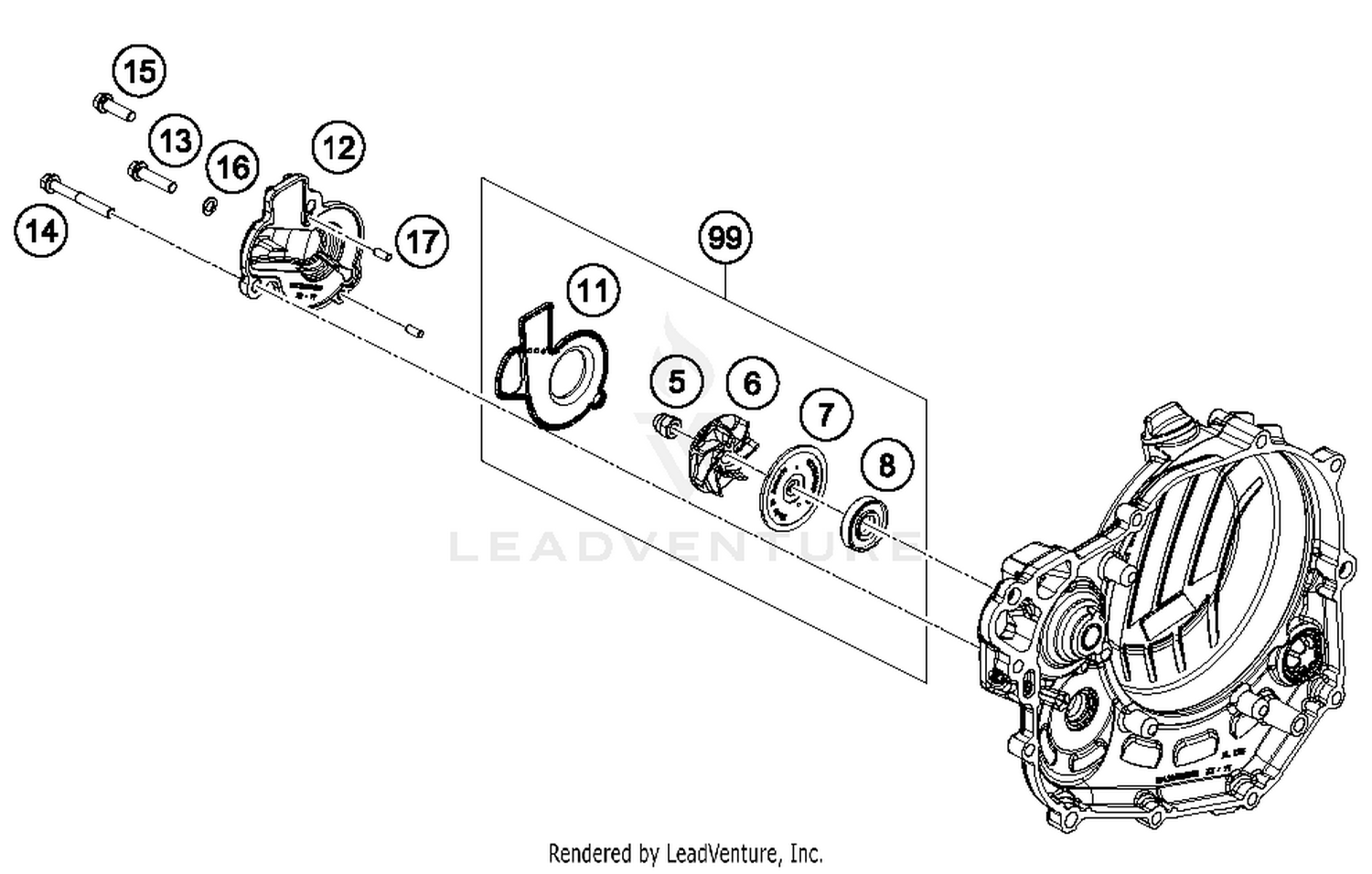

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#5
CAP NUT M6 STAINLESS STEEL
61230045000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WATER PUMP ROTOR
81235055020
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
DISC WATER PUMP
81235055110
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT SEAL RING 12X30X7 PTFE
0760123073
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
Gasket with carrier plate
79435053000
Superseded by 79435053100
|
$28.26 | ||
|
Available to order. Add to View Price |
|||
|
#12
WATER PUMP COVER
79435052000
|
$24.41 | ||
|
Available to order. Add to View Price |
|||
|
#13
HH collar screw M6x25 TX30
0025060256
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
HH COLLAR SCREW M6X45 TX30
0025060456
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
HH collar screw M6x20 TX30
0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CU-SEAL RING DIN7603-6X10X1
0603061001
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NEEDLE ROL.DIN5402 NRB 4X9,8
0402040980
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#99
WATER PUMP REP. KIT
79435055015
|
$64.45 | ||
|
Available to order. Add to View Price |
|||
