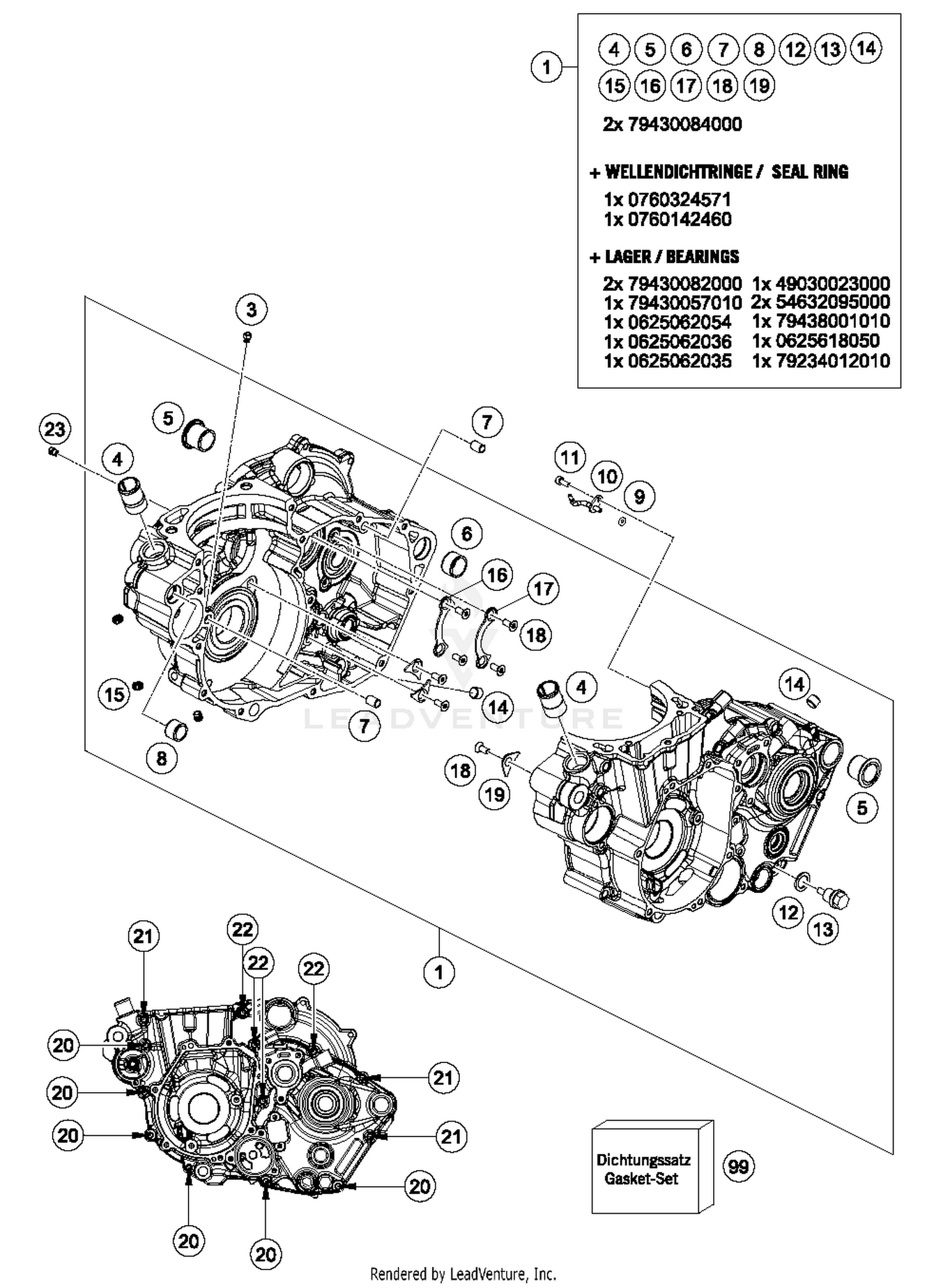

Engine Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Crankcase cmpl.
79430000044
Superseded by 79430000344
|
$1,464.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
oil jet 70 M5
60030063070
|
$10.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
SCREW IN NOZZLE M20X1,5
58030010200
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
CASE BUSH
75030010100
|
$14.51 | ||
|
Available to order. Add to View Price |
|||
|
#6
Dowel, 21x12
54830027000
Superseded by 54830027100
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
Dowel, 6x8x11.5
59030023000
Superseded by 59030023100
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DOWEL 17 X 13 X 12
51030026100
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING 3,5X2,00 NBR
0770035020
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL JET ANGLED 70
81230064000
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
AH.SCREW DIN0912-M 4X10
0912040103
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CU-SEAL RING DIN7603-12X18X1,5
58038022000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
oildrain plug with magnet
58030021000
Superseded by 58030021100
|
$13.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
pipe plug DIN 906 M10x1
0906100100
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW PLUG
59030296000
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
TAB WASHER BEARING MAIN SHAFT
78033032000
|
$6.48 | ||
|
Available to order. Add to View Price |
|||
|
#17
TAB WASHER BEARING COUNT.SHAFT
78033132000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
INT. TORX FLAT HEAD M5X12 T25
0019050121S
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Retaining bracket crankshaft bearing
75030085000
Superseded by 75030085100
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
HH collar screw M6x60 TX30
0025060606
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
HH COLLAR SCREW M6X70 TX30
0025060706
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
HH COLLAR SCREW M6X80 TX30
0025060806
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
oil jet 50 M5
60030063050
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#99
GASKET SET 450 SX-F
79430099000
|
$300.95 | ||
|
Available to order. Add to View Price |
|||
