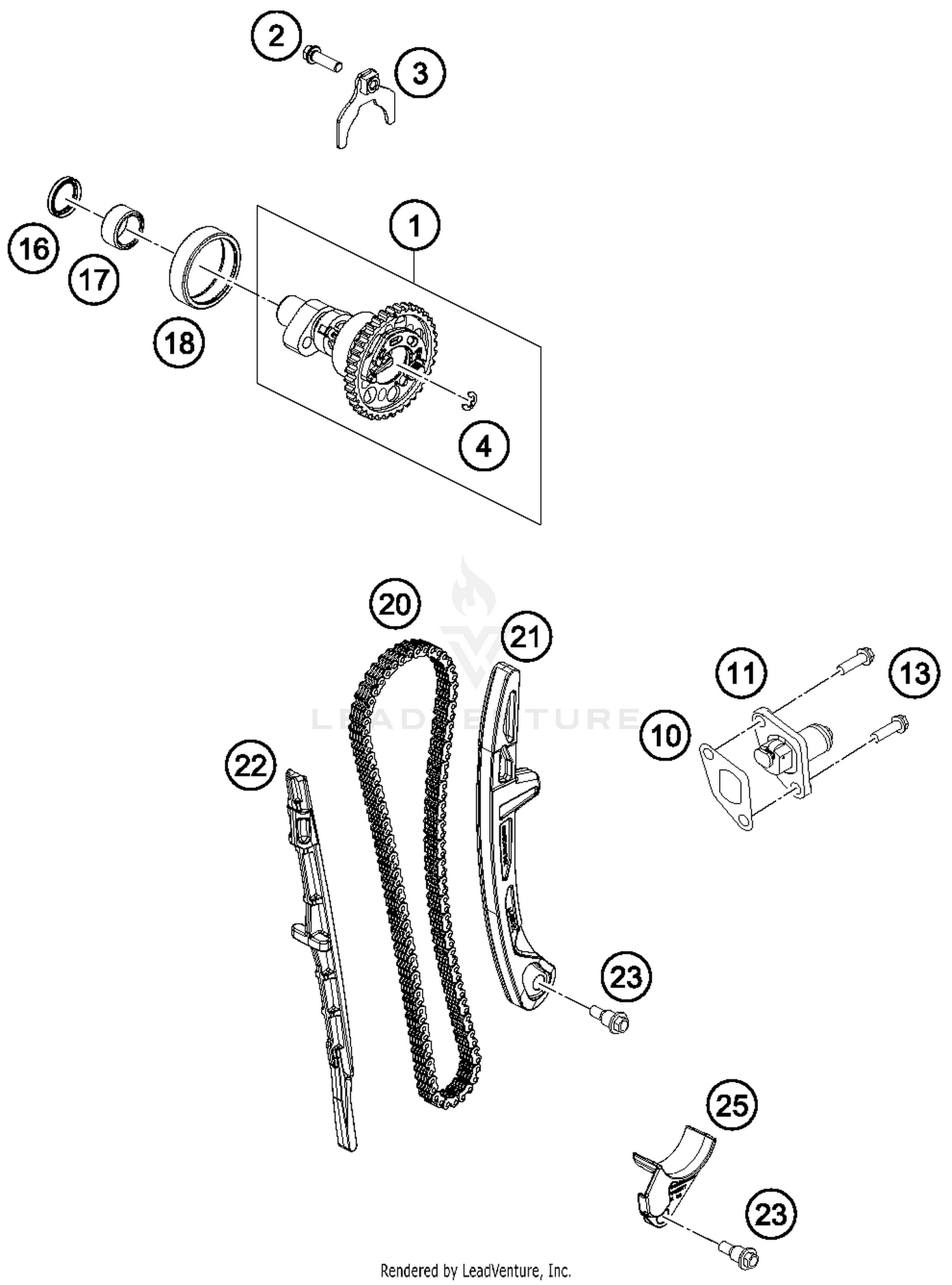

Timing Drive Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT CPL. WITH DECO
79436010044
|
$351.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
HH collar screw M6x20 TX30
0025060206S
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BRACKET CAM SHAFT
79436012033
|
$20.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
TAB WASHER DIN6799 RS5
0799050000
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET TIMING CHAIN TENSIONER
59036003050
Superseded by 59036003150
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
TIMINGCHAIN TENSIONER CPL.RAC.
59036003000
|
$68.08 | ||
|
Available to order. Add to View Price |
|||
|
#13
HH collar screw M6x16 TX30
0025060166
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SHAFT SEAL RING 18X24X4
0760182442
|
$6.81 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NEEDLE BEAR.HK1812 18/24/12 05
0618182412
|
$9.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
NEEDLE SLEEVE HK4012B40X47X12
0618404712
|
$12.97 | ||
|
Available to order. Add to View Price |
|||
|
#20
TIMING CHAIN 108 ROLLS
77036013100
|
$115.93 | ||
|
Available to order. Add to View Price |
|||
|
#21
DRIVE CHAIN TENSIONING RAIL
79436002000
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#22
DRIVE CHAIN GUIDE
79436001000
|
$11.65 | ||
|
Available to order. Add to View Price |
|||
|
#23
BUSHING SCREW M6
77236001160
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#25
FAIL SAFE
79436018000
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
