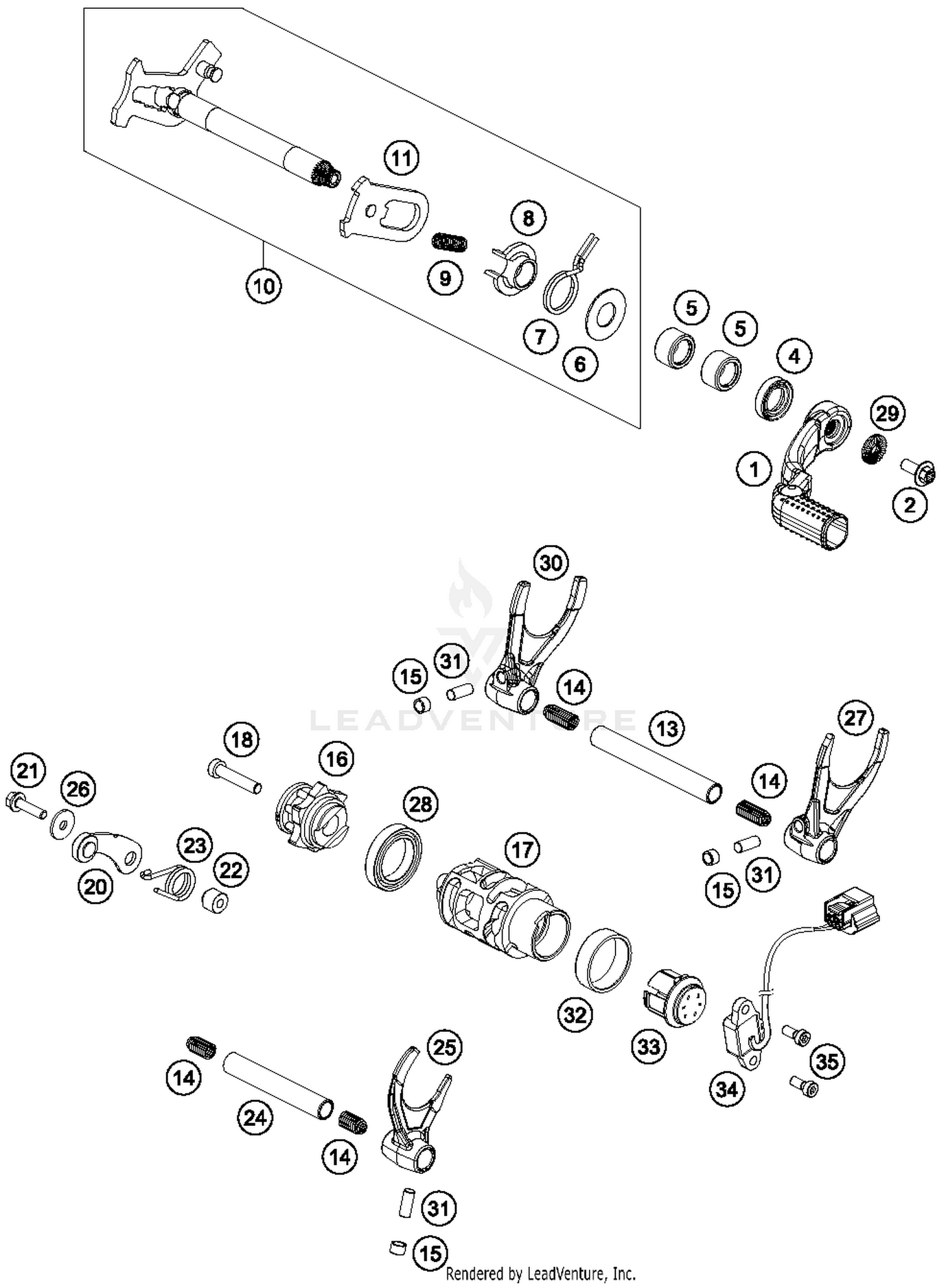

Shifting Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT LEVER CPL.
79434031000
Superseded by 79434031100
|
$116.92 | ||
|
Available to order. Add to View Price |
|||
|
#2
HH collar screw M6x15 TX30
0024060156S
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
radial shaft seal 14x24x6 B
0760142460
|
$10.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
needle sleeve HK 1412 14x20x12
54632095000
|
$8.24 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
STOP DISK 14X30X1
54634050000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RETURN SPRING 2,2MM '95
54634014100
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING GUIDE
54634020000
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
TENSIONING SPRING 0,8MM
56534013100
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Shift shaft cpl. rdy-to-inst
79434005133
Superseded by 79434005233
|
$75.12 | ||
|
Available to order. Add to View Price |
|||
|
#11
SLIDING PLATE
54634108044
|
$43.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR SHIFT RAIL 11,8X91,1MM
79434020000
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PRESSURE SPRING 0,9MM
58038023200
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIFTING ROLLER 6X8X5,2
50334018100
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SELECTOR INTERLOCK MECHAN. CPL
79434015000
|
$40.73 | ||
|
Unavailable |
|||
|
#17
SHIFTING CONTROLLER 5 GEAR
79434112100
|
$92.17 | ||
|
Available to order. Add to View Price |
|||
|
#18
AH SCREW DIN6912 M6X30 8.8
0012060303
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
LOCKING LEVER CPL.
78134024044
|
$17.15 | ||
|
Available to order. Add to View Price |
|||
|
#21
HH collar screw M5x20 TX30
0025050206
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SLEEVE FOR LOCKING LEVER
54634052300
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
ARRESTING LEVER SPRING 03
60034023000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GEAR SHIFT RAIL 11,8X74,5MM
79434019000
|
$13.85 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHIFTING FORK 5TH-6TH GEAR
79434001100
|
$93.27 | ||
|
Available to order. Add to View Price |
|||
|
#26
washer DIN 9021 A - 5.3
0021050003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
SHIFTING FORK 2ND-4TH GEAR
79434002100
|
$93.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BALL BEARING 61805 C3
0625618050
|
$51.69 | ||
|
Available to order. Add to View Price |
|||
|
#29
PAIR NORDLOCK WASHER M6
50233041500
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
SHIFTING FORK 1ST-3RD GEAR
79434003100
|
$92.94 | ||
|
Available to order. Add to View Price |
|||
|
#31
NEEDLE ROLLER DIN5402 6X14,8
0402061480
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
FRICTION BEARING CONTROLLER
79234012010
|
$27.05 | ||
|
Available to order. Add to View Price |
|||
|
#33
magnet holder cpl.
79234012020
|
$69.07 | ||
|
Available to order. Add to View Price |
|||
|
#34
gear position sensor
79211023000
|
$142.77 | ||
|
Available to order. Add to View Price |
|||
|
#35
CYLIND. SCR. DIN6912 M5X12 8.8
0984050123S
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
