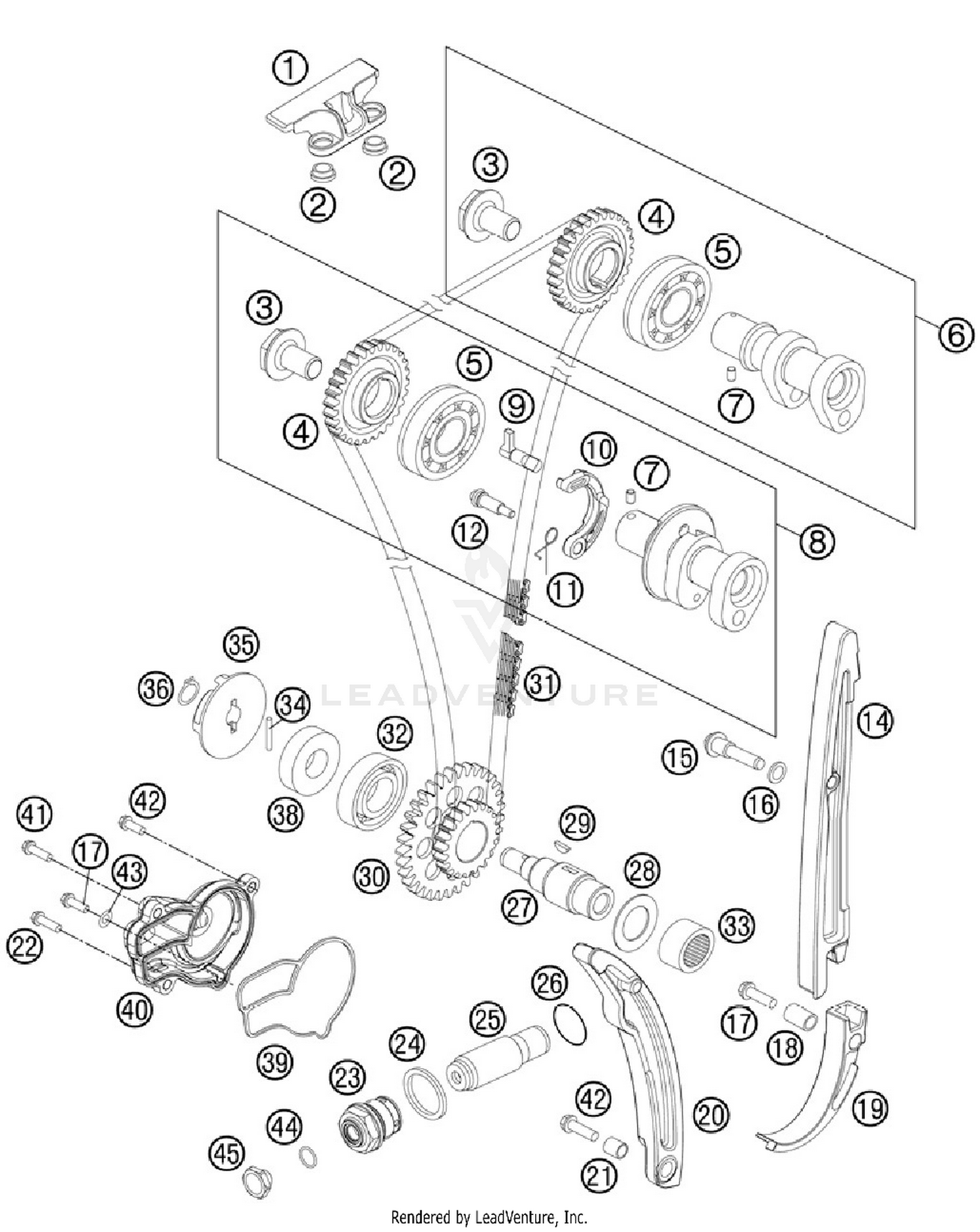

Timing Drive Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TIMING CHAIN GUIDE TOP 05
77036004000
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER BUSHING GUIDE RAIL ´05
77036004050
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAMSHAFT GEAR SCREW 08
77036012100
|
$15.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
CAMSHAFT GEAR
77036011300
|
$74.57 | ||
|
Available to order. Add to View Price |
|||
|
#5
BALL BEARING 6004 NR C3 ´05
0625060043
|
$16.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAMSHAFT INTAKE CPL.
77136009044
|
$327.57 | ||
|
Available to order. Add to View Price |
|||
|
#7
NEEDLE ROOLER DIN5402 NRB 4X6
0402040600
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAMSHAFT EXHAUST CPL.
77136010044
|
$346.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
AUTO DECOMPRESSION SHAFT
77036015100
|
$57.41 | ||
|
Available to order. Add to View Price |
|||
|
#10
AUTO DECO WEIGHT
77036016100
|
$64.12 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING FOR AUTO DECOMPR. 05
77036017000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING PIN AUTODECO
77036019100
|
$14.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
TIMING CHAIN GUIDE 05
77036001000
|
$16.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BUSHING SCREW 06
77036001160
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL RING CU DIN7603- 8X12X1
0603082121
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
HH collar screw M6x25 TX30
0025060256
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SPACER BUSHING 6,1X8,2X13,1
59036001050
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SECURING PROTECTION ´05
77036005000
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#20
TIMING CHAIN TENSIONER ´05
77036002000
|
$7.91 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SPACER BUSHING 6.1X8.2X9.1 05
77036001050
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
HH collar screw M6x40 TX30
0025060406
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
CHAIN ADJUSTER HOLDING BOLT
78036008100
|
$25.51 | ||
|
Available to order. Add to View Price |
|||
|
#24
CU SEAL-RING DIN7603 A24X29X2
0603242920
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CHAIN ADJUSTER HYD. 05
77036003000
|
$86.89 | ||
|
Available to order. Add to View Price |
|||
|
#26
o-ring 18.00x2.00 NBR70
0770180020
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
TIMING VALVE JACKSHAFT 08
77036072100
|
$45.31 | ||
|
Available to order. Add to View Price |
|||
|
#28
STOP DISK 18,2X30X1 05
77036073000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WOODRUFF KEY DIN6888-3X3,7
0888030037
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
TIMING VALVE TWIN WHEEL
77036076200
|
$142.44 | ||
|
Available to order. Add to View Price |
|||
|
#31
TIMING CHAIN 108 ROLLS
77036013100
|
$115.93 | ||
|
Available to order. Add to View Price |
|||
|
#32
BALL BEARING 6203 JR2 C3
0625062035
|
$17.04 | ||
|
Available to order. Add to View Price |
|||
|
#33
NEEDLE BEAR.HK1812 18/24/12 05
0618182412
|
$9.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
NEEDLE ROL.DIN5402 NRB 3X17,8
0402031780
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
WATER PUMP ROTOR 05
77035055000
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
CIRCLIP DIN0471-10X1
0471100010
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SHAFT SEAL RING 12X30X7 PTFE
0760123073
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#39
MOLDED RING WATER PUMP 05
77035053000
|
$8.68 | ||
|
Available to order. Add to View Price |
|||
|
#40
WATER PUMP COVER 05
77035052000
|
$47.07 | ||
|
Available to order. Add to View Price |
|||
|
#41
HH collar screw M6x35 TX30
0025060356
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
HH collar screw M6x20 TX30
0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
CU-SEAL RING DIN7603-6X10X1
0603061001
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
o-ring 10.00x1.00 NBR70
0770010010
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
HOLDING BOLT
77336008010
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
