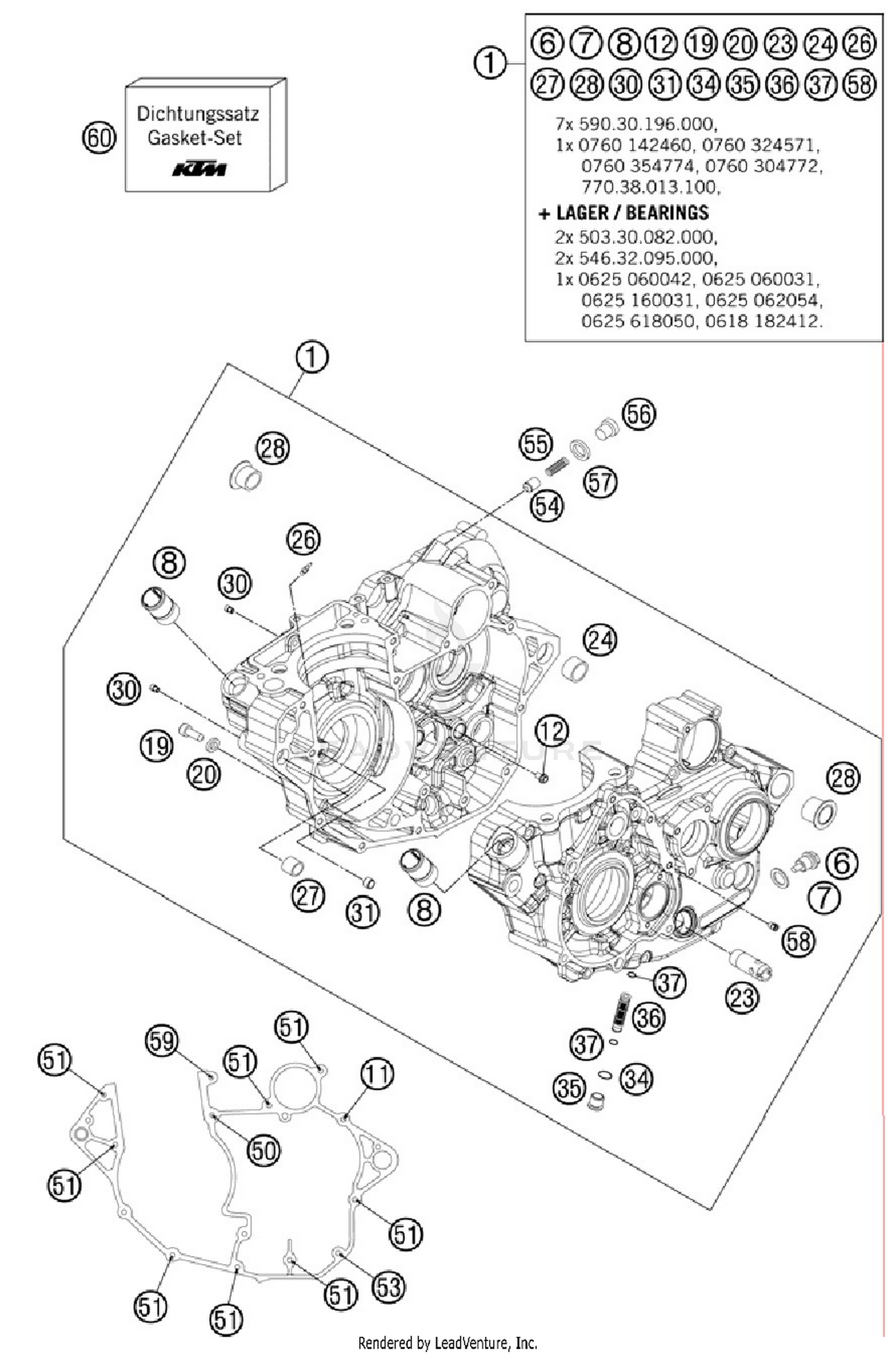

Engine Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ENGINE CASE
77130000144
Superseded by 77130000244
|
$1,397.92 | ||
|
Available to order. Add to View Price |
|||
|
#6
oildrain plug with magnet
58030021000
Superseded by 58030021100
|
$13.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CU-SEAL RING DIN7603-12X18X1,5
58038022000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SCREW IN NOZZLE M20X1,5
58030010200
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#11
HH collar screw M6x40 TX30
0025060406
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
HH collar screw M6x8 TX30
0025060086
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
LOCATING SCREW M8 L=23
58030080000
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#20
CU-SEAL RING 8 X 14 X 3
58030081000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
OIL INTAKEPIPE
77038022000
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#24
DOWEL 17 X 19 X 12
59030024000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
OIL JET 70 M6X0,75 WS8 03
60030064070
|
$13.52 | ||
|
Available to order. Add to View Price |
|||
|
#27
DOWEL BUSHING 13,8X11X12
54630027000
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#28
CASE BUSH
75030010100
|
$14.51 | ||
|
Available to order. Add to View Price |
|||
|
#30
JET 100 BING(44-031/180) M4
59030058000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
DOWEL 6X8X5,5
77130023000
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#34
O-RING 12,00X2,00 NBR 70
0770120020
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
SCREW PLUG
77038017000
|
$19.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
OIL SCREEN 11,8x44,5MM
59038015100
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING 9x1,5 V80 SH
0770090015
Superseded by 07700900151
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
HH COLLAR SCREW M6X65 TX30
0025060656
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#51
HH collar screw M6x50 TX30
0025060506
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
HH collar screw M6x30 TX30
0025060306
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#54
VALVE PISTON D=10MM
58038028000
|
$44.43 | ||
|
Available to order. Add to View Price |
|||
|
#55
PRESSURE SPRING L=25MM D=1MM
58038023300
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#56
threaded plug DIN 908 M12x1.5
0908120153
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
CU-SEAL RING DIN7603-12X18X1,5
58038022000
|
$2.99 | ||
|
Unavailable |
|||
|
#58
OIL JET ''60'' M4
80030058060
|
$13.96 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#59
HH collar screw M6x60 TX30
0025060606
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60
GASKET SET 05-11
77030099100
Superseded by 77030099101
|
$293.80 | ||
|
Available to order. Add to View Price |
|||
