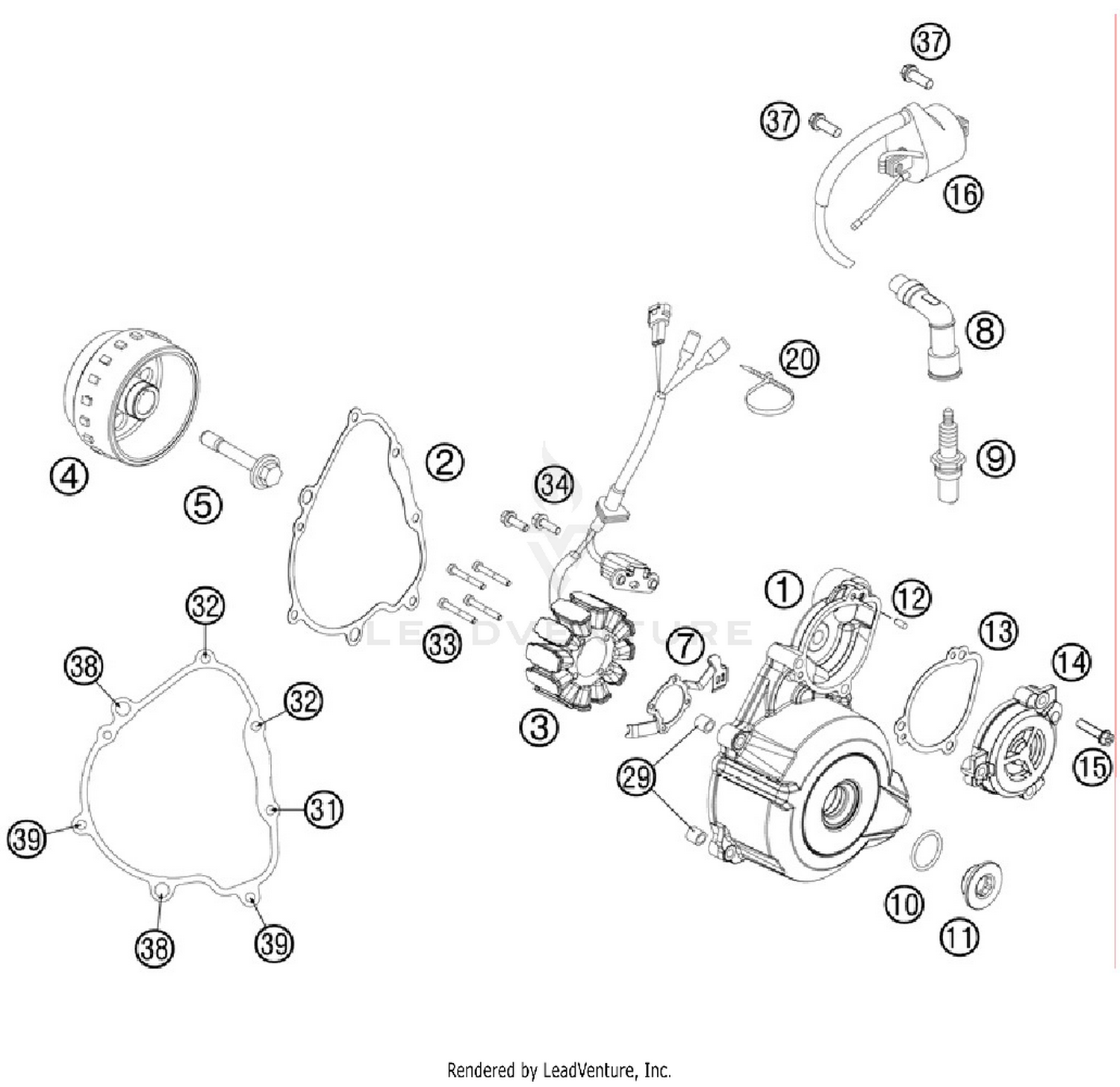

Ignition System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IGNITION COVER SX E-START
7713000200015
|
$155.31 | ||
|
Available to order. Add to View Price |
|||
|
#2
IGNITION COVER GASKET
77130040000
|
$26.39 | ||
|
Available to order. Add to View Price |
|||
|
#3
STATOR
77139004000
|
$326.91 | ||
|
Available to order. Add to View Price |
|||
|
#4
ROTOR EFI
77239005100
|
$559.32 | ||
|
Available to order. Add to View Price |
|||
|
#5
FLYWHEEL SCREW
77339010100
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#7
RETAINING PLATE
77130002050
|
$28.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPARK PLUG CONNECTOR
59039090100
Superseded by 78039090100
|
$44.19 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPARK PLUG NGK CR9EKB ´05
77039093000
|
$15.83 | ||
|
Unavailable |
|||
|
#10
o-ring 24.00x2.50 Viton
07700240251
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW PLUG M24X1,5
7723000206030
Superseded by 7723000216030
|
$43.11 | ||
|
Available to order. Add to View Price |
|||
|
#12
NEEDLE ROL.DIN5402 NRB 4X9,8
0402040980
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
GASKET TORQUE LIMITER
77240043000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER TORQUE LIMITER
7723000201015
|
$131.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HH collar screw M6x25 TX30
0025060256
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
IGNITIONCOIL IG3826 KOKUSAN'96
58439006000
|
$88.76 | ||
|
Available to order. Add to View Price |
|||
|
#20
CABLE TIE 140/2,5MM BLACK
44011076140
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
DOWEL 9,8 X7X10
49030090000
Superseded by 49030090100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
HH collar screw M6x30 TX30
0025060306
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
HH collar screw M6x50 TX30
0025060506
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
AH SCREW DIN6912 M4x30
0012040303
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
HH collar screw M5x12 TX30
0025050126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
HH collar screw M6x20 TX30
0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
HH collar screw M6x35 TX30
0025060356
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
HH COLLAR SCREW M6X90 TX30
0025060906
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
