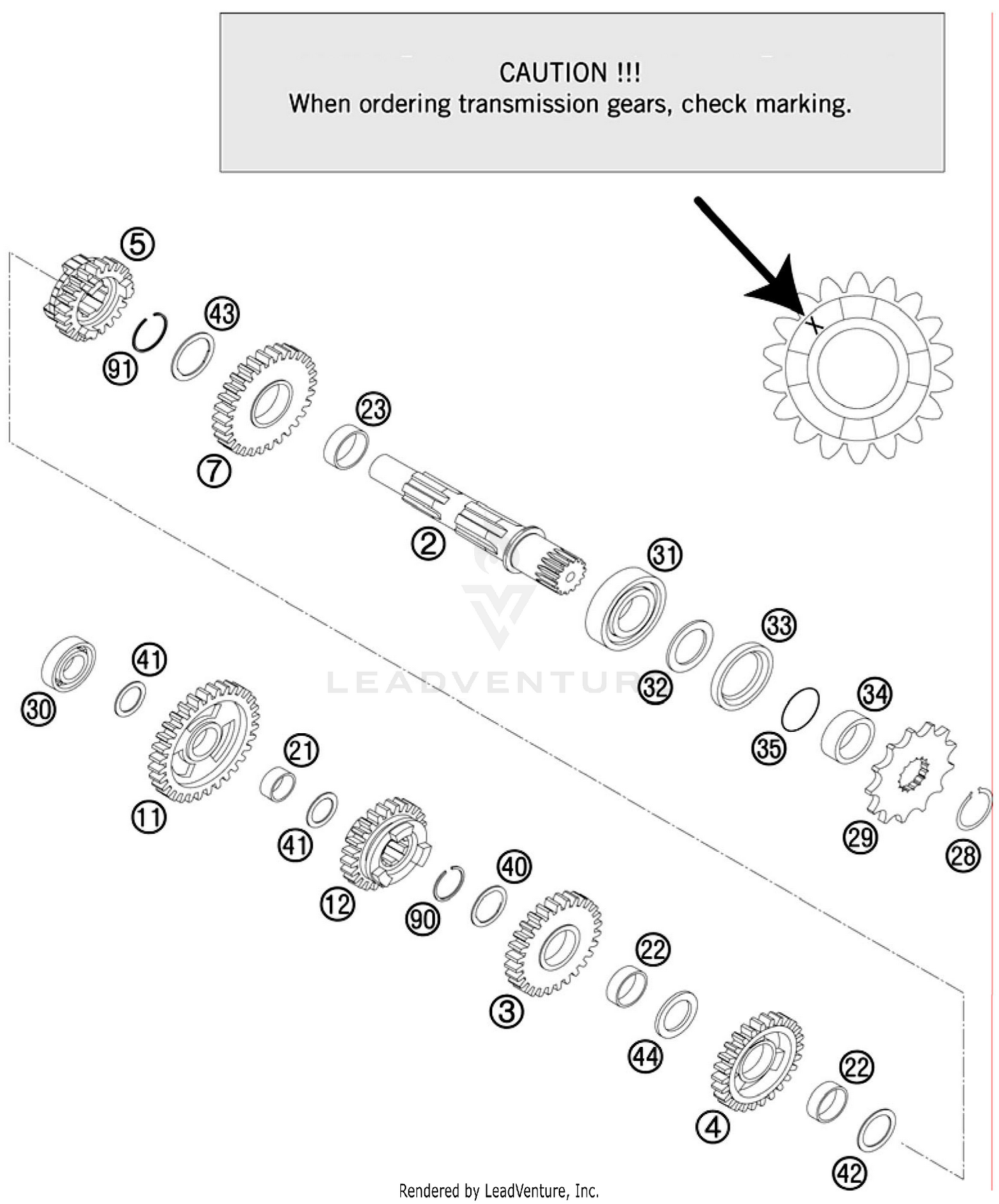

Transmission Ii - Countershaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
COUNTER SHAFT 125/200 '98
50333002000
|
$229.23 | ||
|
Available to order. Add to View Price |
|||
|
#3
IDLE G.3RD G.28-T ''3S28H'' 04
50333003100
|
$116.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
IDLE GEAR 4TH G. 4S28 SX 06
50333004100
|
$118.68 | ||
|
Available to order. Add to View Price |
|||
|
#5
SLIDING GEAR 6TH G. 6S24 SX 06
50333005600
|
$141.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
IDLER G. 2ND G. 30-T ''2S30'''98
50333006000
|
$123.63 | ||
|
Available to order. Add to View Price |
|||
|
#11
IDLER GEAR 1.G 32-T
50333011500
Superseded by 50333011600
|
$129.68 | ||
|
Available to order. Add to View Price |
|||
|
#12
SLIDING GEAR 5TH G.5S23H SX 06
50333012100
|
$137.27 | ||
|
Available to order. Add to View Price |
|||
|
#21
IDLER GEAR BUSHING 17X20X9,7 B
50333021000
|
$25.40 | ||
|
Available to order. Add to View Price |
|||
|
#22
IDLER GEAR BUSHING 22X25X8,1 C
50333022000
|
$24.85 | ||
|
Available to order. Add to View Price |
|||
|
#23
IDLER GEAR BUSHING 25X28X9,7 D
50333023000
|
$33.21 | ||
|
Available to order. Add to View Price |
|||
|
#28
LOCK RING DIN0471-25X1,64SD
52033096000
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
Front sprocket 13áteeth
50033029013
Superseded by A46033029013
|
$36.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
Front sprocket 14áteeth
50033029014
Superseded by A46033029014
|
$36.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BALL BEARING 6003 TN9 C4
0625060031
|
$27.60 | ||
|
Available to order. Add to View Price |
|||
|
#31
BALL BEARING 6205 TN9 C3
0625062058
|
$38.27 | ||
|
Available to order. Add to View Price |
|||
|
#32
STOP RING
56033020000
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#33
SHAFT SEAL RING 32X45X7 BSLNBR
0760324571
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
SPACER BUSHING 12MM
54633014100
|
$24.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
O-RING 23,00X2,00 NBR70
0770230020
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
STOP DISC 22,2X27,8X1 A
50333040000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#41
STOP DISC 17,2X26X1 B
50333041000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
STOP DISK 22,2X28X1 C
50333042000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#43
Stop disk
50333043000
Superseded by 79333043000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
STOP DISC 22,2X30X2,5
50333044000
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#90
LOCK RING 22X1,2
50133090000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#91
CIRCLIP SW25
52033090100
Superseded by 0417025000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
