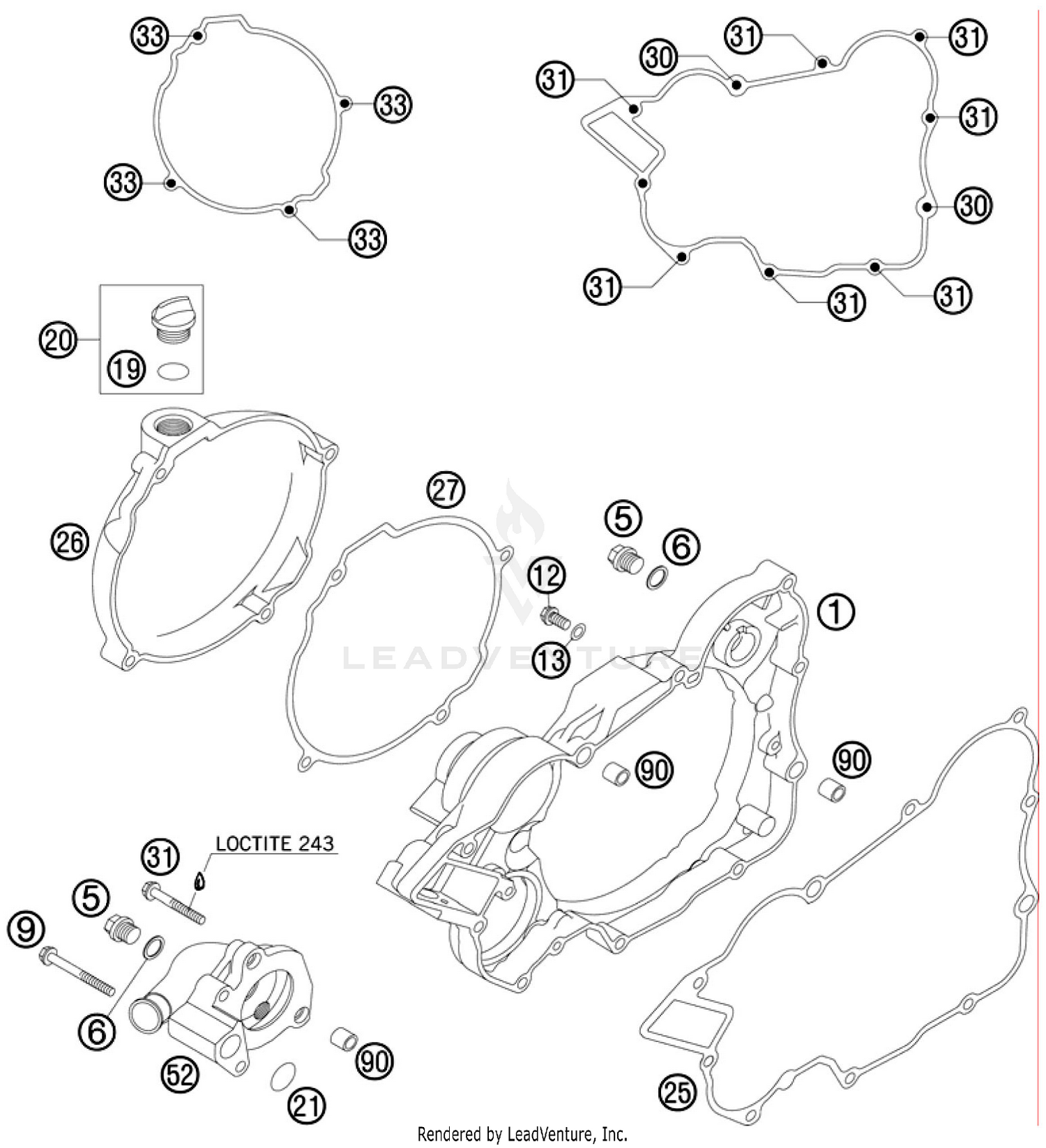

Clutch Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH COVER CPL. 125/200 09
5033000114415
|
$235.06 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG DIN0910-M 10X1
0910100003
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
sealing ring DIN 7603 10x14x1
0603100141
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
HH collar screw M6x50 TX30
0025060506
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
HH collar screw M6x12 TX30
0025060126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CU-SEAL RING DIN7603-6X10X1
0603061001
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
O-RING 19,00X3,00 NBR
0770191015
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
OIL FILLER CAP M24x3 WITH O-R
58030120000
Superseded by 79430020033
|
$9.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
O-RING 16,00X3,00 NBR 70
0770160030
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
CLUTCH COVER GASKET 0,5MM
50330025000
|
$17.81 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLUTCH OUTSIDE COVER
5033002610015
|
$96.68 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLUTCH OUTS.COVER GASKET 1MM
50330027000
|
$17.15 | ||
|
Available to order. Add to View Price |
|||
|
#30
HH collar screw M6x40 TX30
0025060406
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
HH collar screw M6x35 TX30
0025060356
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
HH collar screw M6x30 TX30
0025060306
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#52
WATERPUMP COVER 125/200 98
50335052000
Superseded by 50335052033
|
$98.66 | ||
|
Available to order. Add to View Price |
|||
|
#90
DOWEL 9,8 X7X10
49030090000
Superseded by 49030090100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
