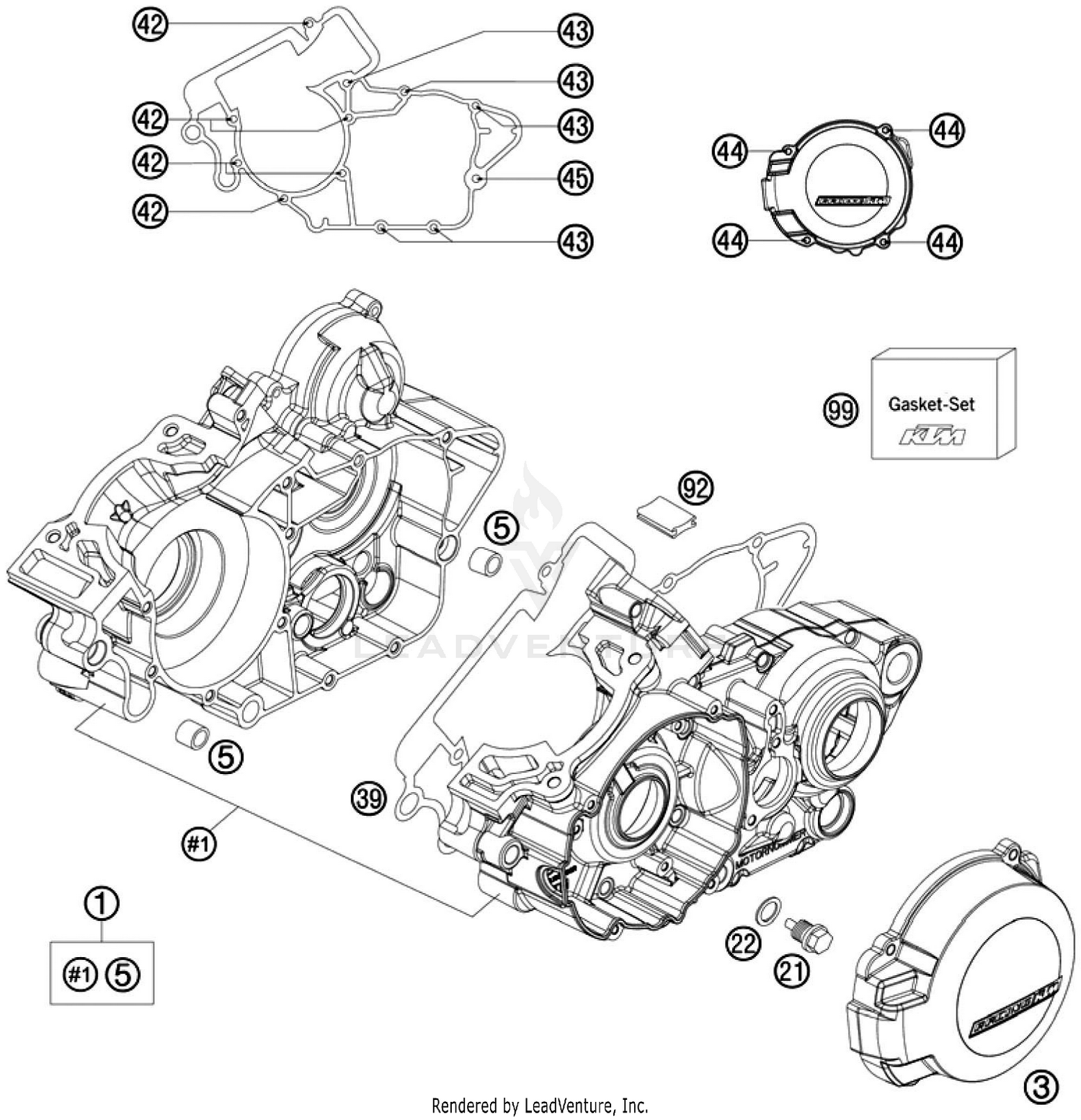

Engine Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ENGINE CASE CPL W.TRAN.BEAR.07
51530000044
|
$938.39 | ||
|
Available to order. Add to View Price |
|||
|
#3
IGNITION COVER
50330002400
|
$43.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
DOWEL BUSHING 13,8X11X12
54630027000
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#21
oildrain plug with magnet
58030021000
Superseded by 58030021100
|
$13.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
CU-SEAL RING DIN7603-12X18X1,5
58038022000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
ENGINE CASE GASKET 0,5MM '98
50330039000
|
$19.02 | ||
|
Available to order. Add to View Price |
|||
|
#42
HH collar screw M6x50 TX30
0025060506
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
HH collar screw M6x55 TX30
0025060556
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
HH COLLAR SCREW M 5X16 WS=6
0014050163
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
HH collar screw M6x60 TX30
0025060606
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92
OIL GUARD GROMMET 25X31 '98
50330092000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#99
GASKET SET
50330099200
Superseded by 50330099201
|
$326.03 | ||
|
Available to order. Add to View Price |
|||
