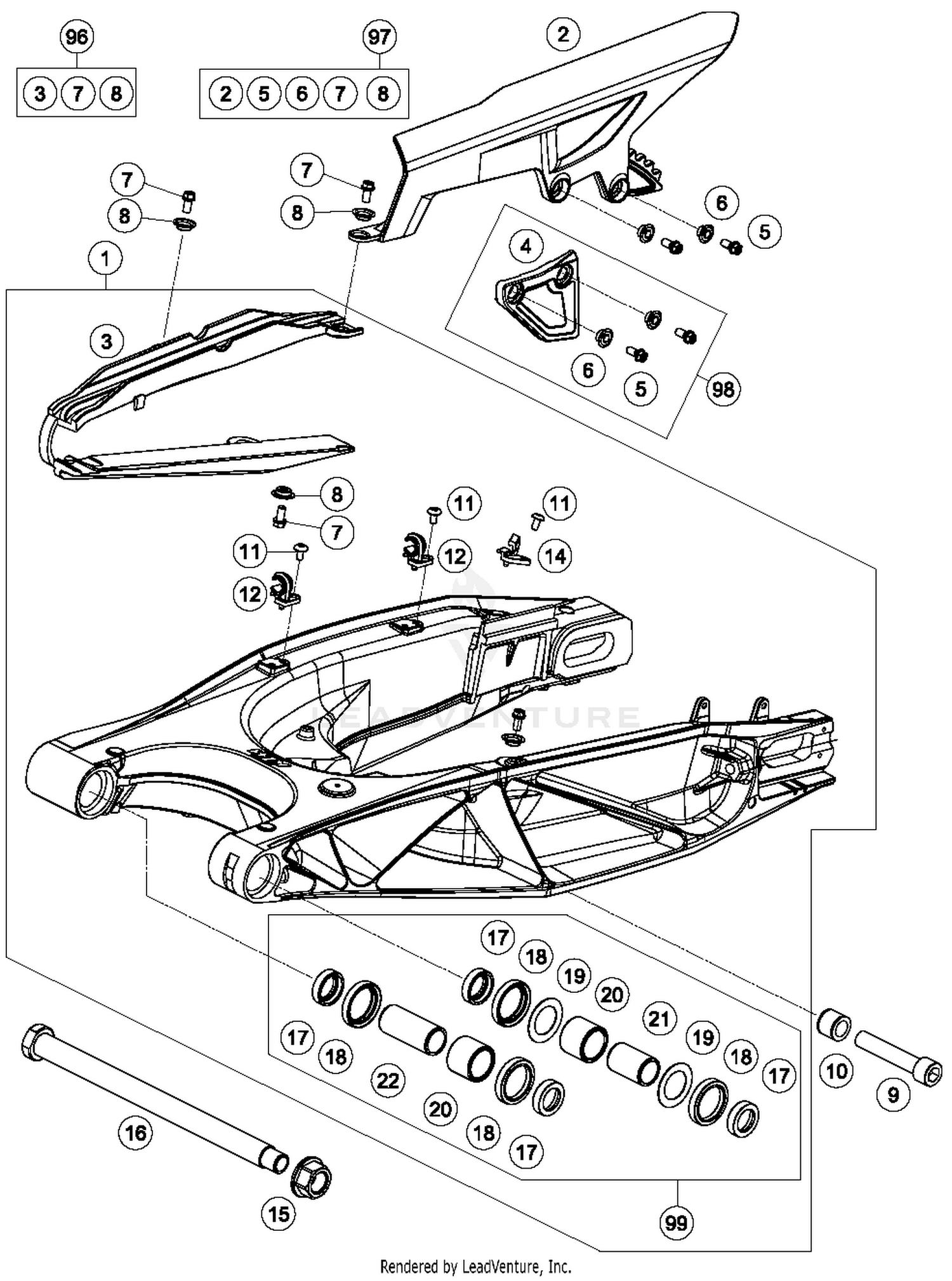

Swing Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWING ARM CPL. ADV. 17
6030403004433
Superseded by 6070403004433
|
$939.17 | ||
|
Available to order. Add to View Price |
|||
|
#2
CHAIN GUARD
60304061000
|
$38.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
CHAIN SLIDING GUARD
60304066000
|
$43.44 | ||
|
Available to order. Add to View Price |
|||
|
#4
CHAIN GUIDE
60304070000
|
$19.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
HH collar screw M6x16 TX30
0025060166
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BUSH FOR SPOILER 6X11X16X7,5
50308053000
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#7
HH collar screw M5x10 TX30
0025050106
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH FOR CHAINSLIDER GUARD 02
46104066050
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW M14X1,5 L=73MM 03
60004017000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSHING MONOSHOCK SOCKET 05
60004030151
|
$18.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW TORX M5X10
78105081010
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
RET. CLAMP F. BRAKE HOSE
60104042000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CABLE SUPPORT SWING ARM 06
60142026000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR NUT M19X1,5 SW=27MM
60004038000
Superseded by 60004038200
|
$21.11 | ||
|
Available to order. Add to View Price |
|||
|
#16
Swingarm pivot
69004037144
Superseded by 69004037344
|
$86.78 | ||
|
Available to order. Add to View Price |
|||
|
#17
BUCKET F. SHAFT SEAL RING 03
60004034000
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHAFT SEAL RING 30X40X7
0760304073
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
STOP DISK 03
60004033000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NEEDLE BUSH HK2526B 03
60004031000
|
$12.53 | ||
|
Available to order. Add to View Price |
|||
|
#21
INNER RING JR20X25X38,5 03
60004032000
|
$21.33 | ||
|
Available to order. Add to View Price |
|||
|
#22
INNER RING JR 20X25X56,5
69004032000
|
$42.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPECIAL SCREW M6X16 WS=8 10.9
59009062016
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#96
CHAIN GUARD KIT 13-14
60304066010
|
$60.71 | ||
|
Available to order. Add to View Price |
|||
|
#97
CHAIN PROTECTION KIT 13-14
60304060010
|
$70.61 | ||
|
Available to order. Add to View Price |
|||
|
#98
CHAIN GUIDE KIT 1190 ADV
60304070010
|
$36.18 | ||
|
Available to order. Add to View Price |
|||
|
#99
SWING ARM REP. KIT 08-14
69004230010
|
$113.29 | ||
|
Available to order. Add to View Price |
|||
