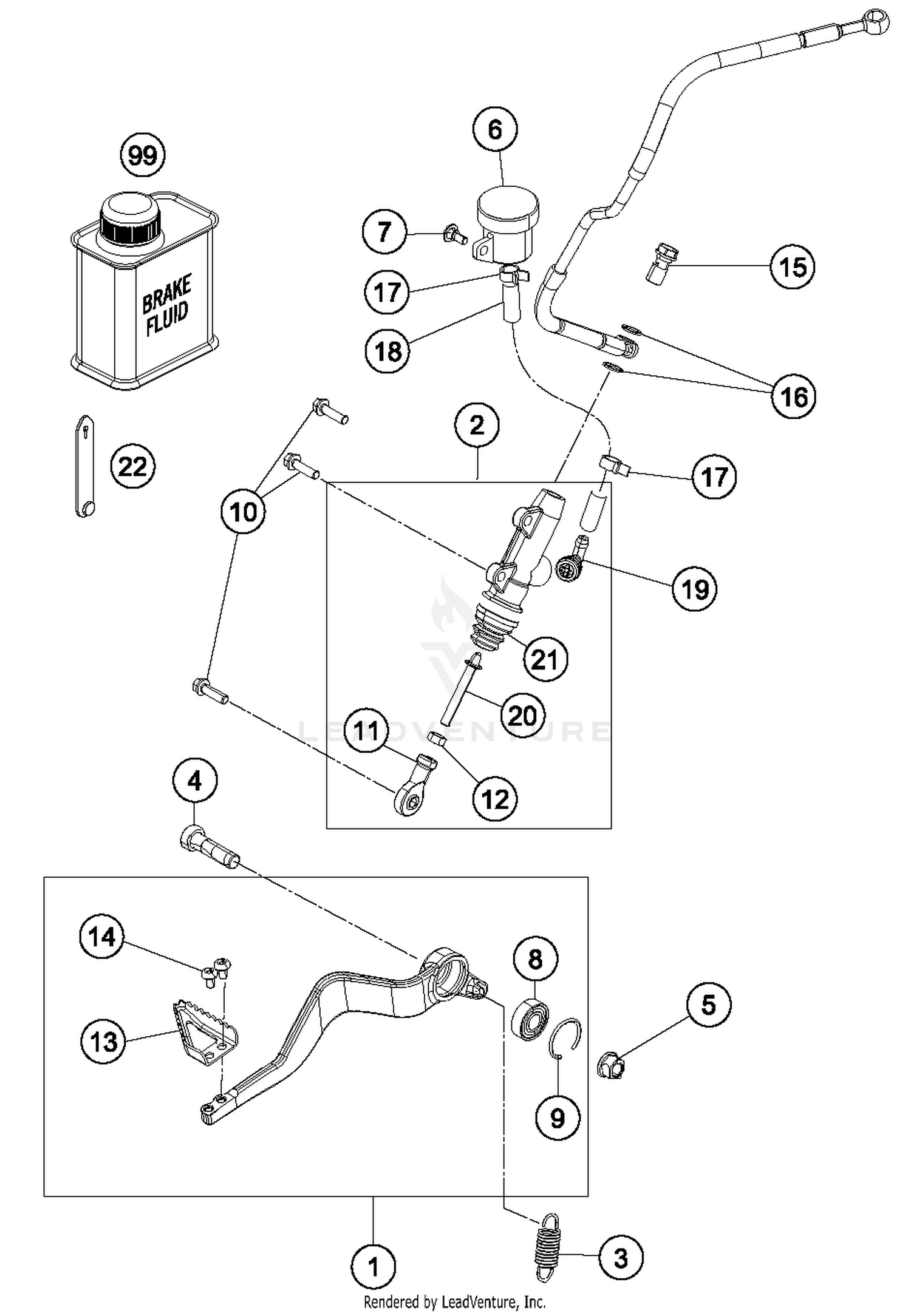

Rear Brake Control Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FOOT BRAKE LEVER KPL.
6031305004433S
|
$140.57 | ||
|
Available to order. Add to View Price |
|||
|
#2
REAR BRAKE CONTROL
6031306000030
|
$270.48 | ||
|
Available to order. Add to View Price |
|||
|
#3
Return spring for brake lever
54603062000
Superseded by 54603062200
|
$7.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
AH-COLLAR SCREW M10X35 ISA45
0032100356S
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Collar nut M10-SW13 ZnNi
54630044000
Superseded by 55530044000
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BRAKE FLUID RESERVOIR '89
54513030044
|
$24.19 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW F. EXPANSION TANK
69013099050
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
deep groove ball bearing SKF 6000-2RS1
0625060002
|
$14.51 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
round wire snap ring DIN 7993 B - 26
0993026500
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HH collar screw M6x20 TX30
0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SWIVEL HEAD M6 FOOT BRAKE LEV.
54603069000
|
$43.77 | ||
|
Available to order. Add to View Price |
|||
|
#12
hex nut DIN 934 M6
0934060003
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
STEP PLATE FOOT BRAKE LEVER
60313051000
|
$19.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW TORX M5X10 05
58605083010
|
$2.99 | ||
|
Unavailable |
|||
|
#15
banjo bolt M10x1x19.5
62113020100
|
$10.33 | ||
|
Available to order. Add to View Price |
|||
|
#16
sealing ring DIN 7603 10x14x1
0603100141
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
YDNAC CLAMP 10101 (10,4MM)
58007017000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
Hose reservoir 6x1,5
69013069001
Superseded by 57313072001
|
$19.24 | ||
|
Available to order. Add to View Price |
|||
|
#19
ANGLE PIECE
54513155000
|
$17.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
PUSH ROD CPL.
60313056044
|
$82.27 | ||
|
Available to order. Add to View Price |
|||
|
#21
RUBBER SLEEVE
54513151000
|
$20.56 | ||
|
Available to order. Add to View Price |
|||
|
#22
RUBBER CABLE TIE 45MM 03
60011093045
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#99
BRAKE FLUID DOT5.1 0,25L
00062030000
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
