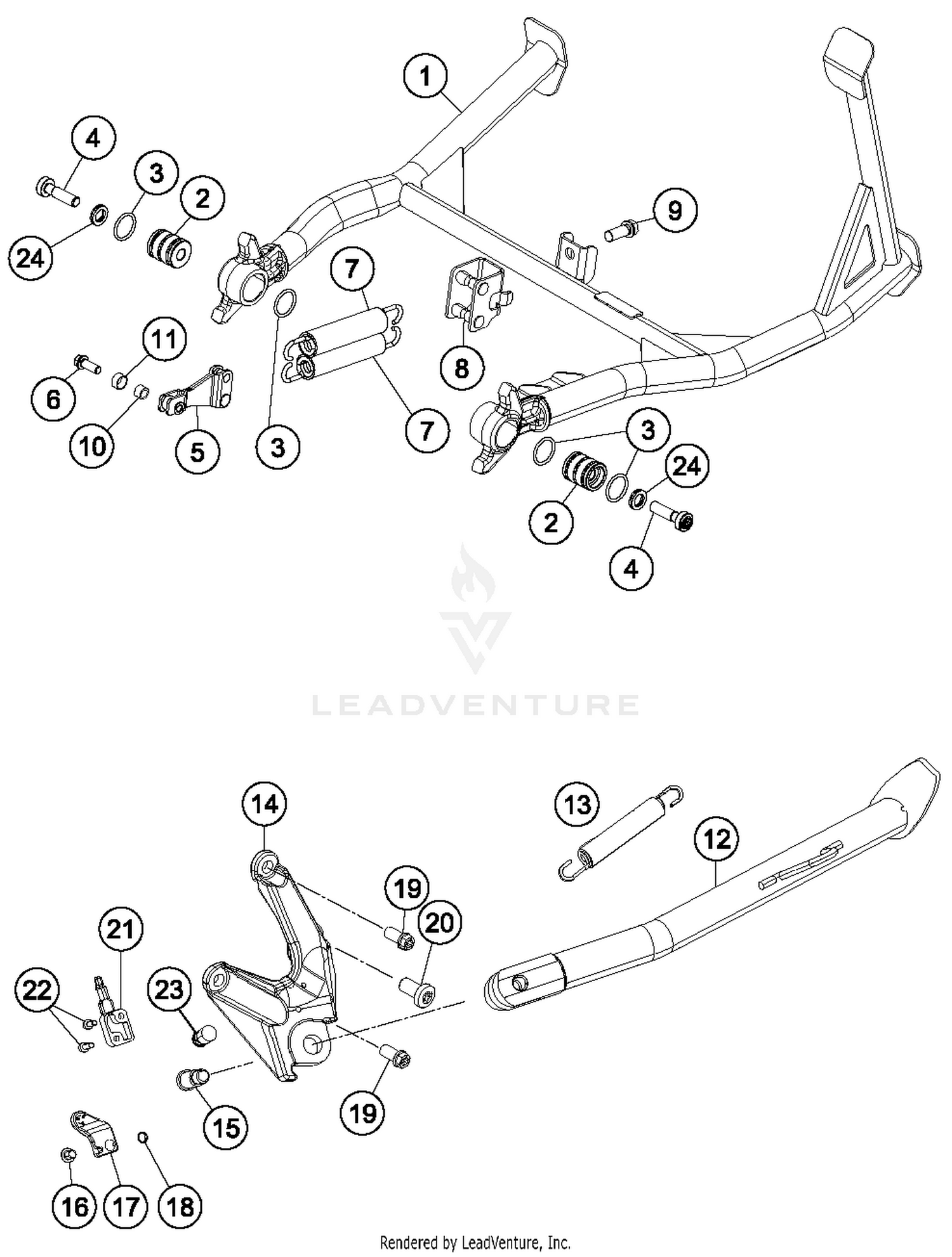

Side-center Stand Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Centre stand
6030302210030
Superseded by 60303022200C1
|
$374.21 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSHING SUPPORT CENTRAL
60303022007
|
$18.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
o-ring 18.00x2.00 NBR70
0770180020
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
SCREW M8X35 ISA45 SS
0035080356S
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING SUPPORT FRONT CPL.
60303022025
|
$61.81 | ||
|
Available to order. Add to View Price |
|||
|
#6
HH collar screw M6x16 TX30
0025060166
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
SIDESTAND SPRING L=118MM
60303030100
|
$39.59 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING SUPPORT REAR CPL.
60303022026
|
$61.59 | ||
|
Available to order. Add to View Price |
|||
|
#9
HH collar screw M8x20
0025080206
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSHING SPRINGSUPPORT FRONT
60303022031
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSHING SPRING SUPPORT FRONT
60303022032
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
Side stand cmpl.
6030302310030
Superseded by 60303023200C1
|
$281.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
SIDE STAND SPRING
60303024100
|
$47.73 | ||
|
Available to order. Add to View Price |
|||
|
#14
SIDE STAND BRACKET
6030302610033S
|
$147.83 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW FOR SIDE STAND M10X31,2
62503027200
|
$7.91 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
AH OVAL SCREW ISO 7380 M 6X8
0902060083
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
MAGNET HOLDER
60303029050
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#18
Bushing, magnet bracket
60303029051
Superseded by 0800000600303
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HH COLLAR SCREW M8X16 TX40
0025080166
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
AH-COLLAR SCREW M10X20 ISA45
0035100209
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#21
SIDE STAND SENSOR 05
61011045000
|
$70.17 | ||
|
Available to order. Add to View Price |
|||
|
#22
CYL.HEAD SCREW DIN84A M4x12
0084040123
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
RETAINING BOLT
60303023111
|
$15.72 | ||
|
Available to order. Add to View Price |
|||
|
#24
NORDLOCK WASHERS M8
60303022035
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
