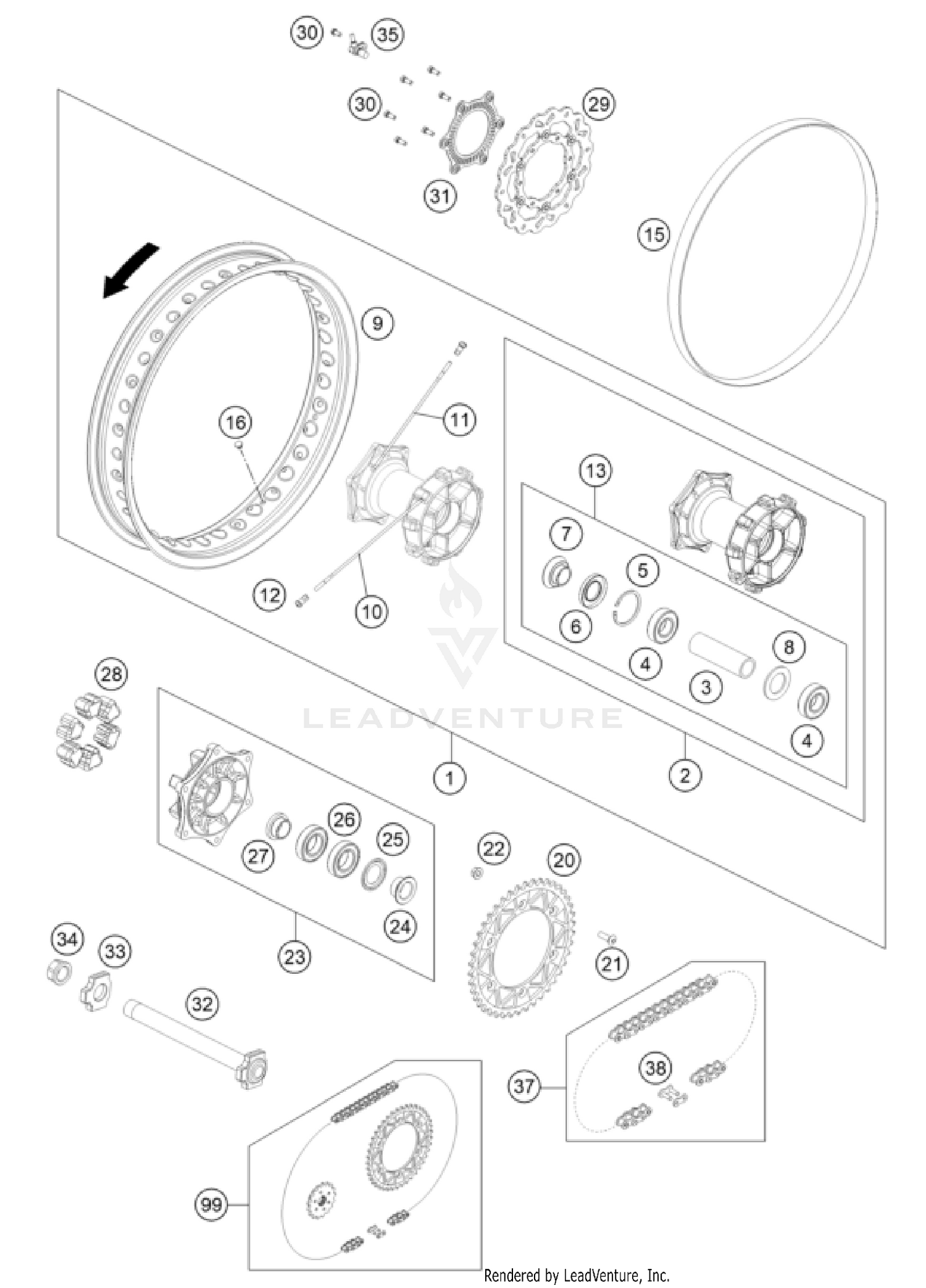

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR WHEEL CPL. 2,50X18'' 16
7651010104430
|
$986.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
REAR WHEEL HUB CPL.
7531001004491
|
$356.83 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING SPACER TUBE L=106MM 07
75310011000
|
$25.18 | ||
|
Available to order. Add to View Price |
|||
|
#4
GR.BALL BEAR. 6205-2RSHC3HMTF7
0625062052
|
$36.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP DIN0472-52X2
0472052200
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT SEAL RING 30X52X7
0760305271
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER BUSH. REAR WHEEL R/S 06
60110013000
|
$27.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER RING 03
60010015000
|
$12.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
RIM 2,50X18'' DID BLACK 08
7651007000030
|
$373.77 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPOKE M5X217 -17G 18'' INOX
75310073217
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPOKE M5X207-27G 18'' INOX
75310173207
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Spoke nipple Quadrax M5
60310072100
Superseded by 60310072200
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
REAR WHEEL REP. KIT
75010015000
|
$97.56 | ||
|
Available to order. Add to View Price |
|||
|
#15
RIM BAND REAR 2MM 2003
58410073200
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG FOR RIM
55003135000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SPROCKET T=46 STEEL
75010051046
|
$78.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPROCKET STEALTH 42T 07
75010051042
|
$82.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COUNTER-SUNK SCREW ISA45 M8X26
0019080266S
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
hex nut EN 1661 M8 WS13
06923080003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SPROCKET SUPPORT CPL. SILVER
7501005004491
|
$257.72 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPACER BUSH. SPROCKET SUPP. 06
60110012000
|
$23.64 | ||
|
Available to order. Add to View Price |
|||
|
#25
NILOS RING 6006AV
60110016000
|
$11.43 | ||
|
Available to order. Add to View Price |
|||
|
#26
BALL BEARING 6006 DDU2CG23S6NM
0625060060
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPACER BUSH. SPR. SUPP. IN. 06
60110014000
|
$20.45 | ||
|
Available to order. Add to View Price |
|||
|
#28
RUBBER DAMPING BLOCK '91
54610459000
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#29
BRAKE DISK REAR D=240MM
27010060000
|
$293.25 | ||
|
Available to order. Add to View Price |
|||
|
#30
SHCS ISO 14580 M6x16 SL
014580060166S
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SENSOR WHEEL ABS REAR
76542021000
|
$40.80 | ||
|
Available to order. Add to View Price |
|||
|
#32
WHEEL SPINDLE CPL.
75310085144
|
$92.83 | ||
|
Available to order. Add to View Price |
|||
|
#33
CHAIN TENSIONER R/S LC8 03
60010084000
|
$26.83 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR NUT WH. SPINDLE REAR 03
60010086000
|
$17.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
ABS-SENSOR
76042125000
|
$223.51 | ||
|
Available to order. Add to View Price |
|||
|
#37
chain DID 118 roll
76910065118
|
$151.57 | ||
|
Available to order. Add to View Price |
|||
|
#38
Rivet link chain DID 520 VP2-T
76910066000
|
$23.53 | ||
|
Available to order. Add to View Price |
|||
|
#99
Drivetrain set ST 15T/46T
00050002090
Superseded by SPA215G463M118B
|
$279.99 | ||
|
Available to order. Add to View Price |
|||
