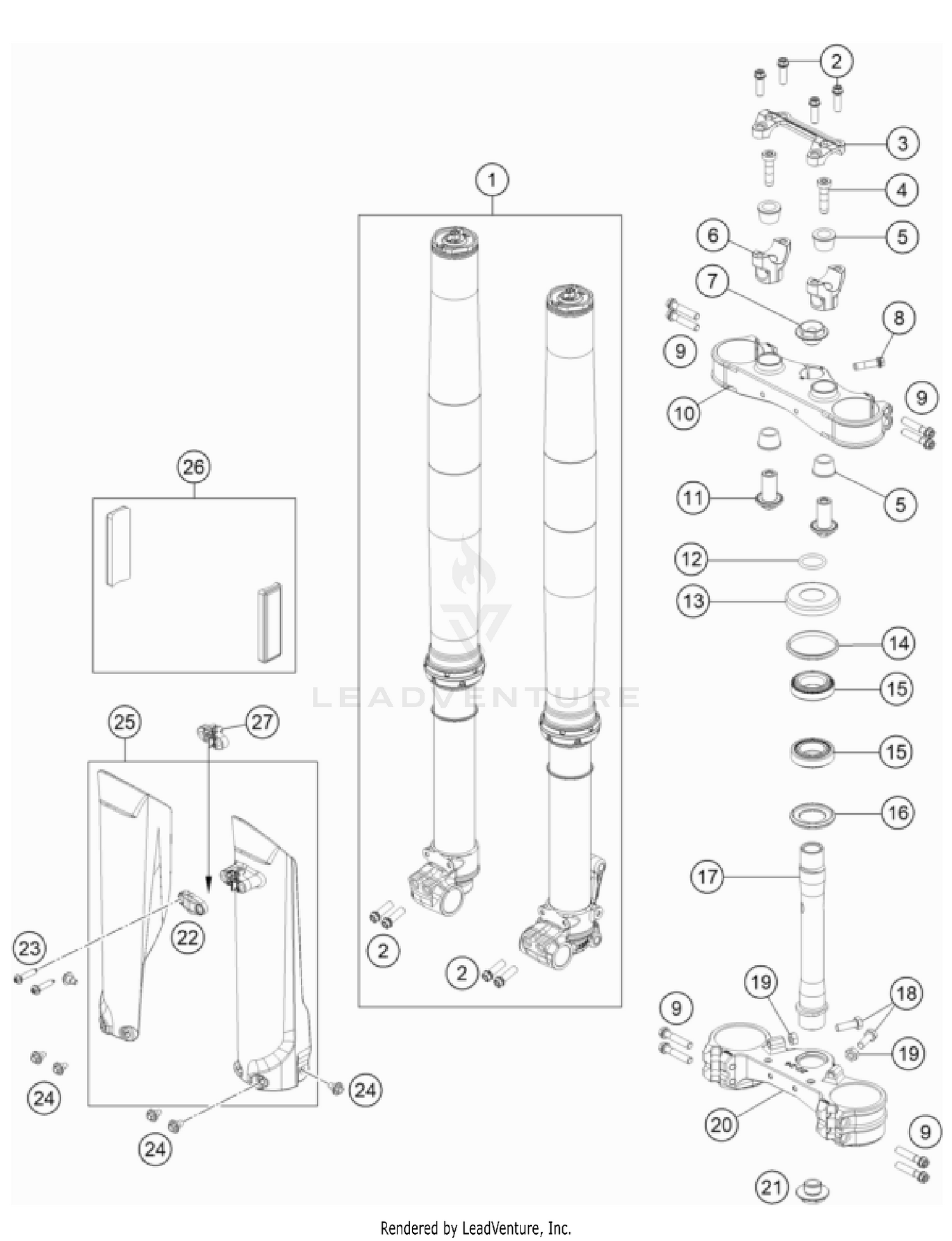

Front Fork, Triple Clamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Fork KTM 690 Enduro R 19
14188S1001
|
$3,489.52 | ||
|
Available to order. Add to View Price |
|||
|
#2
HH collar screw M8x25
0025080256
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
Handlebar clamp 28mm
79001038000C1
|
$68.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
AH-COLLAR SCREW M10X35 ISA45
0032100356S
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
RUBBER BUSH
83001040000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
Handlebar receptive D28mm-H36mm
79001039236C1
|
$45.97 | ||
|
Available to order. Add to View Price |
|||
|
#7
Steering head screw M20x1.5 SW=27
54801036000C1
Superseded by 54801036300C1
|
$17.81 | ||
|
Unavailable |
|||
|
#8
HH collar screw M8x30
0025080306
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
HH COLLAR SCREW M8X40 TX40
0025080406
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#10
Upper triple clamp 22-24 offset
27001134223C1
|
$375.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
HANDLEBAR SUPPORT LOWER PART
79001037034
|
$71.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING 25X3,55 NBR70 05
0770025035
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
STEERING HEAD COVER
78101086000
|
$7.14 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
STEARING HEAD GASKET TOP
54601184000
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
TAPERED ROLLER BEARING CPL. 06
54201081100
|
$60.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING SUPPORT W. SEALING LIP
77701084000
|
$22.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
Excentric head tube
76501033200
|
$141.67 | ||
|
Available to order. Add to View Price |
|||
|
#18
HH SCREW DIN0933-M 8X25
0933080253
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HEXAGON NUT DIN0934-M 8
0934080003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Lower triple clamp 22-24 offset
27001131123C1
|
$457.59 | ||
|
Available to order. Add to View Price |
|||
|
#21
STE.HEAD SCR. M20X1,5 WS=27 SL
54801036100
|
$17.26 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
Clamp for brake hose
77701085100C1
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPECIAL SCREW K60X30 WS=6
0017060305
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPECIAL SCREW M6X12,5 WS=8
59001092050
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
Fork protection kit 690 Enduro 21
77701094100C1F
|
$97.01 | ||
|
Available to order. Add to View Price |
|||
|
#26
REFLECTOR YELLOW ''CEV''
58412080300
|
$9.12 | ||
|
Available to order. Add to View Price |
|||
|
#27
Spacer, brake line clamping
76901085050C1
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
