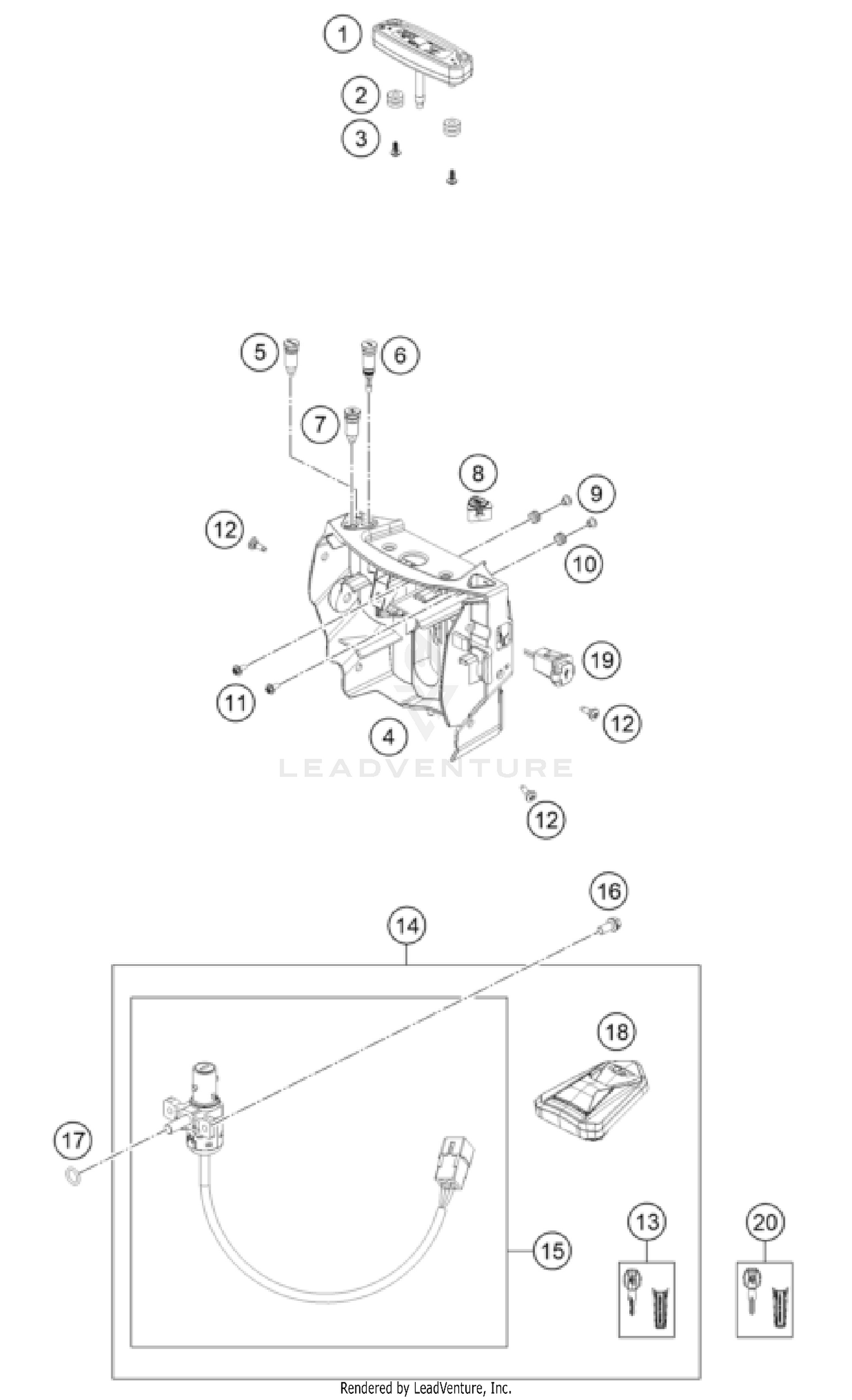

Instruments / Lock System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Dashboard
27014069200
Superseded by 27014069300
|
$317.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
rubber grommet 16x10.8x3
58214069051
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
EJOT DELTA PT SCREW 45X12-Z
0081645121
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Combination instrument, bracket
76914060000
|
$50.04 | ||
|
Available to order. Add to View Price |
|||
|
#5
FLASHER CONTROL LIGHT
27014081000
|
$35.52 | ||
|
Available to order. Add to View Price |
|||
|
#6
Oil pressure warning indicator
76914082000
|
$46.41 | ||
|
Available to order. Add to View Price |
|||
|
#7
neutral led pilot assembly
27014083000
|
$32.44 | ||
|
Available to order. Add to View Price |
|||
|
#8
SWITCH ABS
60142070100
|
$92.39 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR BUSHING 6,1X8,1X14X8 07
75014010050
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
rubber grommet D=8mm open
31008060000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
HH collar screw M6x15 TX30
0024060156
|
$3.99 | ||
|
Unavailable |
|||
|
#12
special screw M5x12
69008021160
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
KTM ignition key
76911067000
|
$153.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
Lock kit cmpl.
76911066044
|
$268.17 | ||
|
Available to order. Add to View Price |
|||
|
#15
Ignition Switch with key
27011066100
|
$188.64 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPECIAL SCREW M6X13 WS=8 10.9
59009062013
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
o-ring 10.00x2.00 silicone
0770100020
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Fuel tank cap
76907008000
|
$307.22 | ||
|
Available to order. Add to View Price |
|||
|
#19
USB power socket 12 V
64111043000
|
$56.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
Ignition lock
76911067010
|
$18.91 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
