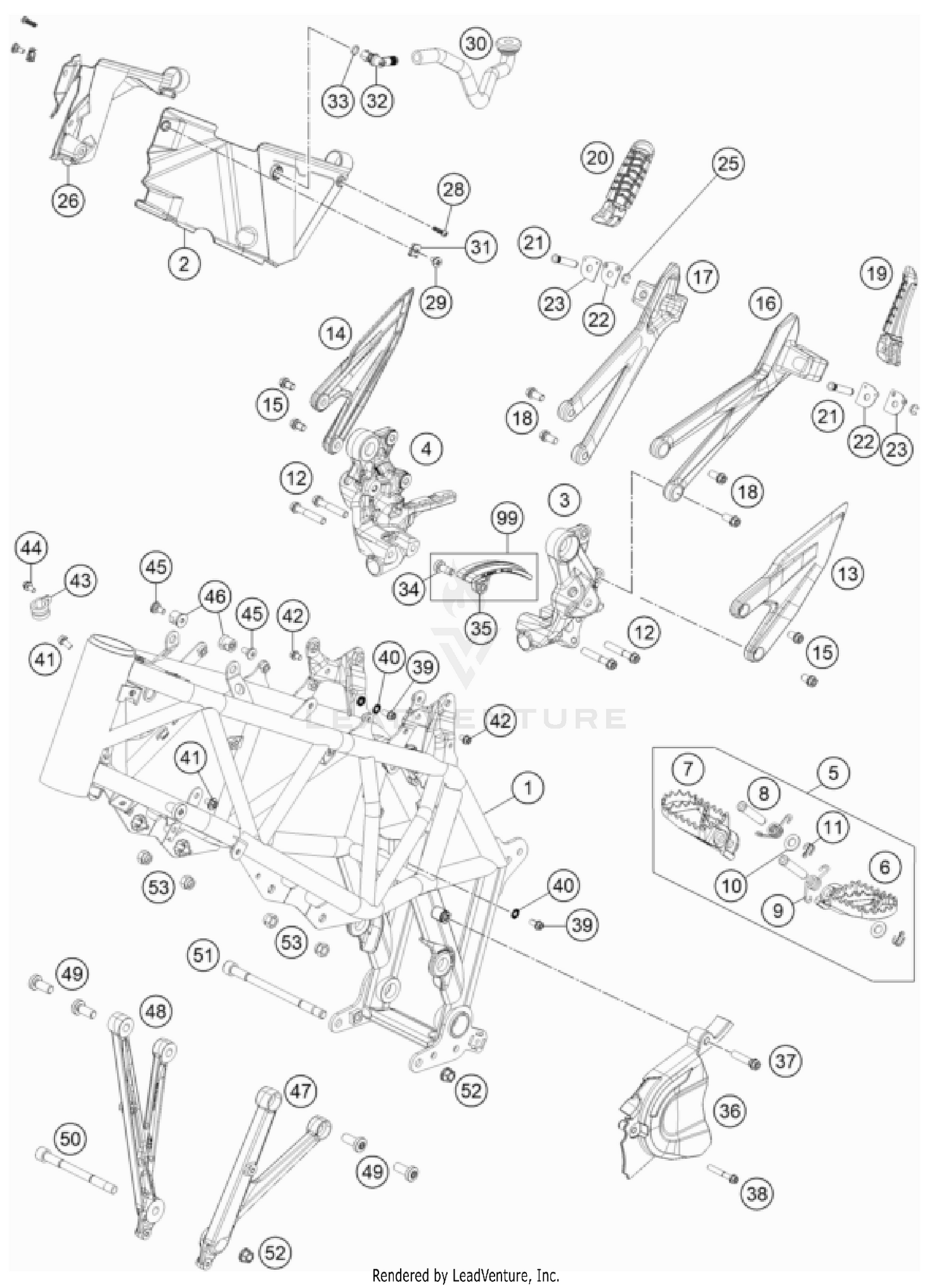

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Frame 769 el. orange
76903001000EB
|
$2,410.86 | ||
|
Available to order. Add to View Price |
|||
|
#2
Frame cover left
76903092000
|
$40.91 | ||
|
Available to order. Add to View Price |
|||
|
#3
Front footpeg bracket left cmpl.
7690303804401
|
$222.19 | ||
|
Available to order. Add to View Price |
|||
|
#4
Footpeg bracket right cmpl.
7690303904401
|
$333.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
FOOTREST L/S + R/S CPL. 09
78003040033
|
$136.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
FOOTREST L/S 08
78003040050
|
$51.36 | ||
|
Available to order. Add to View Price |
|||
|
#7
FOOTREST R/S 08
78003041050
|
$51.36 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
FOOTREST SPRING L/S & R/S
54603041000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
washer DIN 125 A 10.5
0125100003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PIN DIN 0094-3.2X25 NIRO
0094032253
Superseded by 0094032250
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
HH collar screw M8x45 TX40
0025080456
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Heel protector, left
76903038050
|
$30.13 | ||
|
Available to order. Add to View Price |
|||
|
#14
Heel protector, right
76903039050
|
$30.13 | ||
|
Available to order. Add to View Price |
|||
|
#15
HH collar screw M8x12 TX40
0025080126
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Rear footpeg bracket left
7690304800001
|
$141.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
Rear footpeg bracket right
7690304900001
|
$141.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
HH COLLAR SCREW M8X16 TX40
0025080166
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
FOOTREST CPL. L/S REAR 03
60003050000
|
$72.26 | ||
|
Available to order. Add to View Price |
|||
|
#20
FOOTREST CPL. R/S REAR 03
60003051000
|
$72.81 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT FOR FOOTREST REAR 03
60003044000
|
$10.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
ENGAGE PANEL FOOTREST L/S 03
60003152000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#23
ENGAGE PANEL FOOTREST R/S 03
60003052000
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
retaining washer DIN 6799 - 6
0799060003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
Frame cover right
76903086000
|
$25.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW FOR PLASTIC 50X18 T20
0081250181
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
special screw M5x12
69008021160
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
oil separator vent
76930088030
|
$31.45 | ||
|
Available to order. Add to View Price |
|||
|
#31
clip nut M5
69008021080
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
ANGLE CONNECTOR LC8 03
60038082000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
O-RING 8X2 SILICONE
0770080020
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
SHCS M8x20 TX45
0035080206S
|
$6.26 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
CHAIN SLID. GUARD 08
76504067000
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#36
CHAIN GUARD CPL. 08
76530060044
|
$15.39 | ||
|
Available to order. Add to View Price |
|||
|
#37
HH collar screw M8x35 TX40
0025080356
|
$4.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
HH collar screw M6x40 TX30
0025060406
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
HH collar screw M6x12 TX30
0025060126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
CONTACT WASHER M6 VSV-K6
58411098100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
HH COLLAR SCREW M6X10 TX30
0024060106
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
HH collar screw M6x8 TX30
0025060086
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLAMP RSGU 15/12
49007439000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#44
HH collar screw M5x12 TX30
0025050126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
special screw M6x14
69008021040
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
Seat holder
76907026000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#47
ENGINE SUPPORT L/S BLACK
7650300500033
|
$136.17 | ||
|
Available to order. Add to View Price |
|||
|
#48
ENGINE SUPPORT R/S BLACK
7650300600033
|
$140.13 | ||
|
Available to order. Add to View Price |
|||
|
#49
SHCS M10x24 TX45
0035100249
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
SPECIAL SCREW M10X115 ISK8 07
75003015000
|
$8.68 | ||
|
Available to order. Add to View Price |
|||
|
#51
SPECIAL SCREW M10X152 ISK8 07
75003014000
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#52
Collar nut M10-SW13 ZnNi
54630044000
Superseded by 55530044000
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#53
SELF LOCKING NUT M10 CU WS=14
54310086100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#99
CHAIN SLIDING BELOW 08-13
76504067010
|
$22.54 | ||
|
Available to order. Add to View Price |
|||
