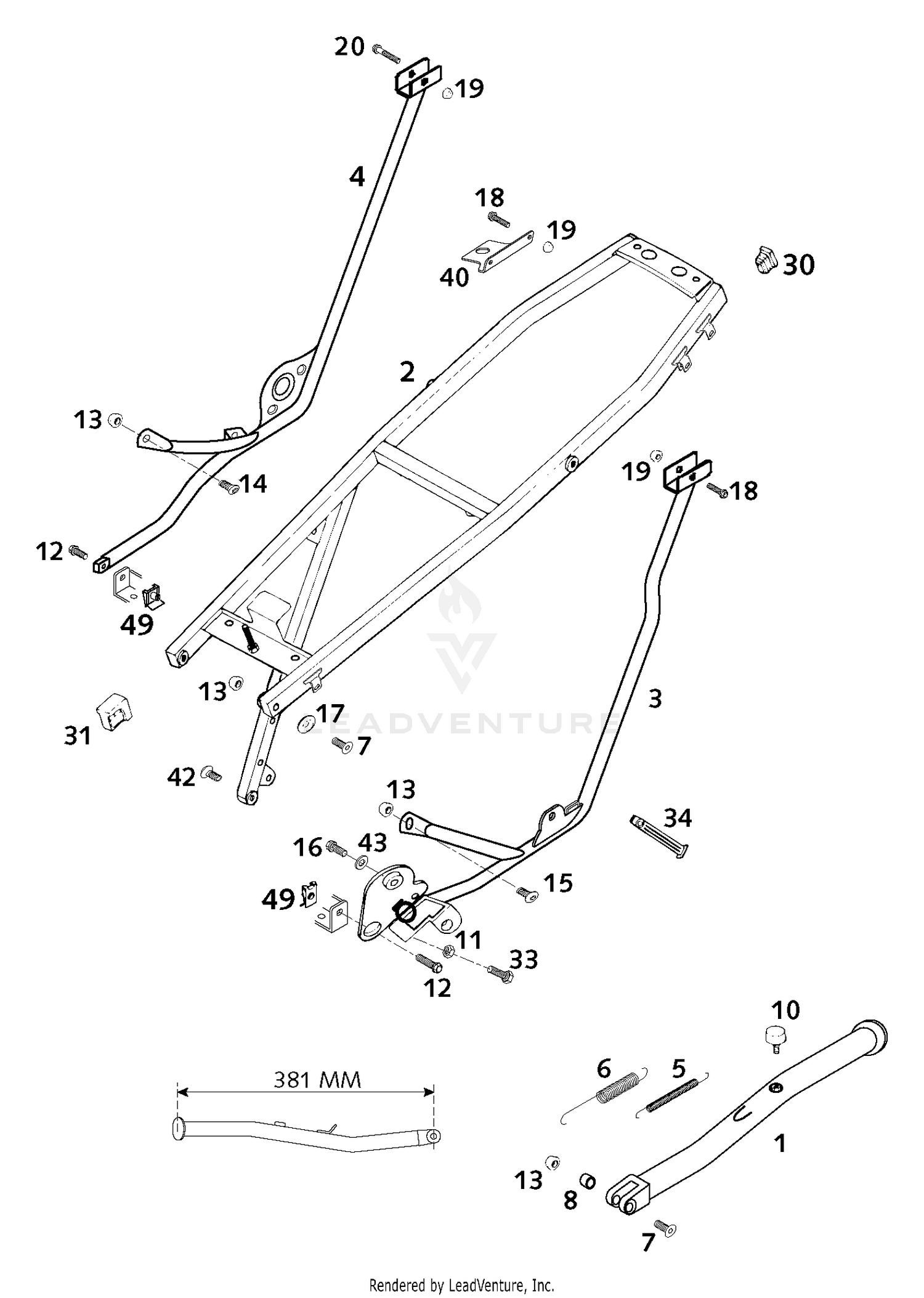

Sub Frame, Side Stand Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SIDE STAND L=381MM RALLYE '98
58503023000
|
|||
|
Unavailable |
|||
|
#2
SUB FRAME STEEL RALLYE '98
58503002200
|
|||
|
Unavailable |
|||
|
#3
BRACE SUBFRAME L/S RALLYE '98
58512097000
|
|||
|
Unavailable |
|||
|
#4
BRACE SUB FRAME RALLYE R/S '98
58512097180
|
|||
|
Unavailable |
|||
|
#5
SIDE STAND SPRING D=7,7MM '97
58403030000
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#6
SIDESTAND SPRING LONG
51003021000
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#7
FLAT HEAD SCREW DIN7991-M 8X35
0991080353
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSHING 8,2 X 12 X 10
57103225000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
STOP RUBBER M8
58303070000
|
$8.57 | ||
|
Available to order. Add to View Price |
|||
|
#11
HEXAGON NUT DIN0934-M 8
0934080003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
HH collar screw M8x30
0015080303
Superseded by 0025080306
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SELF LOCKING NUT M8 10.9
54310086200
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
AH OVAL H.SCREW DIN0170-M 8X20
0107080203
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
FLAT HEAD SCREW M. ISA45 M8X20
54610052000
Superseded by 0019080206S
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
HH collar screw M8x20
0015080203
Superseded by 0025080206
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPECIAL WASHER ALU 8 X 24 MM
58303061000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
HH collar screw M6x25 TX30
0015060253
Superseded by 0025060256
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SELF LOCKING NUT M6 10.9
56509064100
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
HH collar screw M6x35 TX30
0015060353
Superseded by 0025060356
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
PLUG 12 X 17 MM
58303002090
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#31
TANK SUPPORT '93
58307015000
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#33
HH SCREW DIN0933-M 8X25
0933080253
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
RUBBER BAND
54611186000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#40
BRACKET FOR RESERVOIR '99
58503002251
|
|||
|
Unavailable |
|||
|
#42
COUNTER-SUNK SCREW ISA45 M8X26
54510052100
Superseded by 0019080266S
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
washer DIN 125 A -8.4
0125080003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#49
RANGE CHANGE METAL NUT M8
54603048000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
