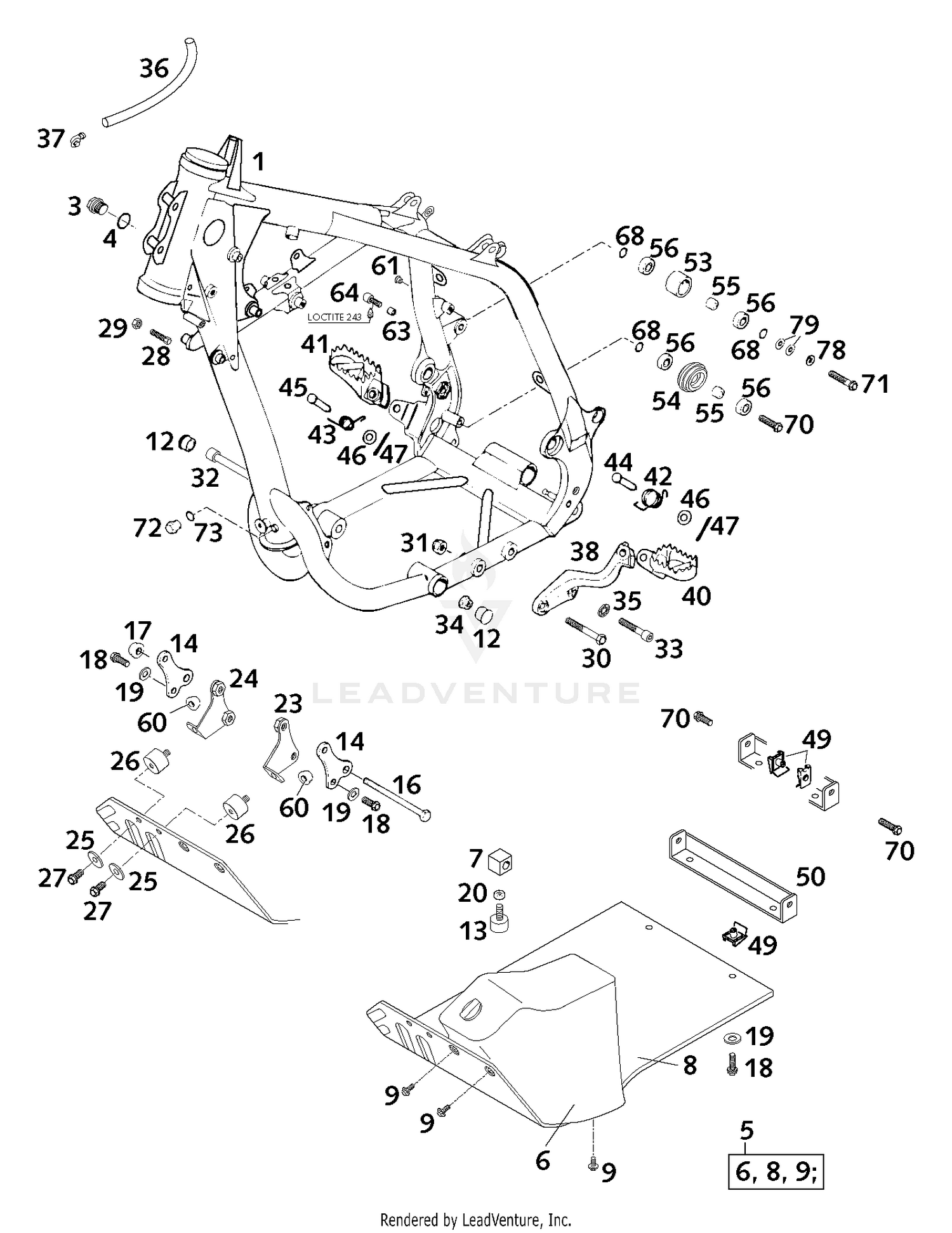

Frame, Engine Protector Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME 660 RALLYE E-STARTER '99 WITH BEARINGS FOR LINKING
58503001300
|
|||
|
Unavailable |
|||
|
#3
PLUG DIN0910-M16X1,5
0910160153
|
$5.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
CU-SEAL RING 16X22X2
0603162220
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
ENGINEPROTECT. CPL.RALLYE 2000
58512099244
|
|||
|
Unavailable |
|||
|
#6
WATER CANISTER PVC RALLYE 2000
58512099152
|
|||
|
Unavailable |
|||
|
#7
ENGINE PROTECTOR BRACKET 2000
58503012000
|
|||
|
Unavailable |
|||
|
#8
GROUND PLATE ALU RALLYE 2000
58512099250
|
|||
|
Unavailable |
|||
|
#9
HH collar screw M6x15 TX30
0014060153
Superseded by 0024060156
|
$3.99 | ||
|
Unavailable |
|||
|
#12
PVC CAP D=22MM
71001012100
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
STOP RUBBER M8
58303070000
|
$8.57 | ||
|
Available to order. Add to View Price |
|||
|
#14
ENGINE SUPPORT AGW '94
58303055000
|
$12.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
HH SCREW DIN0931-M10X110
0931101103
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#17
flanged hex nut DIN 6927 M10 WS15
49009082000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
HH collar screw M8x20
0015080203
Superseded by 0025080206
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
washer DIN 125 A -8.4
0125080003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
HEXAGON NUT DIN0934-M 8
0934080003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET ENGINEPROTECT.L/S 2000
58503014000
|
|||
|
Unavailable |
|||
|
#24
BRACKET ENGINEPROTECT.R/S 2000
58503015000
|
|||
|
Unavailable |
|||
|
#25
WASHER DIN9021-A 8,4
0021080003
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
RUBBER GROMMET 30X15-M8X12-(1)
43205262000
|
$11.77 | ||
|
Available to order. Add to View Price |
|||
|
#27
HH COLLAR SCREW M8X16 TX40
0015080163
Superseded by 0025080166
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
SPECIAL SCREW M8X26 WS=10
59001037000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
HEXAGON NUT DIN0934-M 8
0934080003
|
$2.99 | ||
|
Unavailable |
|||
|
#30
HH SCREW DIN0931-M10X60
0931100603
|
|||
|
Unavailable |
|||
|
#31
SELF LOCKING NUT DIN0985-M10
0985100003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
AH SCREW DIN0912-M10X160
0912101603
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#33
AH SCREW DIN0912-M10X45
0912100453
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Collar nut M10-SW13 ZnNi
54630044000
Superseded by 55530044000
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
PAIR OF WASHERS M10 NORDLOCK
50233041100
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
PVC-HOSE 7X10 PER METER
55007016001
|
$7.14 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
ANGLE PIECE '97
50303089000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#38
FOOTREST BRACKET L/S '93
58303038000
|
$42.39 | ||
|
Available to order. Add to View Price |
|||
|
#40
FOOTREST L/S RALLYE '99
58503040000/19
|
|||
|
Unavailable |
|||
|
#41
FOOTREST R/S RALLYE '99
58503041000/19
|
|||
|
Unavailable |
|||
|
#42
FOOTREST SPRING L/S '93
58303041000
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#43
FOOTREST SPRING L/S & R/S
54603041000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT FOR FOOTREST
58303044000
|
$7.66 | ||
|
Available to order. Add to View Price |
|||
|
#45
PIN FOR FOOT PED 51.5X9.8 MM
54603044000
Superseded by 54803044000
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#46
washer DIN 125 A 10.5
0125100003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
PIN DIN 0094-3.2X25 NIRO
0094032253
Superseded by 0094032250
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
RANGE CHANGE METAL NUT M8
54603048000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
BRACKET ENGINEPROTEC.REAR 2000
58503013000
|
|||
|
Unavailable |
|||
|
#53
CHAIN ROLL D=30MM
50203053000
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#54
CHAIN ROLL D=35MM 125-380 '99
52303053100
|
$6.68 | ||
|
Available to order. Add to View Price |
|||
|
#55
BUSHING 8.2 X 12 X 6
74003021000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#56
GROOVED BALL BEAR. 608 2RS C3
0625006087
|
$25.18 | ||
|
Available to order. Add to View Price |
|||
|
#60
SELF LOCKING NUT M8 10.9
54310086200
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#61
PLASTIC CAP SFL10
54403135000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
BUSHING 7X12X15,4
54305069000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
AH SCREW DIN0912-M 6X16
0912060163
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#68
LOCK WASHER 8MM
36003014000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#70
HH collar screw M8x30
0015080303
Superseded by 0025080306
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#71
HH collar screw M8x35 TX40
0015080353
Superseded by 0025080356
|
$4.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#72
PLUG DIN0910-M 10X1
0910100003
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#73
CU-SEAL RING 10 X 14 X 1,5
58038022900
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#78
TOOTHLOCK WASHER DIN6797-J 8,4
0797080003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#79
washer DIN 125 A -8.4
0125080003
|
$1.99 | ||
|
Unavailable |
|||
