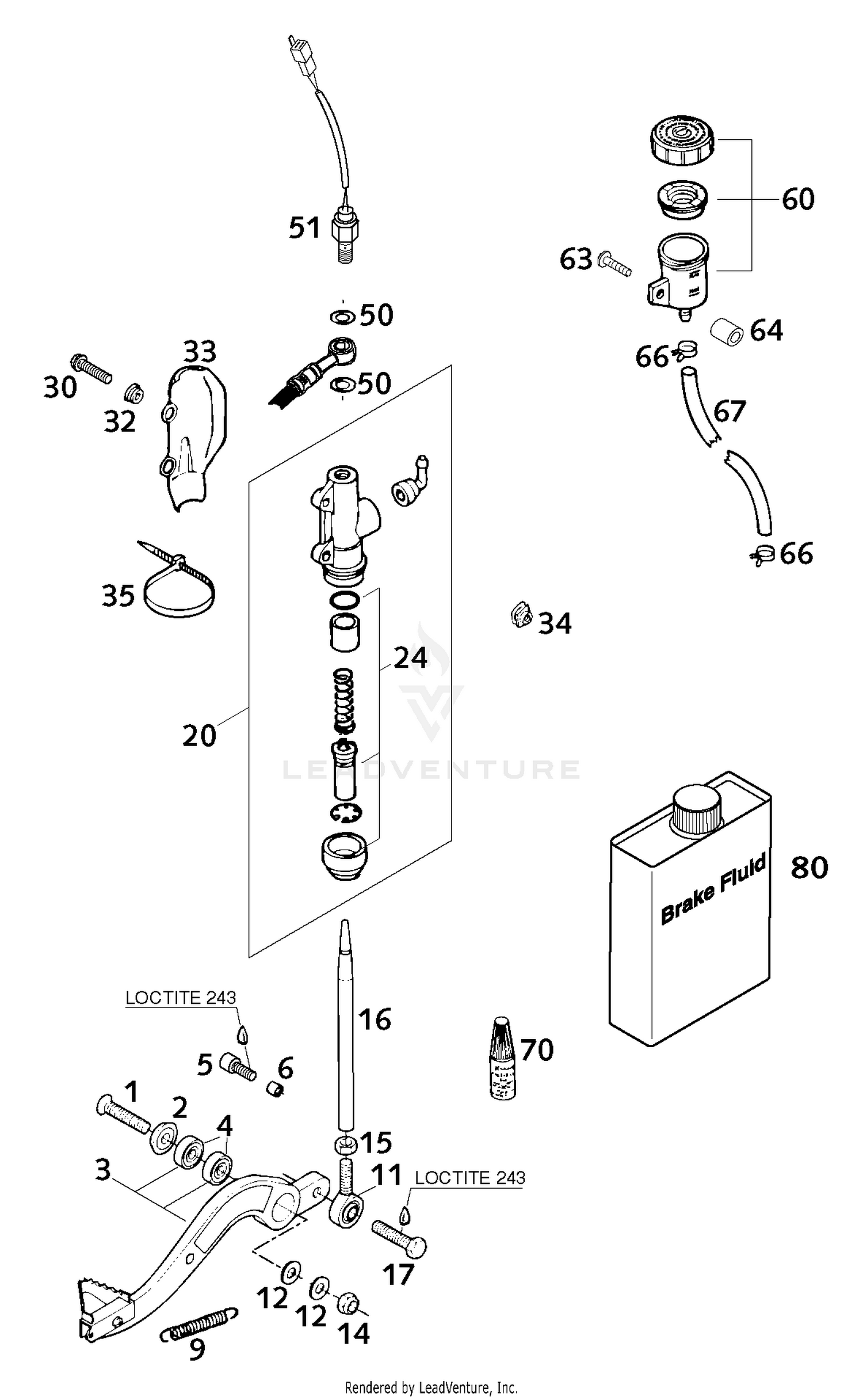

Rear Brake Control Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FLAT HEAD SCREW DIN7991-M 8X35
0991080353
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPECIAL WASHER ALU 8 X 24 MM
58303061000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
FOOT BRAKE L. CPL. LC4/ADV.'98
58303060344
|
|||
|
Unavailable |
|||
|
#4
GROOVED BALL BEAR. 608 2RS C3
0625006087
|
$25.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
AH SCREW DIN0912-M 6X16
0912060163
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SPACER BUSHING 7X10X7,5
50208020000
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
RETURN SPRING
13003062000
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
|
#11
HEIM JOINT M8 W=12MM '93
58303062000
|
$45.87 | ||
|
Available to order. Add to View Price |
|||
|
#12
washer DIN 125 A -8.4
0125080003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SELF LOCKING NUT DIN0985-M 8
0985080003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HEXAGON NUT DIN0934-M 8
0934080003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PUSH ROD ALU L=178MM '93
58303068100
|
$11.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
HH SCREW DIN0933-M 8X22 8.8
0933080223
|
|||
|
Unavailable |
|||
|
#20
MAIN BRAKE CYLINDER
54513101044
Superseded by 54513101144
|
$149.09 | ||
|
Unavailable |
|||
|
#24
REPAIR KIT PISTON 13MM
54513150000
|
$54.66 | ||
|
Available to order. Add to View Price |
|||
|
#30
HH collar screw M6x25 TX30
0015060253
Superseded by 0025060256
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
COLLAR BUSHING
50213161000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BRAKE CYL. PROTECTOR ''BREMBO''
54513038000
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#34
clip nut M6
50235033300
Superseded by 54603048100
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CABLE TIE 300/4,8MM BLACK
44011076305
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
CU-SEAL RING DIN7603-10X16X1
42013226000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
BRAKE LIGHT SWITCH REAR '98
50311051100
|
$43.44 | ||
|
Available to order. Add to View Price |
|||
|
#60
BRAKE FLUID RESERVOIR '89
54513030044
|
$24.19 | ||
|
Available to order. Add to View Price |
|||
|
#63
SPECIAL SCREW K60X30 WS=6
0017060303
Superseded by 0017060305
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
BUSHING 7X12X15,4
54305069000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#66
YDNAC CLAMP 10101 (10,4MM)
58007017000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#67
Hose reservoir 6x1,5
58007016101
Superseded by 57313072001
|
$19.24 | ||
|
Available to order. Add to View Price |
|||
|
#70
LOCTITE 243 BLUE 5 ML
6899785
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#80
BRAKE FLUID DOT 5.1
306054
|
|||
|
Unavailable |
|||
