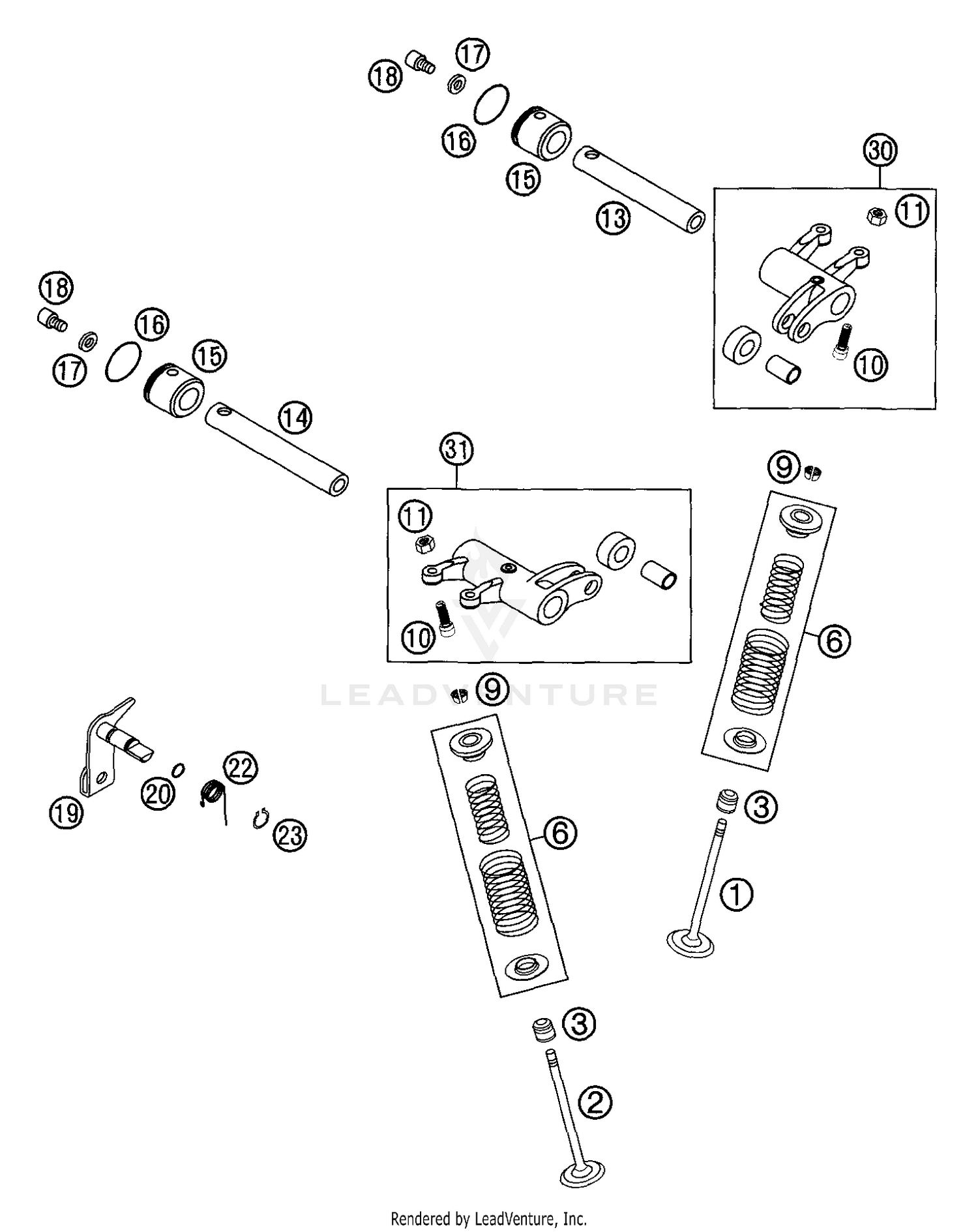

Valve Drive Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
INTAKE VALVE D=35MM
59036030000
|
$60.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
EXHAUST VALVE D=30MM
59036031000
|
$89.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE-STEM SEALING RACING
59036027000
|
$7.03 | ||
|
Available to order. Add to View Price |
|||
|
#6
VALVE SPRING KIT (1X) RAC.2001
59036028244
Superseded by 83036028144
|
$54.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
VALVE COLLET MK6 03
60036033000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ADJUSTMENT SCREW M6X0,75
59036062000
|
$22.43 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT M6X0,75
59036062100
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
ROCKER ARM SHAFT INTAKE
59036056000
|
$24.08 | ||
|
Available to order. Add to View Price |
|||
|
#14
ROCKER ARM SHAFT EXHAUST
59036057000
|
$25.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
END CAP ROCKER ARM SHAFT
59036061095
|
$23.97 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING 19,10X1,60 NBR 70
0770191016
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM ALU 5,2X10X2
59036060010
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SHCS DIN 912 M5x8
0912050083
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
DECOMPRESSION SHAFT CPL.
59036050000
|
$39.26 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING 5,10X1,60 NBR 70
0770051016
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
DECOMPRESSION LEVER SPRING
59036059000
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
CIRCLIP DIN0471- 8X0,8
0471080000
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#30
ROCKER ARM INTAKE CPL.
59036060144
|
$178.59 | ||
|
Available to order. Add to View Price |
|||
|
#31
ROCKER ARM EXHAUST CPL.
59036061144
|
$203.93 | ||
|
Available to order. Add to View Price |
|||
