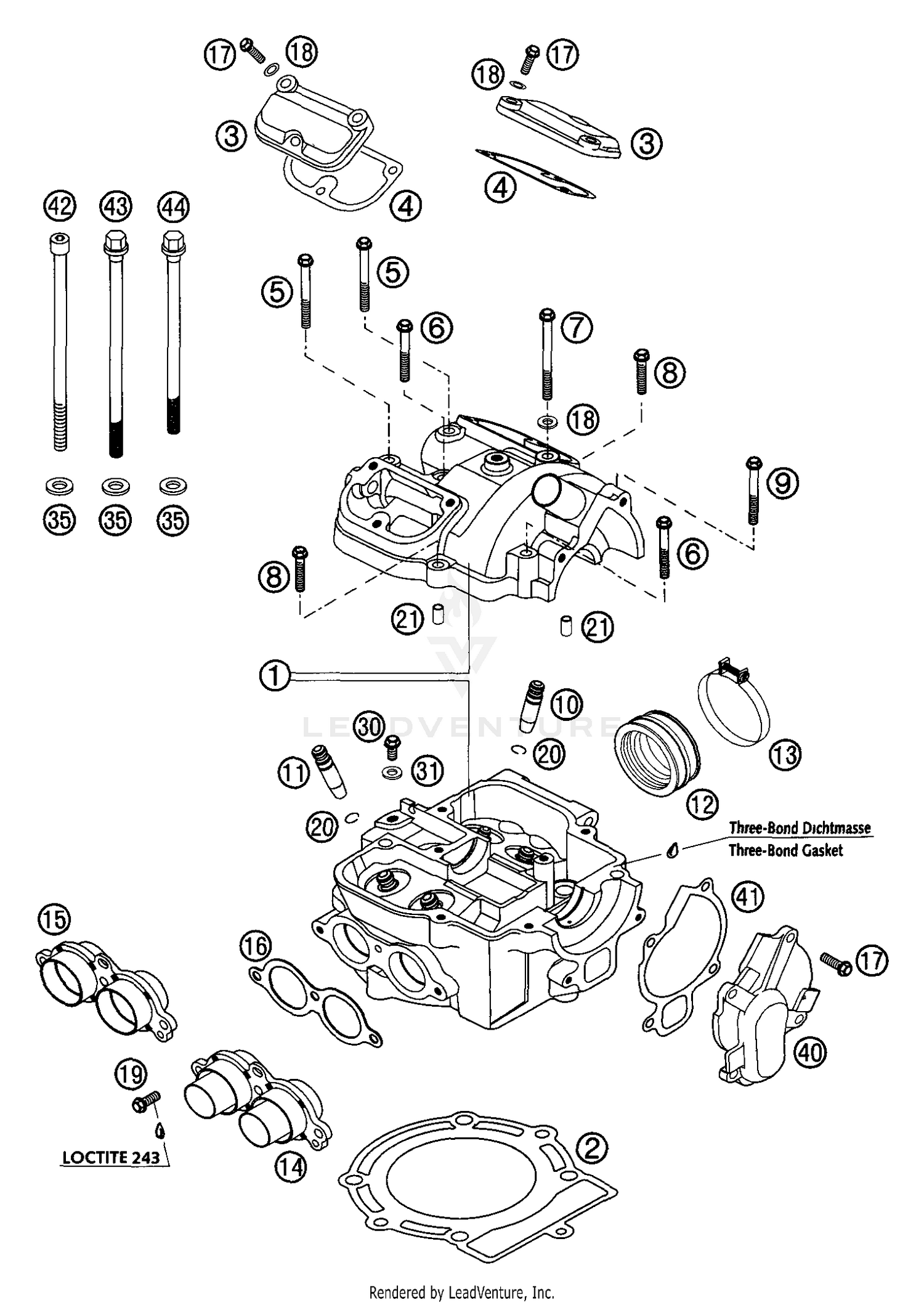

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD CPL. 250 4-ST 03
59836020144
|
$966.89 | ||
|
Available to order. Add to View Price |
|||
|
#1
CYL. HEAD CPL. 450/525 SX 04
59436020044
|
$624.01 | ||
|
Available to order. Add to View Price |
|||
|
#1
CYLINDER HEAD CPL. 450/52 07
59036020144
Superseded by 59036020344
|
$604.30 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER HEAD GASKET D=75 02
59830036000
|
$24.19 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER HEAD GASKET 95,3 MM
59030036000
|
$51.36 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER HEAD GASKET 89,3 MM
59530036000
|
$49.38 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE COVER REAR
58036052000
Superseded by 58036052200
|
$15.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
VALVE COVER GASKET
58036053000
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
HH COLLAR SCREW M 6X55 WS=8
0015060553
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
HH COLLAR SCREW M6X45 TX30
0015060453
Superseded by 0025060456
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HH COLLAR SCREW M6X75 TX30
0015060753
Superseded by 0025060756
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
HH collar screw M6x30 TX30
0015060303
Superseded by 0025060306
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
HH collar screw M6x50 TX30
0015060503
Superseded by 0025060506
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
VALVE GUIDE INTAKE 36,5MM
59036025000
|
|||
|
Unavailable |
|||
|
#11
VALVE GUIDE EXHAUST 40,5MM
59036026000
|
|||
|
Unavailable |
|||
|
#12
INTAKE BOOT 03
59036044100
|
$10.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
INTAKE BOOD 450SX 03
59436044000
|
$14.07 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP D=56MM B=9MM M4X25
59030061000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
EXHAUST FLANGE CPL. 250 4T 02
59836039100
|
$79.19 | ||
|
Available to order. Add to View Price |
|||
|
#15
EXHAUST FLANGE CPL. RACING
59036039000
|
$55.50 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET EXHAUST FLANGE
59036041000
|
$7.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
HH collar screw M6x20 TX30
0015060203
Superseded by 0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CU-SEAL RING DIN7603-6X10X1
0603061001
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
HH collar screw M6x16 TX30
0015060163
Superseded by 0025060166
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
CIRCLIP DIN7993-RW12
0993012000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Dowel, 6x8x11.5
59030023000
Superseded by 59030023100
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
VENT SCREW M6X10 CPL.
59036006090
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CU-SEAL RING 6 X 10 X 2
58036065100
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
WASHER 10,8X18,8X1,5
59036090000
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
WATER PUMP COVER RACING 2000
59035052000
|
$75.12 | ||
|
Available to order. Add to View Price |
|||
|
#41
WATER PUMP COVER GASKET 0,8MM
59035053000
|
$7.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
AH SCREW DIN 912 M10X150 10.9
0912101503
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#43
CYL. HEAD SCREW M10X158 WS=13
59036079000
Superseded by 59036079100
|
$12.64 | ||
|
Available to order. Add to View Price |
|||
|
#44
CYLINDER HEAD SCREW M10X142
59436079000
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
