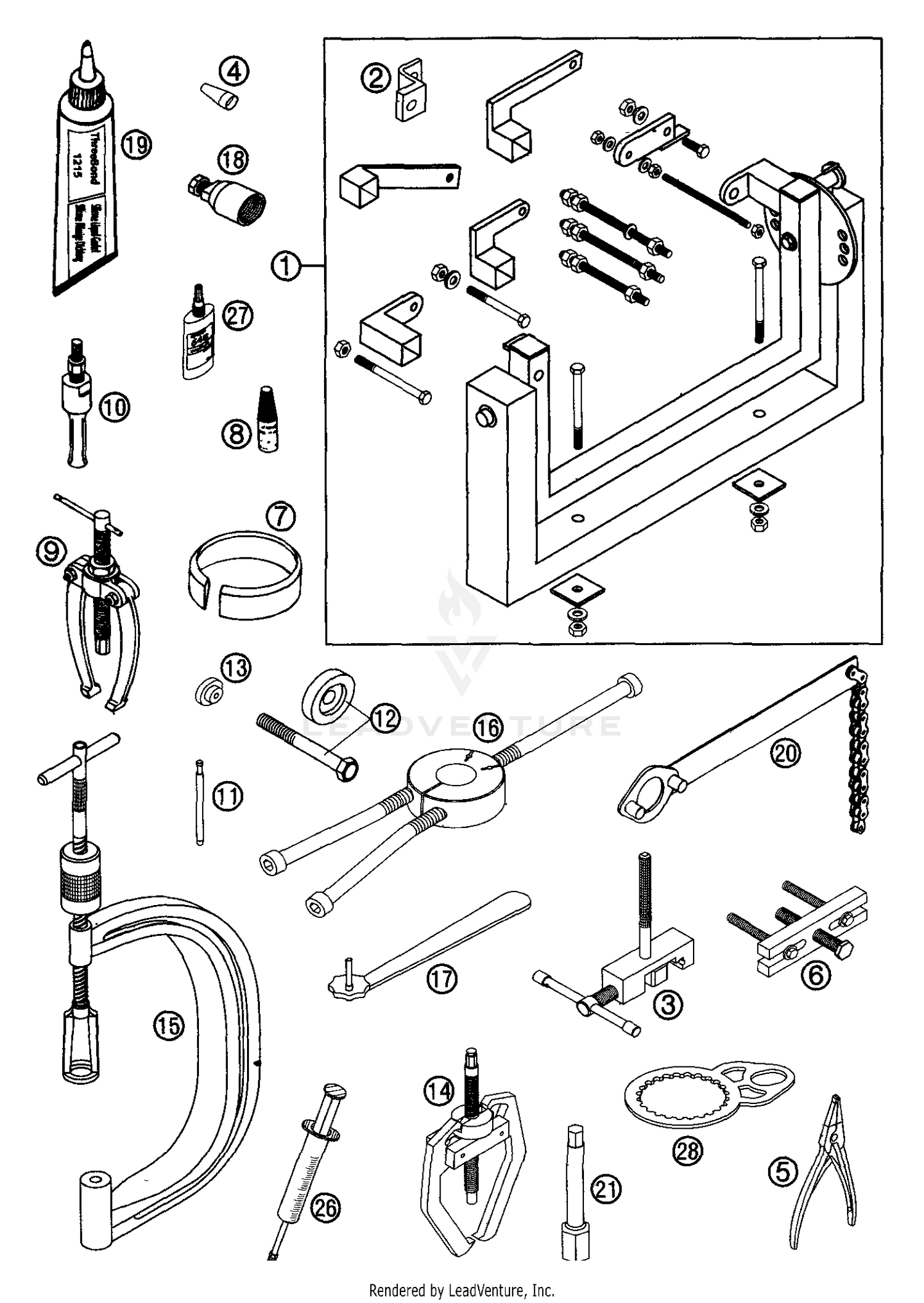

Special Tools Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASSY SUPPORT (WITHOUT HOLDER)
56012001000
|
$834.19 | ||
|
Available to order. Add to View Price |
|||
|
#2
ENGINE HOLDER FOR RACING 2000
59029002000
|
$35.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
RIVETTING TOOL TIMING CHAIN
59029020000
|
$210.79 | ||
|
Available to order. Add to View Price |
|||
|
#4
MOUNTING SLEEVE SEAL RING
59029005010
|
$18.14 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SPECIAL CIRCLIP PLIER
51012011000
|
$160.92 | ||
|
Available to order. Add to View Price |
|||
|
#6
EXTRACT.PRIM.GEAR-INNER CLUTCH
59029021000
|
|||
|
Unavailable |
|||
|
#7
PISTON R. COMPRESSOR D=75MM 02
59829015075
|
$79.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PISTON RING COMPRESSOR D=89MM
58012015089
|
$58.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
PISTON RING COMPRESSOR D=95MM
58012015095
|
$98.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
LOCTITE 243 BLUE 5 ML
6899785
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BUSHING EXTRACTOR
15112017000
|
$150.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
INTERN.BEAR.PULLER 12-16 MM
15112018000
|
$209.43 | ||
|
Available to order. Add to View Price |
|||
|
#10
INTERN.BEAR.PULLER 18-23 MM
15112018100
|
$234.07 | ||
|
Available to order. Add to View Price |
|||
|
#10
INTERN.BEAR.PULLER 5-7 MM
15112018200
|
$175.86 | ||
|
Available to order. Add to View Price |
|||
|
#11
LIMIT PLUG GAUGE F.VALVE GUIDE
59029026006
|
$27.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
MOUNTING RING FOR INNER CLUTCH
59029035000
|
$16.58 | ||
|
Available to order. Add to View Price |
|||
|
#13
PROTECTION COVER F.MAIN SHAFT
59029036000
|
$16.38 | ||
|
Available to order. Add to View Price |
|||
|
#14
EXTRACTOR FOR TIMING GEAR
59029033000
|
$138.59 | ||
|
Available to order. Add to View Price |
|||
|
#15
VALVE SPRING LEVER
59029019000
|
$349.13 | ||
|
Available to order. Add to View Price |
|||
|
#16
MOUNTING TOOL INNER RING NJ206
58429037037
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WRENCH F.MIXTURE CONTROL SCREW
59029034000
Superseded by 77329034000
|
$58.37 | ||
|
Available to order. Add to View Price |
|||
|
#18
FLYWHEEL EXTRACTOR
58012009000
|
$40.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
LOCTITE 5910 50ML
309098
Superseded by 58429059200
|
$33.98 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOLDING SPANNER FOR SPROCKET
51012012000
|
$82.71 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPARK PLUG KEY 250 SX-F
59029072000
Superseded by 77029072000
|
$35.30 | ||
|
Available to order. Add to View Price |
|||
|
#26
VENT INJEKTION HYDR. CLUTCH
50329050000
|
$63.24 | ||
|
Available to order. Add to View Price |
|||
|
#27
LOCTITE 648 GREEN 24ML
58429059000
|
|||
|
Unavailable |
|||
|
#28
CLUTCH HOLDER RACING 2004
59029003000
Superseded by 59029003100
|
$73.69 | ||
|
Available to order. Add to View Price |
|||
