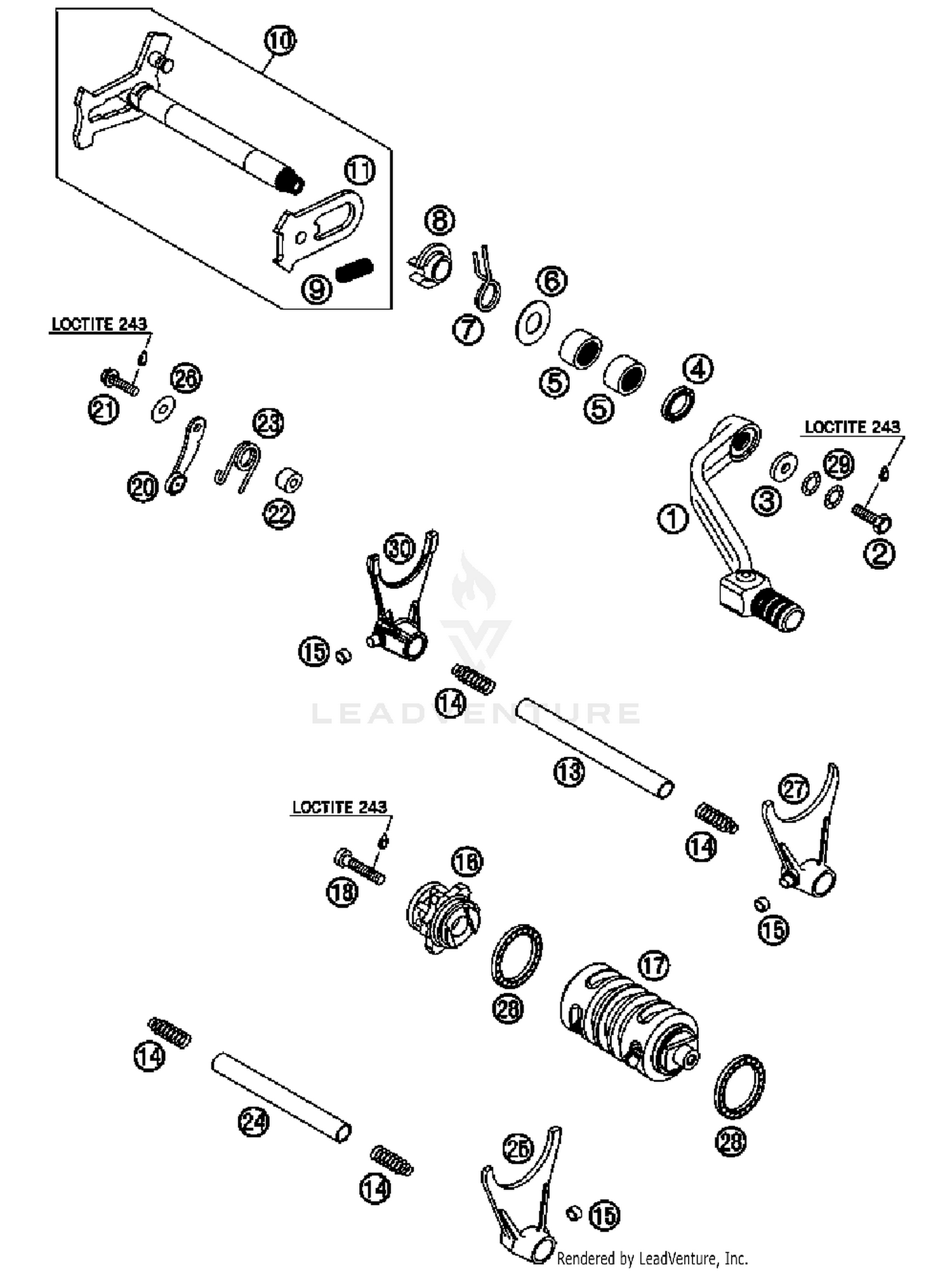

Shifting Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT LEVER CPL.RACING 2000
59034031000
|
$103.17 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPECIAL SCREW M6X16 WS=8 10.9
59009062016
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
STEEL WASHER 6,4X17X3
50232050001
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
radial shaft seal 14x24x6 B
0760142460
|
$10.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
needle sleeve HK 1412 14x20x12
54632095000
|
$8.24 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
STOP DISK 14X30X1
54634050000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RETURN SPRING 2,2MM '95
54634014100
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING GUIDE
54634020000
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
TENSIONING SPRING 0,8MM
56534013100
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIFT SHAFT CPL. ASSY
78034005044
Superseded by 78034005233
|
$115.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
SLIDING PLATE
54634008044
Superseded by 61234008044
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHIFT RAIL 11,8X101,5
78034020000
|
$17.70 | ||
|
Available to order. Add to View Price |
|||
|
#14
PRESSURE SPRING 0,9MM
58038023200
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIFTING ROLLER 6X8X5,2
50334018100
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHIFT DRUM LOCATING ALU CPL.
78034015144
Superseded by 78134015044
|
$56.09 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIFT ROLLER
78034012000
|
$73.36 | ||
|
Available to order. Add to View Price |
|||
|
#18
AH SCREW DIN6912 M 6X30
0984060302
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
LOCKING LEVER CPL. 08
77034024044
|
$18.91 | ||
|
Available to order. Add to View Price |
|||
|
#21
HH collar screw M5x20 TX30
0015050203
Superseded by 0025050206
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SLEEVE FOR LOCKING LEVER
54634052300
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
ARRESTING LEVER SPRING 03
60034023000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SHIFT RAIL 11,8X85
78034019000
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHIFTING FORK 5./6. GEAR
59034001000
Superseded by 59034001100
|
$48.83 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER DIN7349-5X15X2
0349000050
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SHIFTING FORK 2./4. GEAR
59034002000
Superseded by 59034002100
|
$47.62 | ||
|
Available to order. Add to View Price |
|||
|
#28
BALL BEARING 61805 C3
0625618050
|
$51.69 | ||
|
Available to order. Add to View Price |
|||
|
#29
PAIR OF WASHERS M 6 NORDLOCK
50233041000
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
SHIFTING FORK 1ST/3RD GEAR
78034003000
Superseded by 78034003100
|
$47.29 | ||
|
Available to order. Add to View Price |
|||
