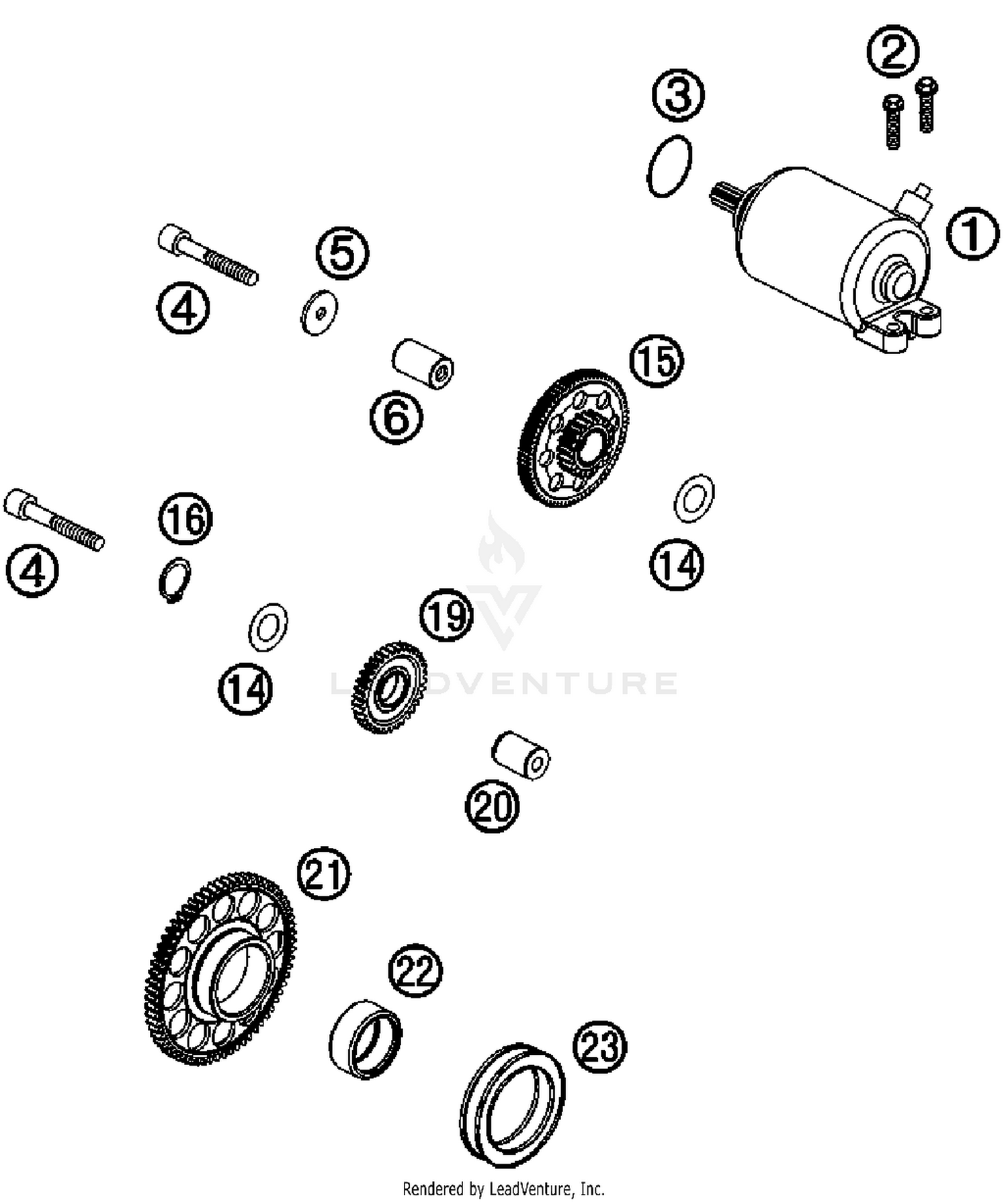

Electric Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
E-START. ENGINE CPL. 0,45KW 08
78040001000
|
$333.73 | ||
|
Available to order. Add to View Price |
|||
|
#2
HH collar screw M6x20 TX30
0015060203
Superseded by 0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
O-RING 25,12X1,78 NBR70
0770020220
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
AH SCREW DIN0912-M 6X40 A2
0912060404
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
STOP DISC 6X23X2
78040016004
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING BOLT
78040029000
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM WASHER DIN0988-17X24X0,5
0988172405
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
TORQUE LIMITER CPL.
78040016000
Superseded by 78040016100
|
$209.32 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP DIN0471-17X1
0471170010
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
IDLER GEAR 30-T CPL.
78040022000
Superseded by 78940022000
|
$60.82 | ||
|
Available to order. Add to View Price |
|||
|
#20
BUSHING PIN
78040028000
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#21
FREEWHEEL GEAR 66-T
78040020066
|
$114.29 | ||
|
Available to order. Add to View Price |
|||
|
#22
NEEDLE BEARING HK 3016 B
0618301617
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#23
FREE WHEEL CLUTCH MECHANISM 97
H25015301
|
$233.96 | ||
|
Available to order. Add to View Price |
|||
