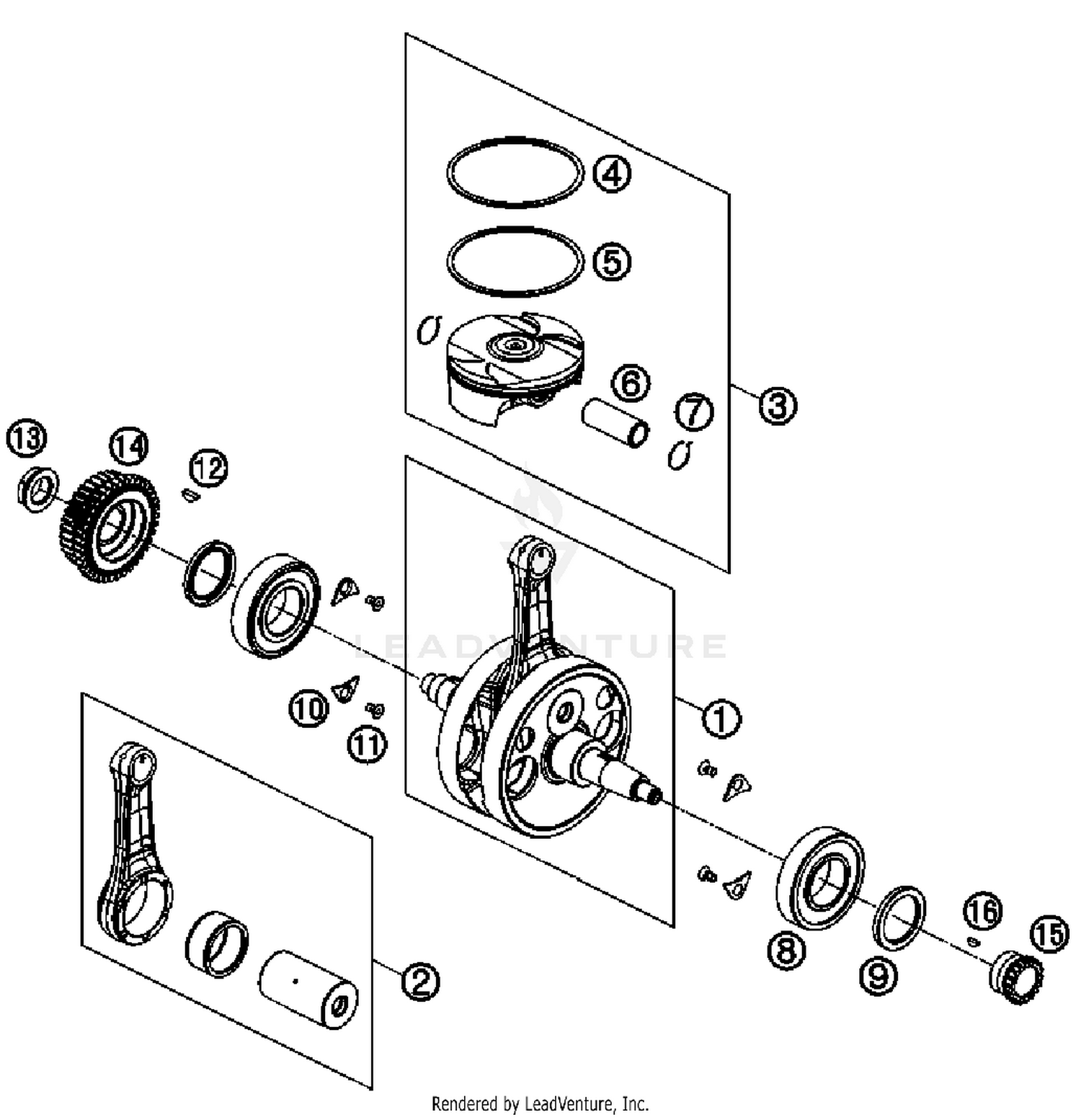

Crankshaft, Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT CPL. 08
78030018100
|
$677.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
CONNECT. ROD REPAIR 450 08
78030015044
|
$431.00 | ||
|
Unavailable |
|||
|
#3
PISTON
78030007000
|
|||
|
Unavailable |
|||
|
#4
COMPRESSION RING
78030030000
Superseded by 78030030100
|
$51.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SCRAPER PISTON RING
78030032000
Superseded by 78030032200
|
$61.48 | ||
|
Available to order. Add to View Price |
|||
|
#6
PISTON PIN 08
78030033000
|
$75.90 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
77330074000
|
$15.39 | ||
|
Available to order. Add to View Price |
|||
|
#8
BALL BEARING 6207 TM-SX07E 39
0625062071
|
$62.14 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHAFT SEAL RING 35X47X4,5
07603547451
|
$16.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
Retaining bracket crankshaft bearing
75030085000
Superseded by 75030085100
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
hex lobe countersunc screw M5x10 - 10.9
0019050103
Superseded by 0019050106S
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
woodruff key DIN 6888 4x5x13
0888040050
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT PRIMARY WHEEL
78030029000
Superseded by 78030029100
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
PRIM.WHEEL W.FREEWHEEL 08
78032032100
|
$178.87 | ||
|
Available to order. Add to View Price |
|||
|
#15
TIMING GEAR
78036014000
|
$35.06 | ||
|
Available to order. Add to View Price |
|||
|
#16
WOODRUFF KEY DIN6888-3X3,7
0888030037
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
