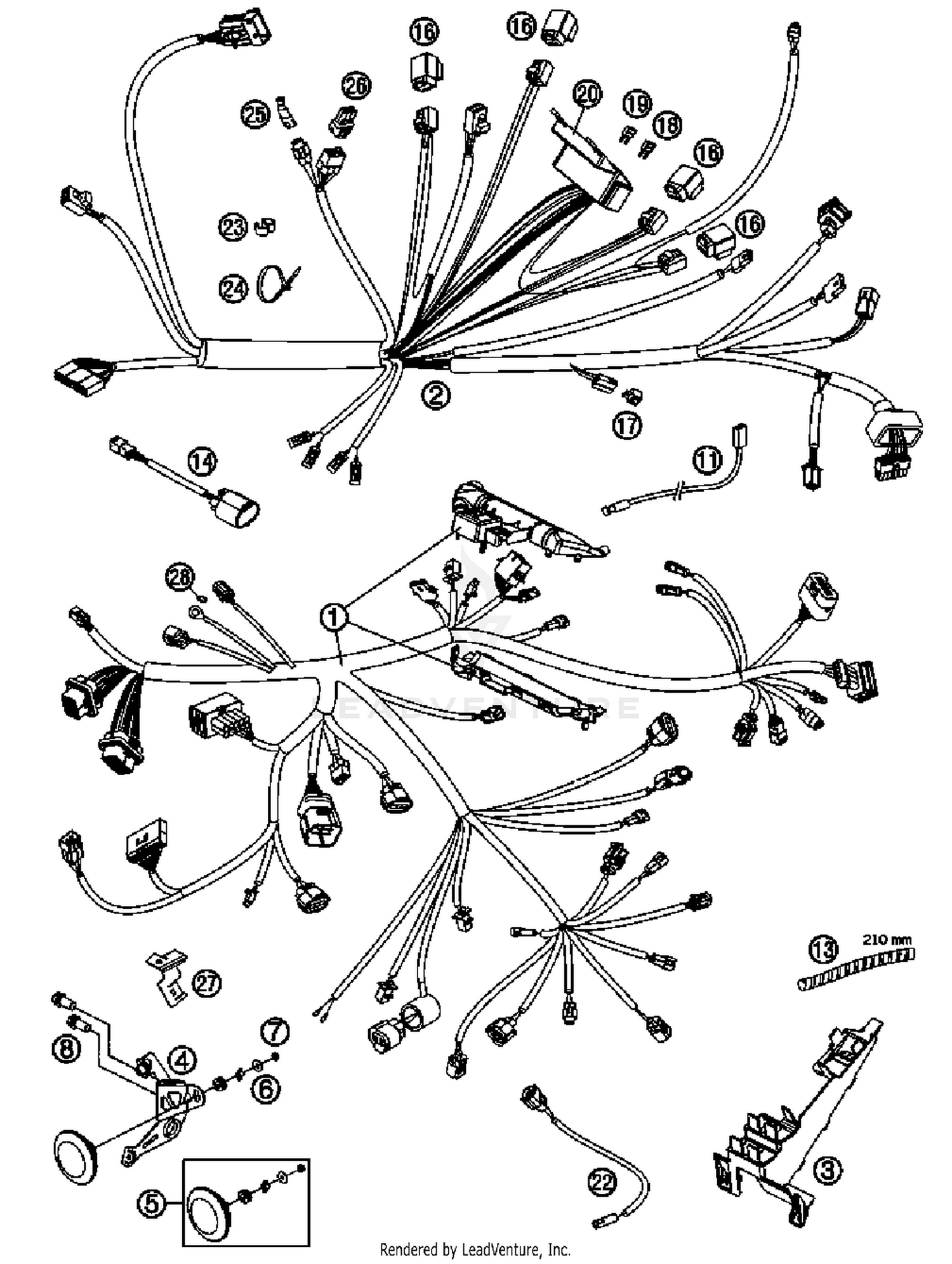

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WIRING HARNESS TWIN SPARK
69311075000
|
$1,125.48 | ||
|
Available to order. Add to View Price |
|||
|
#2
WIRING HARNESS REAR FRAME
69311077000
|
$415.57 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET FOR PLUGS
69011048000
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
HORN BRACKET RC8 CPL.
69011060010
|
$92.06 | ||
|
Available to order. Add to View Price |
|||
|
#5
HORN CPL.
69011060000
|
$33.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
washer DIN 9021 A - 5.3
0021050003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
SELF LOCKING NUT DIN0985-M 5
0985050003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
HH collar screw M8x16 TX40 SL
0025080166S
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
TEMPERATURE SENSOR
61111018000
Superseded by 61111018100
|
$37.17 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPIRAL HOSE D=9MM PER METER
58513001000
|
$25.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
STARTER INTERLOCK
61111020000
|
$115.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
RELAY CM1A-R-12V-H80 07
61111057000
|
$19.79 | ||
|
Available to order. Add to View Price |
|||
|
#17
DIODE S3H-15 97
58411096100
|
$11.54 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
FUSE 15A 07
75011088015
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
FUSE 10A 07
75011088010
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
RUBBER CASING FOR FUSE BOX
75011087050
|
$13.63 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL PRESSURE SWITCH CABLE
60211092000
|
$17.48 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP 5/7 MM 06
60111094000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CABLE TIE 140/2,5MM BLACK
44011076140
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
CABLE TIE 200/3,6MM BLACK
44011076200
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CABLE TIE 300/4,8MM BLACK
44011076305
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
CABLE TIE W. SOCKET D=6,5
69011092000
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Endconnector Can-Bus 2017
69011040000
Superseded by 000700000AL001
|
$23.53 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPARE CONNECTOR BH 6-PINS
000700000BH
|
$26.06 | ||
|
Available to order. Add to View Price |
|||
|
#27
BRACKET F. PLUG RC8 08
69011078050
|
$16.05 | ||
|
Available to order. Add to View Price |
|||
|
#28
CONTACT WASHER M6 VSV-K6
58411098100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
