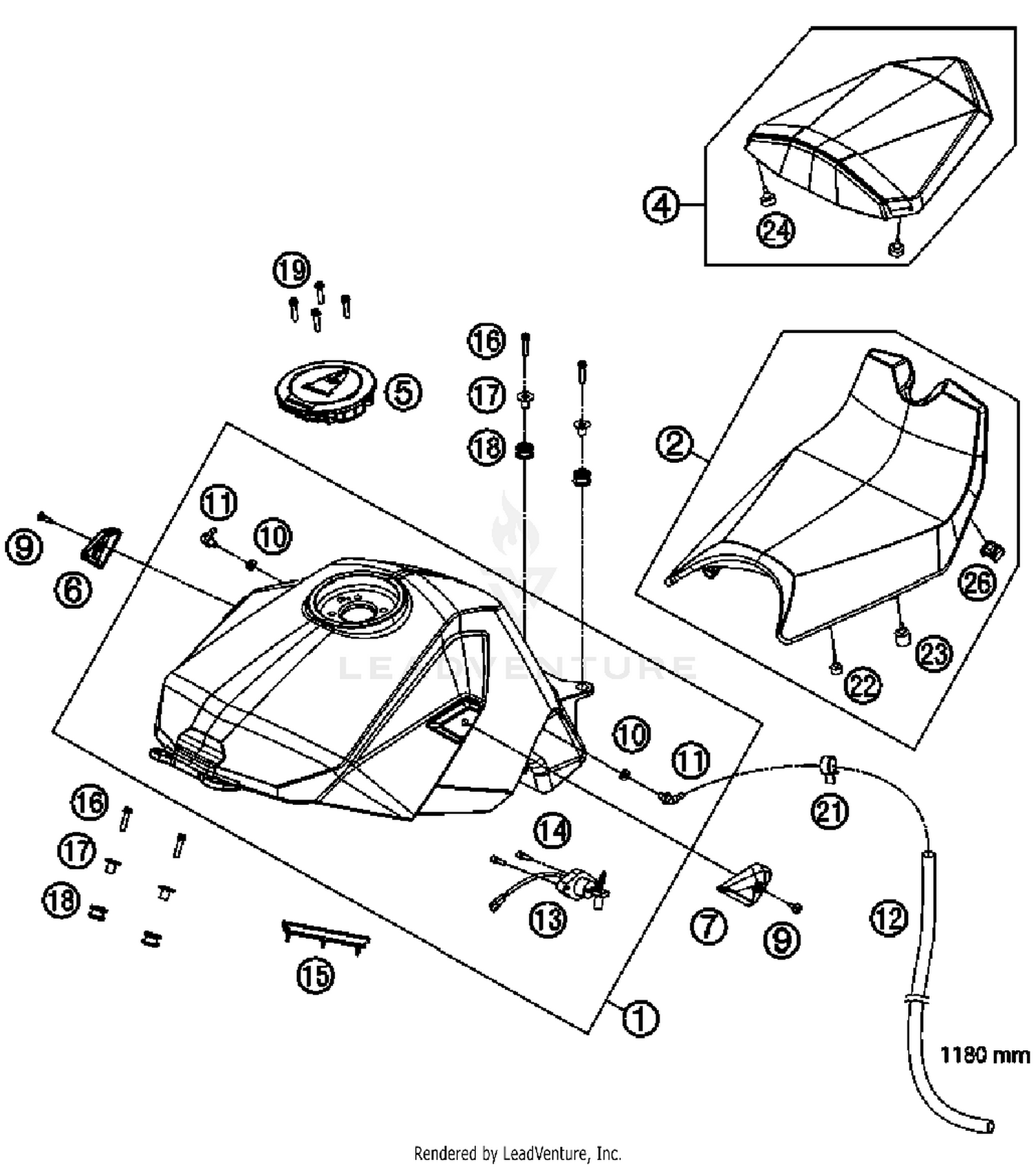

Tank, Seat, Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK CPL. BLACK BRILLIANT
6900701334430A
|
$1,468.53 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAT
69007040200
|
$204.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
PASSENGER SEAT
69007047000
|
$222.08 | ||
|
Available to order. Add to View Price |
|||
|
#5
TANK CAP
69007008100
|
$341.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
TANK PROTECTION R/S BLACK BR.
6900702610030
|
$10.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
TANK PROTECTION L/S BLACK BR.
6900702510030
|
$10.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPECIAL SCREW M5X12 ISA30 ALU
69007025050
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET FOR CONNECTING PIECE 03
60007024050
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CONNECT.PIECE F.OVERFLOW M7 03
60007024000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE 5,4X9,4 NBR, METER
60007026001
Superseded by 60007126001
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
GAS-LEVEL SENSOR ADV. 2006
58207080100
|
$94.48 | ||
|
Available to order. Add to View Price |
|||
|
#14
AH SCREW DIN0912-M 5X16
0912050163
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
TANK REST RUBBER
69007014100
|
$16.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
HH collar screw M6x30 TX30
0025060306
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
COLLAR BUSH. 6,2X10X21X14MM 08
69007028000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
rubber grommet, tank mounting
69007027000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
AH SCREW DIN0912-M 5X12
0912050123
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
YDNAC CLAMP 10101 (10,4MM)
58007017000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
DISTANCE RUBBER 14X8
69007040010
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#23
DISTANCE RUBBER 17,8X16
69007040020
|
$7.13 | ||
|
Available to order. Add to View Price |
|||
|
#24
DISTANCE RUBBER 18X8
69007040030
|
$8.68 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPACER RUBBER
69007040070
|
$24.30 | ||
|
Available to order. Add to View Price |
|||
