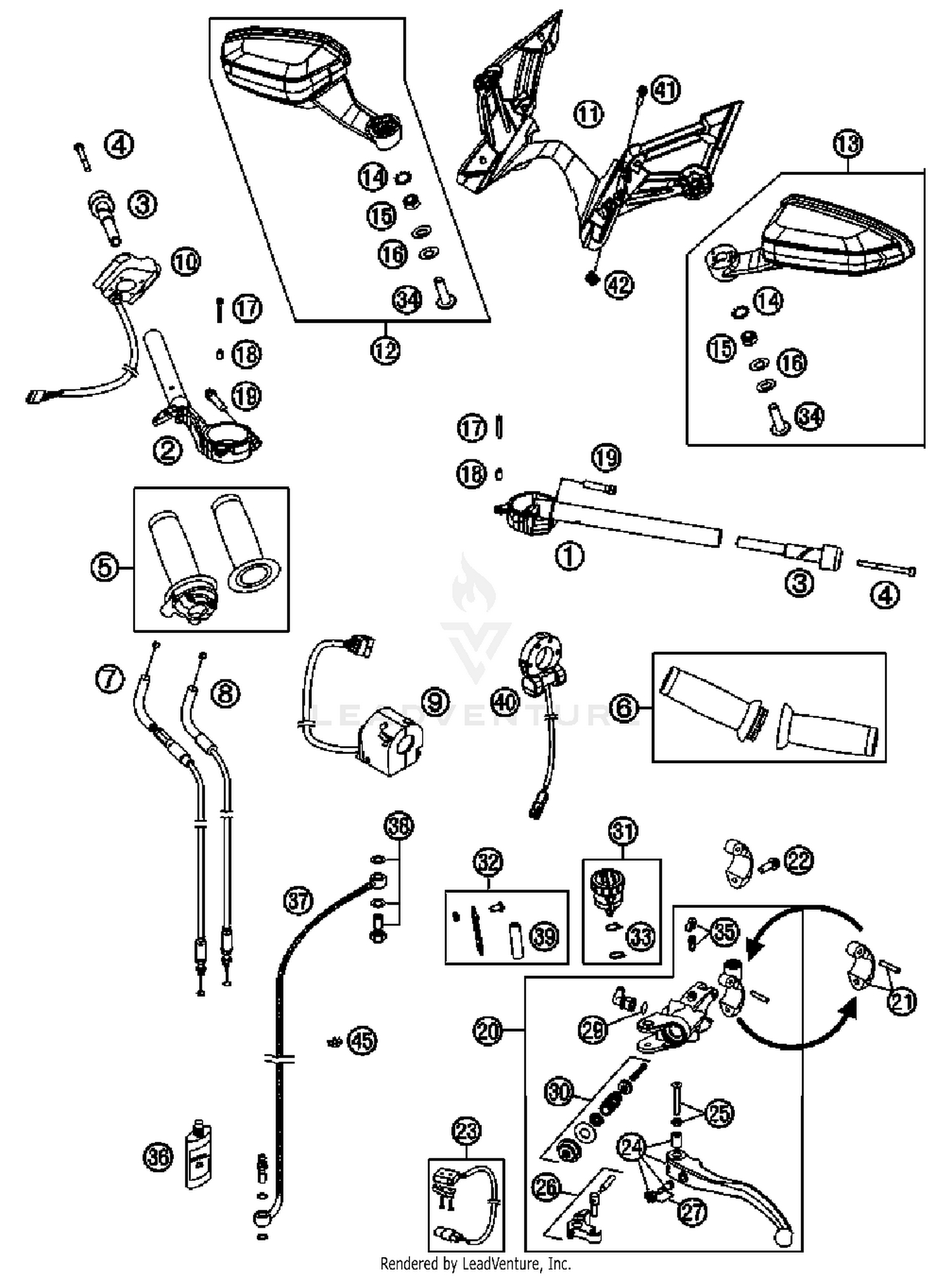

Handlebar, Controls Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP ON L/S 09
6900210100033S
|
$291.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLIP ON R/S 09
6900220100033S
|
$291.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
VIBRATION DAMPER
69002004100
|
$60.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
SHCS DIN 912 M6x65
0912060653
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
THROTTLE GRIP CPL.
69002010200
|
$94.26 | ||
|
Available to order. Add to View Price |
|||
|
#6
GRIP-SET OPEN END PROGRESSIVE
69002021100
|
$54.44 | ||
|
Available to order. Add to View Price |
|||
|
#7
THROTTLE CABLE OPEN
69002091000
|
$65.44 | ||
|
Available to order. Add to View Price |
|||
|
#8
THROTTLE CABLE CLOSE
69002092100
|
$61.59 | ||
|
Available to order. Add to View Price |
|||
|
#9
LIGHT SWITCH 05
61011070000
|
$126.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
START-STOP SWITCH AD LC4 02
58411074100
|
$89.97 | ||
|
Available to order. Add to View Price |
|||
|
#11
MIRROR BRACKET 08
6901204200033
|
$96.90 | ||
|
Available to order. Add to View Price |
|||
|
#12
MIRROR R/S CPL. W. FLASHER
69012041100
|
$386.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
MIRROR L/S CPL. W. FLASHER
69012040100
|
$375.97 | ||
|
Available to order. Add to View Price |
|||
|
#14
DISK SPRING 12,5X6,2X0,35
69012040030
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
ALUMINUM WASHER
69012040040
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER 20X8,2X2
69012040020
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CYL. SCREW DIN14579 M5X35
014579050356
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
DISTANCE BUSHING TRIPLE CLAMP
69002003000
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#19
HH collar screw M8x35 TX40
0025080356
|
$4.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
MASTER CYLINDER CPL. 2010
61002030100
|
$511.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP WITH PIN
61002044100
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
HH collar screw M6x16 TX30
0025060166
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
CLUTCH SWITCH 05
61011049000
|
$90.30 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLUTCH LEVER CPL.
61002031100
|
$98.33 | ||
|
Available to order. Add to View Price |
|||
|
#25
LEVER SCREW SHORT CPL. 09
50302038200
|
$26.94 | ||
|
Available to order. Add to View Price |
|||
|
#26
ROCKER CPL. 05
61002056000
|
$51.69 | ||
|
Available to order. Add to View Price |
|||
|
#27
ADJUSTING SCREW CPL.
61002043000
|
$23.20 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING ANGLE PIECE
61002051000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
REP.SET PISTON D=13 05
61002032000
|
$94.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
RESERVOIR CPL. 05
61002055000
|
$79.19 | ||
|
Available to order. Add to View Price |
|||
|
#32
BRACKET F. CLUTCH RES. CPL.RC8
69032070044
|
$51.03 | ||
|
Available to order. Add to View Price |
|||
|
#33
YDNAC-CLAMP 10107 10MM
58007117000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
OVAL HEAD SCREW M8x30
69012040010
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BLEEDER SCREW WITH CAP
61002054000
|
$27.71 | ||
|
Available to order. Add to View Price |
|||
|
#36
OIL FOR HYD. CLUTCH 100 ML
50302036200
|
$23.42 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLUTCH PIPE
61032063000
Superseded by 61032063100
|
$103.94 | ||
|
Available to order. Add to View Price |
|||
|
#38
HOLLOW SCREW + COPPER GASKET
59032062000
|
$29.47 | ||
|
Available to order. Add to View Price |
|||
|
#39
HOSE FOR RESERVOIR
69002055010
|
$11.96 | ||
|
Available to order. Add to View Price |
|||
|
#40
CONTROLLER F. INSTRUMENTS
69011071000
|
$108.77 | ||
|
Available to order. Add to View Price |
|||
|
#41
HH collar screw M6x35 TX30
0025060356
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
CAGE NUT M6 SL 4MM 03
60003095000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
WIRING HOLDER 16MM
57013072100
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
