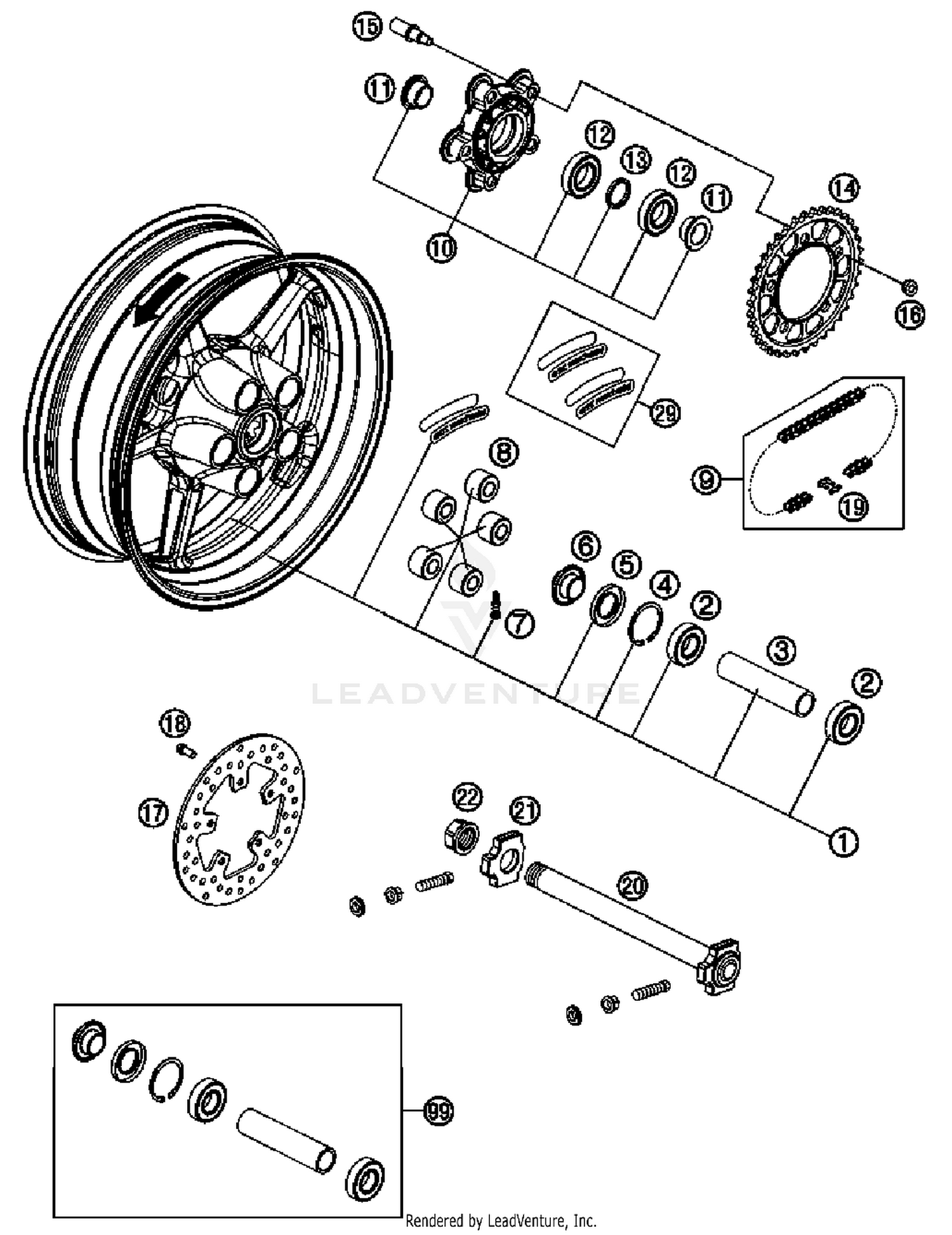

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR WHEEL CPL. ORANGE 6X17
6901000114404
|
$1,485.21 | ||
|
Available to order. Add to View Price |
|||
|
#2
GR.BALL BEAR. 6205-2RSHC3HMTF7
0625062052
|
$36.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING SPACER TUBE
69010011000
|
$29.81 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP DIN0472-52X2
0472052200
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT SEAL RING 30X52X7
0760305271
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
DIST.BUSHING REAR WHEEL R/S 08
69010013000
|
$50.37 | ||
|
Available to order. Add to View Price |
|||
|
#7
VALVE CPL. BREMBO DUKE 2003
58709076000
|
$10.22 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPING RUBBER 05
61010059000
|
$110.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
CHAIN 525 INCL. MASTER LINK
69010165108
Superseded by 60010365118
|
$195.13 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPROCKET SUPPORT CPL. BLACK
6901005004430
|
$289.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER CHAIN WHEEL SUPPORT
69010012000
|
$23.19 | ||
|
Available to order. Add to View Price |
|||
|
#12
BALL BEARING 6006 DDU2CG23S6NM
0625060060
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEAR.DIST. RING 30,3X37,8X4,65
69010054000
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#14
REAR SPROCKET 38-T STEEL 05
61010051138
|
$88.76 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT FOR SPROCKET SUPPORT 05
61010056000
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT REAR SPROCKET 05
61010057000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRAKE DISC KTM 690 08
69010060000
|
$176.76 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPECIAL SCREW M8X18 05
61009062018
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CONNECTING LINK F. 69010165108
69010166000
|
$28.04 | ||
|
Available to order. Add to View Price |
|||
|
#20
Rear axel cpl.
69010081144
Superseded by 69010181044
|
$89.53 | ||
|
Available to order. Add to View Price |
|||
|
#21
CHAIN TENSIONER R/S LC8 03
60010084000
|
$26.83 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR NUT M25X1,5 WS=32 05
61010086000
|
$20.23 | ||
|
Available to order. Add to View Price |
|||
|
#29
STICKER MARCH. 2L/S+2R/S WHITE
00050000120
|
$16.16 | ||
|
Available to order. Add to View Price |
|||
|
#99
REAR WHEEL REPAIR KIT
69010015000
|
$105.04 | ||
|
Available to order. Add to View Price |
|||
