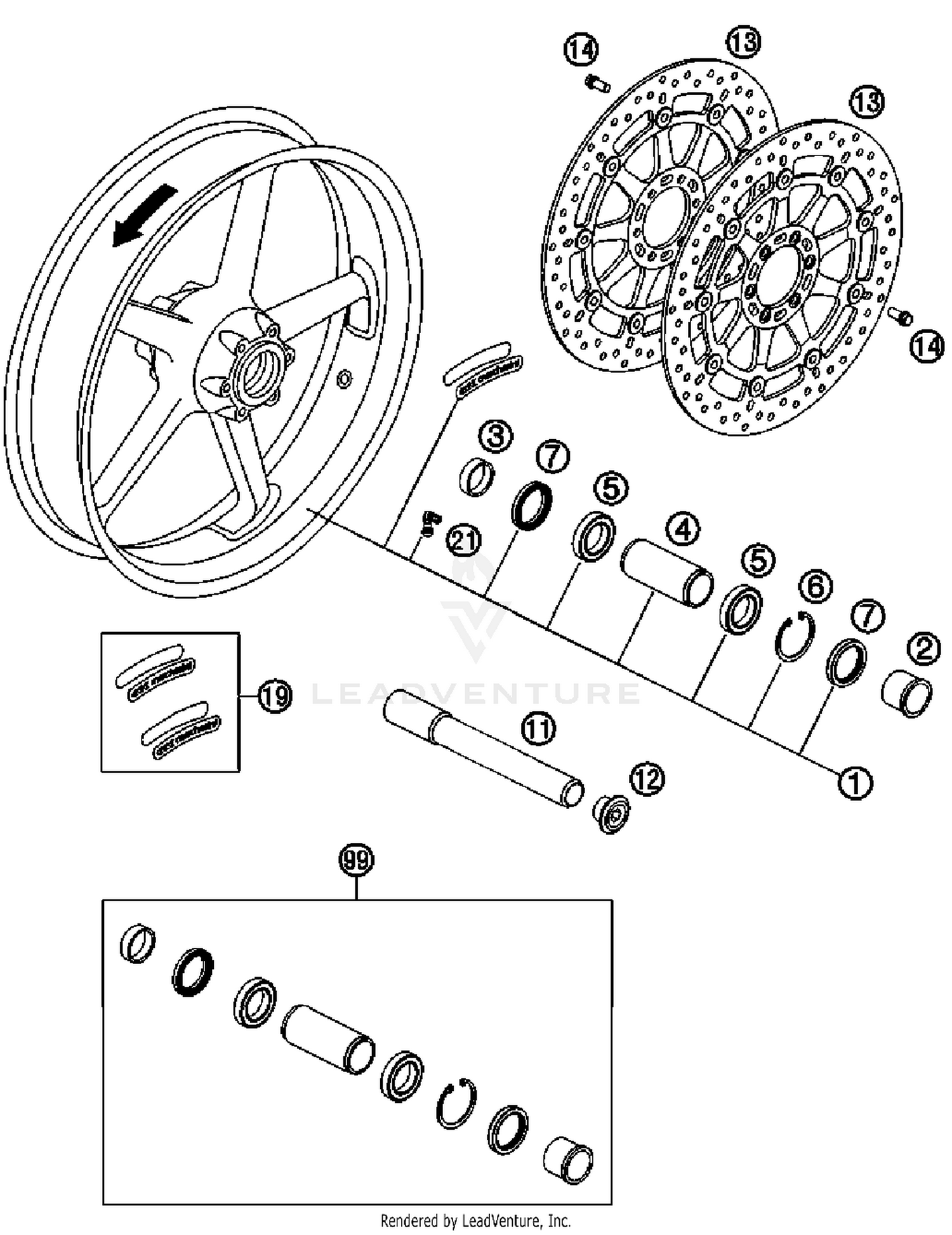

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT WHEEL CPL. ORANGE
6100900114404
|
$1,342.21 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER BUSH. FR. WHEEL L/S 05
61009012000
|
$21.77 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER BUSH. FR. WHEEL R/S 03
60009013000
|
$17.48 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING SPACER TUBE FRONT 05
61009011000
|
$26.83 | ||
|
Available to order. Add to View Price |
|||
|
#5
GR.BALL BEAR.6906 DDU2CG23S6NM
0625069068
|
$40.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
LOCK RING DIN0472-48X1,75
0472048175
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT SEAL RING 35X47X7 TC
0760354771
|
$10.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
Wheel spindle, front wheel
61009081000
Superseded by 61009081200
|
$95.47 | ||
|
Available to order. Add to View Price |
|||
|
#12
steering head screw
6900103600001
Superseded by 6900113600001
|
$19.68 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRAKE DISC FRONT D=320X5
6900906000030
|
$499.83 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPECIAL SCREW M8X18 05
61009062018
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
STICKER MARCH. 2L/S+2R/S WHITE
00050000120
|
$16.16 | ||
|
Available to order. Add to View Price |
|||
|
#21
VALVE ANGLED 90° 05
61009076000
|
$19.35 | ||
|
Available to order. Add to View Price |
|||
|
#99
FRONT WHEEL REP. KIT
69009015000
Superseded by 61009015000
|
$110.65 | ||
|
Available to order. Add to View Price |
|||
