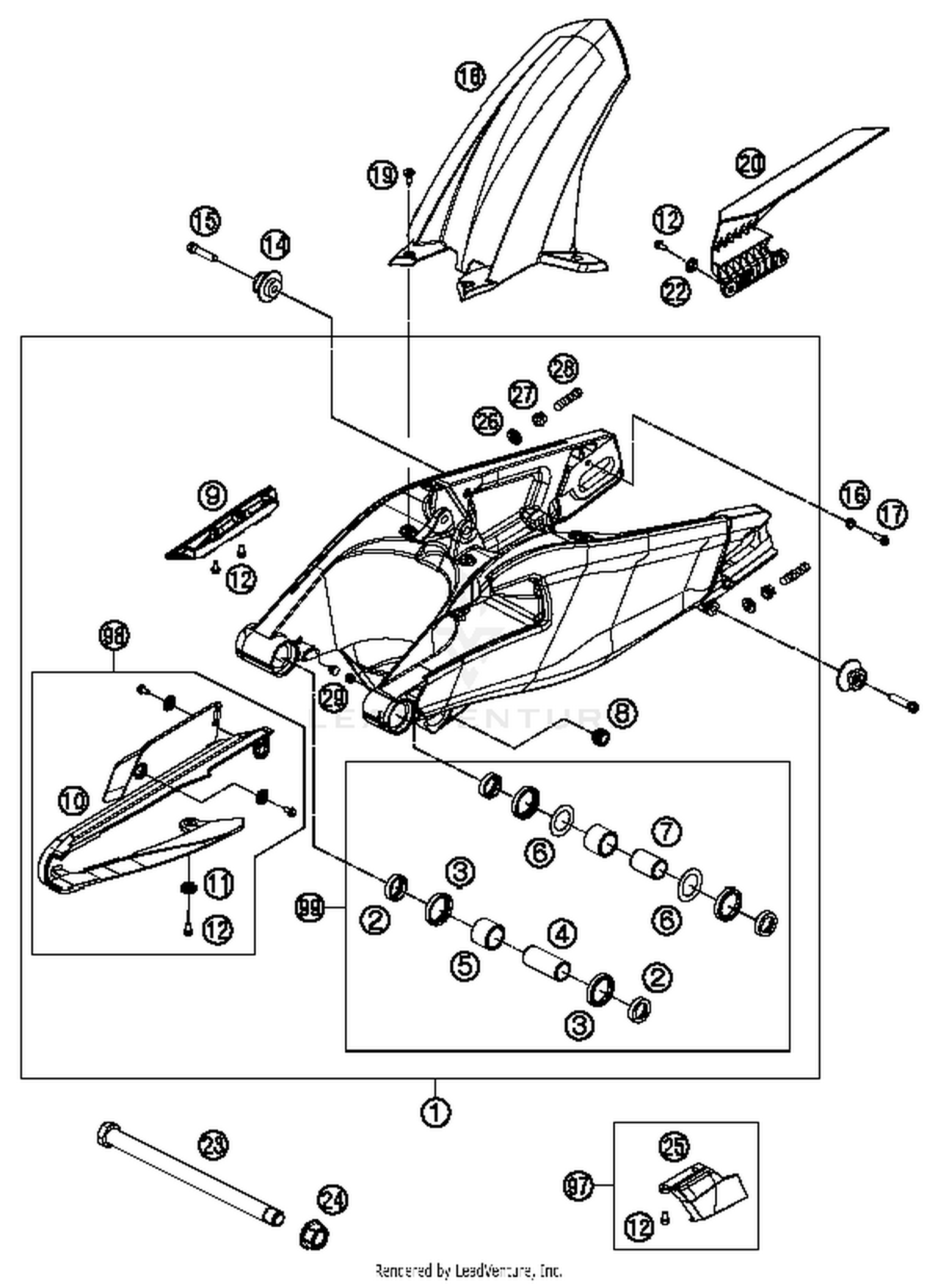

Swing Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWING ARM CPL. RC8 BLACK 2010
6900403024433
|
$2,131.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUCKET F. SHAFT SEAL RING 03
60004034000
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT SEAL RING 30X40X7
0760304073
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
INNER RING JR 20X25X56,5
69004032000
|
$42.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
NEEDLE BUSH HK2526B 03
60004031000
|
$12.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
STOP DISK 03
60004033000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
INNER RING JR20X25X38,5 03
60004032000
|
$21.33 | ||
|
Available to order. Add to View Price |
|||
|
#8
Rivet nut M10
69004095000
Superseded by 69004095100
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRAKE HOSE GUIDE
69013010000
|
$6.08 | ||
|
Available to order. Add to View Price |
|||
|
#10
CHAIN SLIDING GUARD
69004066200
|
$47.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSH FOR CHAINSLIDER GUARD 02
46104066050
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
EJOT SPIRAL SCREW SF M5X10-K
0009050106
|
$2.99 | ||
|
Unavailable |
|||
|
#14
SUPPORT F. LIFITNG GEAR
69004040000
|
$18.03 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPECIAL SCREW M8X35 ISA45
69004030010
|
$10.66 | ||
|
Available to order. Add to View Price |
|||
|
#16
BUSHING F. BRAKE-CAL. BRACKET
69004072000
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#17
HH collar screw M6x16 TX30 SL
0025060166S
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SPLASH PROTECTION
69004050000
|
$19.90 | ||
|
Available to order. Add to View Price |
|||
|
#19
special screw M5x17
69008021060
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
UPPER CHAIN GUARD RC8
6900406010033
|
$9.44 | ||
|
Available to order. Add to View Price |
|||
|
#22
bushing chain protection
69004060050
Superseded by 69004060150
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
Swingarm pivot
69004037144
Superseded by 69004037344
|
$86.78 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR NUT M19X1,5 SW=27MM
60004038000
Superseded by 60004038200
|
$21.11 | ||
|
Available to order. Add to View Price |
|||
|
#25
LOWER CHAIN GUIDE
6900406100033
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER F. CHAIN ADJUSTER
69304030040
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
HH COLLAR NUT M10X1,25 WS=13
58414030000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
screw M10x1.25x50 WS10
50304040100
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLUG SFL12 GREY 05
60004042000
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#97
CHAIN GUIDE KIT REAR RC8
6900406101033
|
$8.39 | ||
|
Available to order. Add to View Price |
|||
|
#98
CHAIN GUARD KIT 10-13
69004066210
|
$72.04 | ||
|
Available to order. Add to View Price |
|||
|
#99
SWING ARM REP. KIT 08-14
69004230010
|
$113.29 | ||
|
Available to order. Add to View Price |
|||
