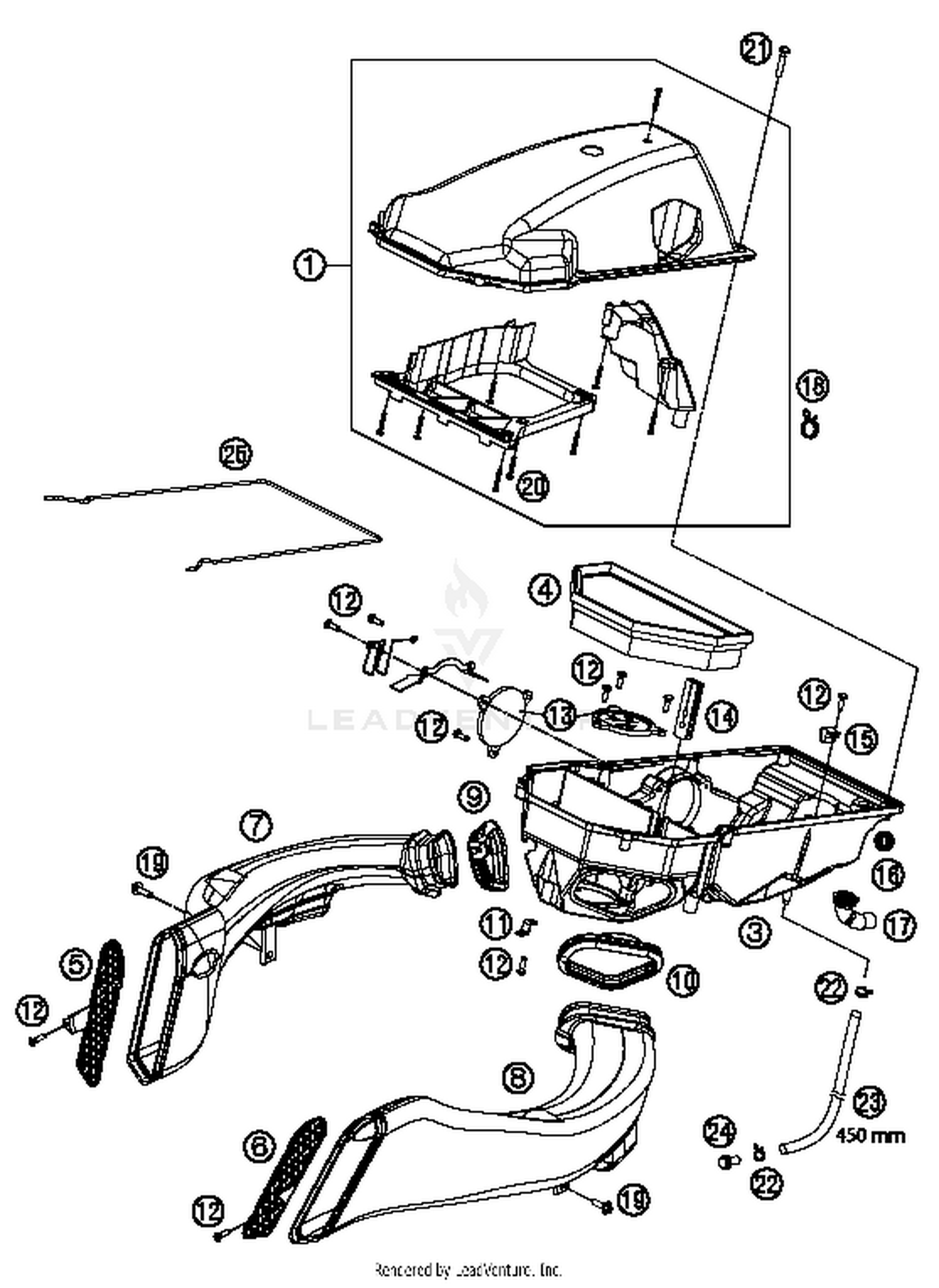

Air Filter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FILTER BOX UPPER PART CPL.
69006002244
|
$81.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
FILTER BOX LOWER PART 09
69006001100
|
$45.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
FILTER ELEMENT
69006015100
|
$31.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
PROT. GRILL INTAKE SNORKEL R/S
69006041060
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PROT. GRILL INTAKE SNORKEL L/S
69006040060
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
INTAKE SNORKEL R/S
69006041000
|
$34.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
INTAKE SNORKEL L/S
69006040000
|
$32.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
SNORKEL SEALING R/S
69006041050
|
$30.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
SNORKEL SEALING L/S
69006040050
|
$28.04 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET F. EFI-PLUG
69006015050
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#12
EJOT PT SCREW K50X16 1451
0081050161
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
FILTER BOX COVER R/S
69006004000
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#14
THROTTLE ROPE CHANNEL
69006001030
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#15
PVC-CLAMP HEYCO 13,9 3379
69007029000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PROTECTION SLEEVE FUEL HOSE
69006001040
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#17
MOLDED HOSE ENGINE BREATHER
69006087000
|
$25.40 | ||
|
Available to order. Add to View Price |
|||
|
#18
YDNAC-CLAMP 10173 (16MM) '98
58431082100
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HH collar screw M6x20 TX30
0024060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
PLASTIC SCREW KA40X25WN1412
0081400253
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPECIAL SCREW K60X30 WS=6
0017060303
Superseded by 0017060305
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP YDNAC 10128 12MM
58031005000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
HOSE NBR 7X11 PER METER
60015019001
|
$9.01 | ||
|
Available to order. Add to View Price |
|||
|
#24
HH collar screw M8x12 TX40
0025080126
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET F. AIRBOX
69006001060
|
$12.53 | ||
|
Available to order. Add to View Price |
|||
