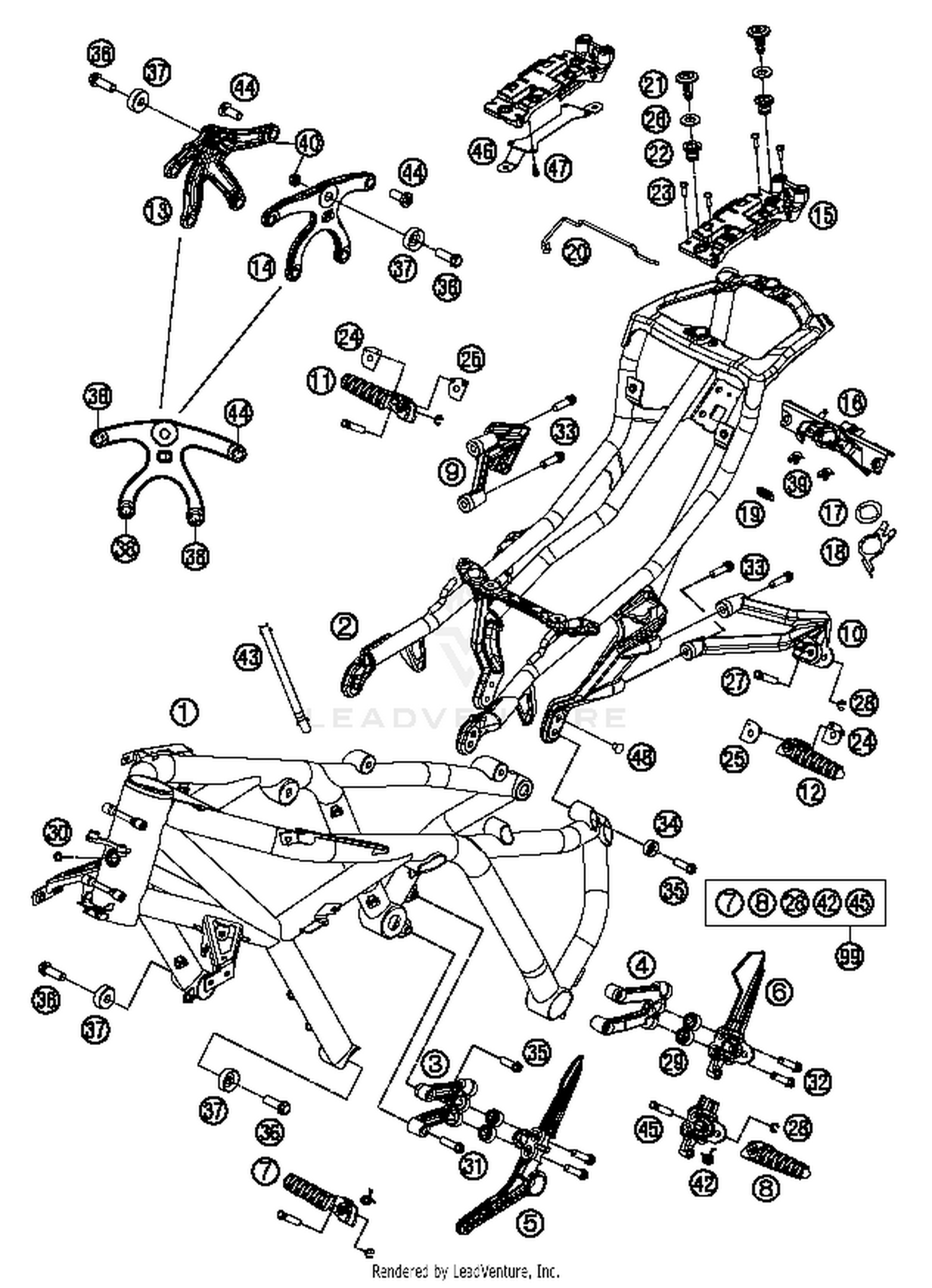

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME ''693KA'' ORANGE 11
6930300100004
|
$2,230.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
SUB FRAME BLACK 09
6900300200033
|
$769.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
FOOTREST BRACKET R/S 09
6900303900033S
|
$140.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
FOOTREST BRACKET L/S 09
6900303800033S
|
$108.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
FOOTREST MOUNTING R/S 09
6900303905033S
|
$180.06 | ||
|
Available to order. Add to View Price |
|||
|
#6
FOOTREST MOUNTING L/S 09
6900303805033S
|
$184.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
Footrest front right
6900304100033S
Superseded by 6900314110033S
|
$41.46 | ||
|
Available to order. Add to View Price |
|||
|
#8
Footrest front left
6900304000033S
Superseded by 6900314010033S
|
$50.59 | ||
|
Available to order. Add to View Price |
|||
|
#9
FOOTREST BRACKET REAR R/S
6900304900033S
|
$161.47 | ||
|
Available to order. Add to View Price |
|||
|
#10
FOOTREST BRACKET REAR L/S
6900304800033S
|
$178.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
Footrast back right cpl.
6900305103333S
Superseded by 6900305113333S
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Footrast back left cpl.
6900305003333S
Superseded by 6900305013333S
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
ENGINE SUPPORT R/S 08
69003006000
|
$80.21 | ||
|
Available to order. Add to View Price |
|||
|
#14
ENGINE SUPPORT L/S 08
69003005000
|
$78.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
REAR SEAT ADJUSTMENT
69008025100
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
LOCK BRIDGE
69008027000
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER LEVER REAR SEAT RELEASE
69008025070
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
LEVER REAR SEAT RELEASE
69008025160
|
$13.11 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING F. REAR SEAT LOCK
69008025080
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
ADJUSTMENT WIRE REAR SEAT
69008025150
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLOSURE CAP
69008026150
|
$7.55 | ||
|
Unavailable |
|||
|
#22
GUIDE BUSHING
69008026000
|
$6.48 | ||
|
Unavailable |
|||
|
#23
EJOT PT SCREW K50X16 1451
0081050161
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
ENGAGE PANEL FOOTREST R/S 03
60003052000
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
ENGAGE PANEL FOOTREST L/S 03
60003152000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER RC8
69008026060
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT FOR FOOTREST REAR 03
60003044000
|
$10.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
retaining washer DIN 6799 - 6
0799060003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
DISTANCE BUSHING 8,5X21X14
6900304700001
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#30
SHAFT SEAL RING17X10X3 NBR
0760171030
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
HH COLLAR SCREW M8X30 TX40
0025080306S
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
HH COLLAR SCREW M8X35 TX40
0025080356S
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
HH collar screw M8x55 TX40
0025080556
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
WASHER SUB FRAME MOUNTING 09
6900300400033
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#35
HH COLLAR SCREW M8X25 TX40
0025080256S
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#36
SHCS M10x30 TX45
0035100309S
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER ENGINE SUPPORT 09
6900300700033
|
$8.68 | ||
|
Available to order. Add to View Price |
|||
|
#38
SHCS M10x24 TX45
0035100249
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
clip nut M5
69008021080
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
Rivet nut M10
69004095000
Superseded by 69004095100
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#42
SPRING FOOTREST FRONT 05
61003042000
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
CABLE DUCT BRAKE LIGHT SW. RC8
69011047000
|
$10.33 | ||
|
Available to order. Add to View Price |
|||
|
#44
SHCS M10x24 TX45
0025100246
Superseded by 0035100249
|
$3.99 | ||
|
Unavailable |
|||
|
#45
footrest bolt, rear
60003044100
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#46
EJECTOR F. PILLION SEAT
69308025050
|
$24.08 | ||
|
Available to order. Add to View Price |
|||
|
#47
EJOT Delta PT K40x12
0081040121
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
COVER PLUG ZK 10/7
69303002005
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#99
FOOTPEG KIT RC8R 09-12
6900304001033
|
$101.19 | ||
|
Available to order. Add to View Price |
|||
