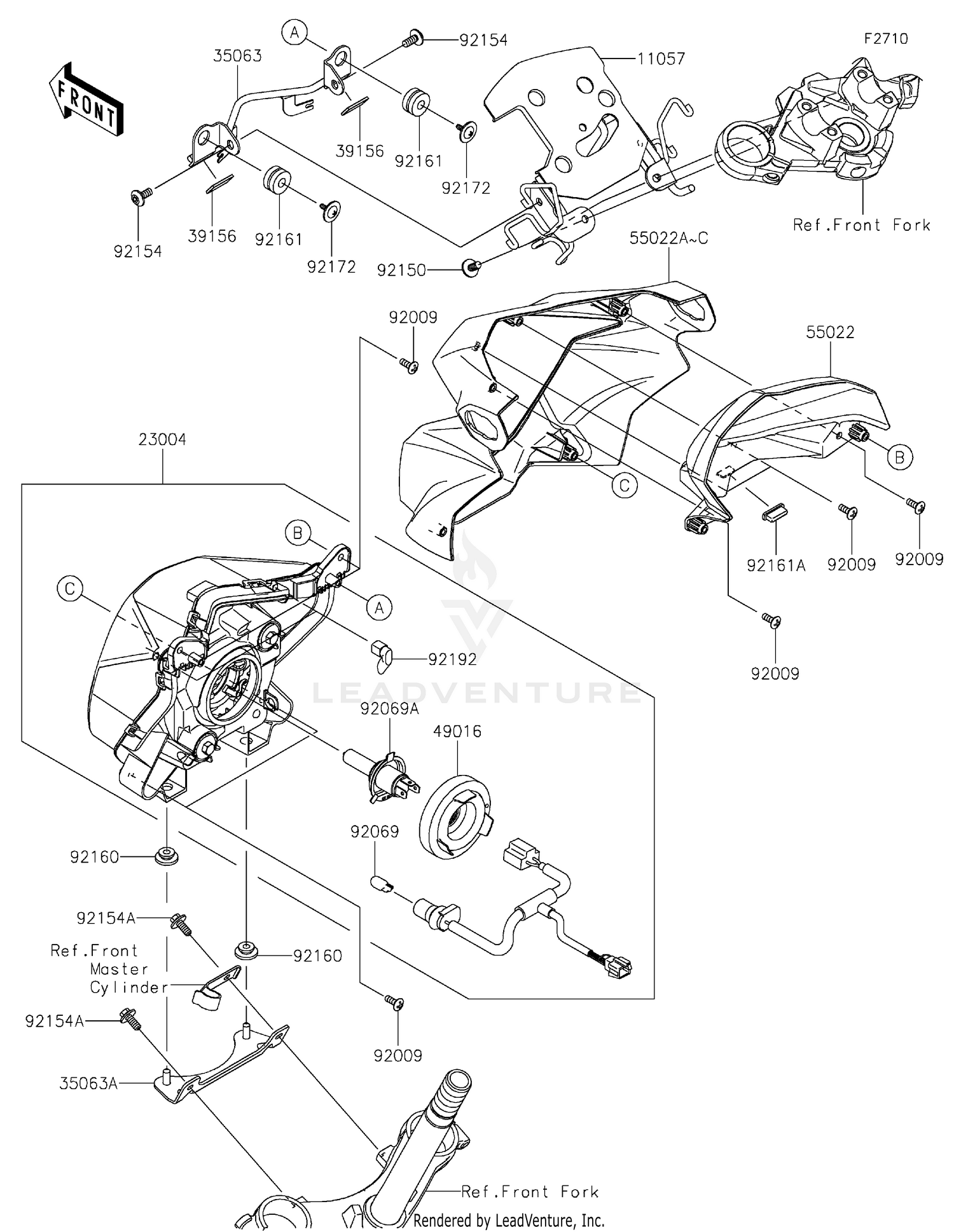

Headlight(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11057
BRACKET,HEAD LAMP
11057-0608
|
$101.28 | ||
|
Available to order. Add to View Price |
|||
|
#23004
LAMP-HEAD
23004-0362
|
$345.18 | ||
|
Available to order. Add to View Price |
|||
|
#35063
STAY
35063-1334
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#35063A
STAY,HEAD LAMP
35063-1335
|
$11.77 | ||
|
Available to order. Add to View Price |
|||
|
#39156
PAD,13X25X2
39156-2137
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL
49016-0627
|
$14.70 | ||
|
Available to order. Add to View Price |
|||
|
#55022
COVER-HEAD LAMP,UPP
55022-0317
|
$49.83 | ||
|
Available to order. Add to View Price |
|||
|
#55022A
COVER-HEAD LAMP,LWR,P.S.GRAY
55022-0318-36S
|
$95.97 | ||
|
Available to order. Add to View Price |
|||
|
#55022B
COVER-HEAD LAMP,LWR,P.N.TEAL
55022-0318-68D
|
$97.03 | ||
|
Available to order. Add to View Price |
|||
|
#55022C
COVER-HEAD LAMP,LWR,M.F.S.BLK
55022-0318-739
|
$99.40 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,5X14
92009-1197
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 5W
92069-0059
Superseded by 92069-1016
|
$6.68 | ||
|
Available to order. Add to View Price |
|||
|
#92069A
BULB,12V 35/35W
92069-0091
|
$36.21 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,6X14
92150-1340
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,SOCKET,6X14
92154-2161
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#92154A
BOLT,6X16
92154-2162
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1613
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER
92161-0054
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER
92161-1813
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,TAPPING+PW,5X14
92172-0477
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#92192
TUBE,BREATHER
92192-1528
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
