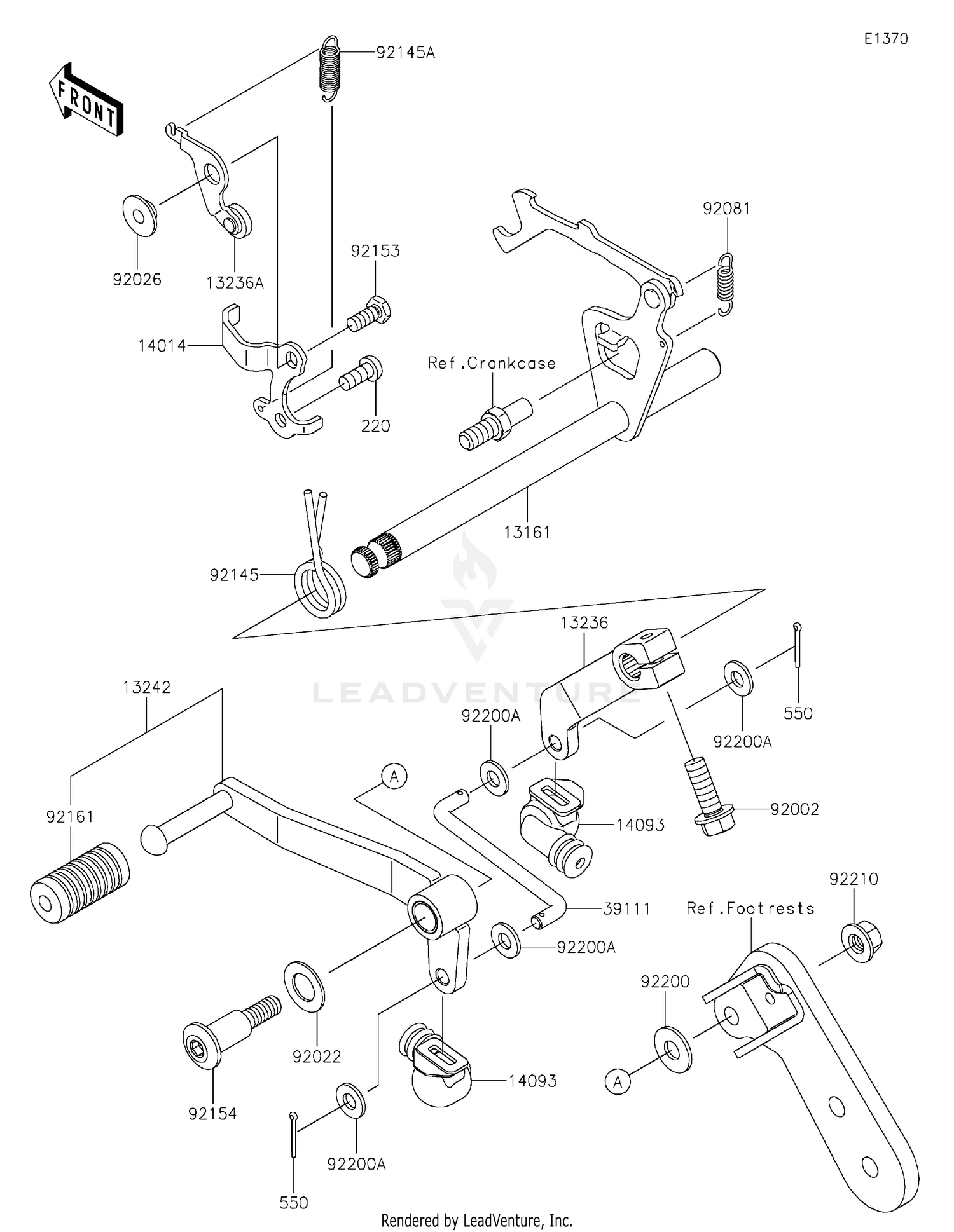

Gear Change Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13161
LEVER-COMP-CHANGE SHAFT
13161-0575
|
$70.81 | ||
|
Available to order. Add to View Price |
|||
|
#13236
LEVER-COMP
13236-0766
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#13236A
LEVER-COMP,POSITION
13236-1256
|
$9.47 | ||
|
Available to order. Add to View Price |
|||
|
#13242
LEVER-ASSY-CHANGE,PEDAL
13242-0136
|
$48.37 | ||
|
Available to order. Add to View Price |
|||
|
#14014
PLATE-POSITION
14014-0558
|
$13.68 | ||
|
Available to order. Add to View Price |
|||
|
#14093
COVER
14093-0321
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,6X14
220AA0614
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#39111
ROD-TIE
39111-0380
|
$6.14 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,2.0X15
550AA2015
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X20
92002-1237
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,12.5X22X1.2
92022-072
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER
92026-1217
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,CHANGE LEVER
92081-076
|
$5.61 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING,CHANGE SHAFT RETURN
92145-0984
|
$7.06 | ||
|
Available to order. Add to View Price |
|||
|
#92145A
SPRING,CHANGE LEVER
92145-0986
|
$1.54 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,6X14
92153-0571
|
$1.14 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT
92154-1305
|
$10.20 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,CHANGE PEDAL
92161-1357
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,8.5X20X1.6
92200-0490
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER,7.1X15X1.6
92200-2366
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,FLANGED,8MM
92210-1376
|
$0.56 | ||
|
Available to order. Add to View Price |
|||
