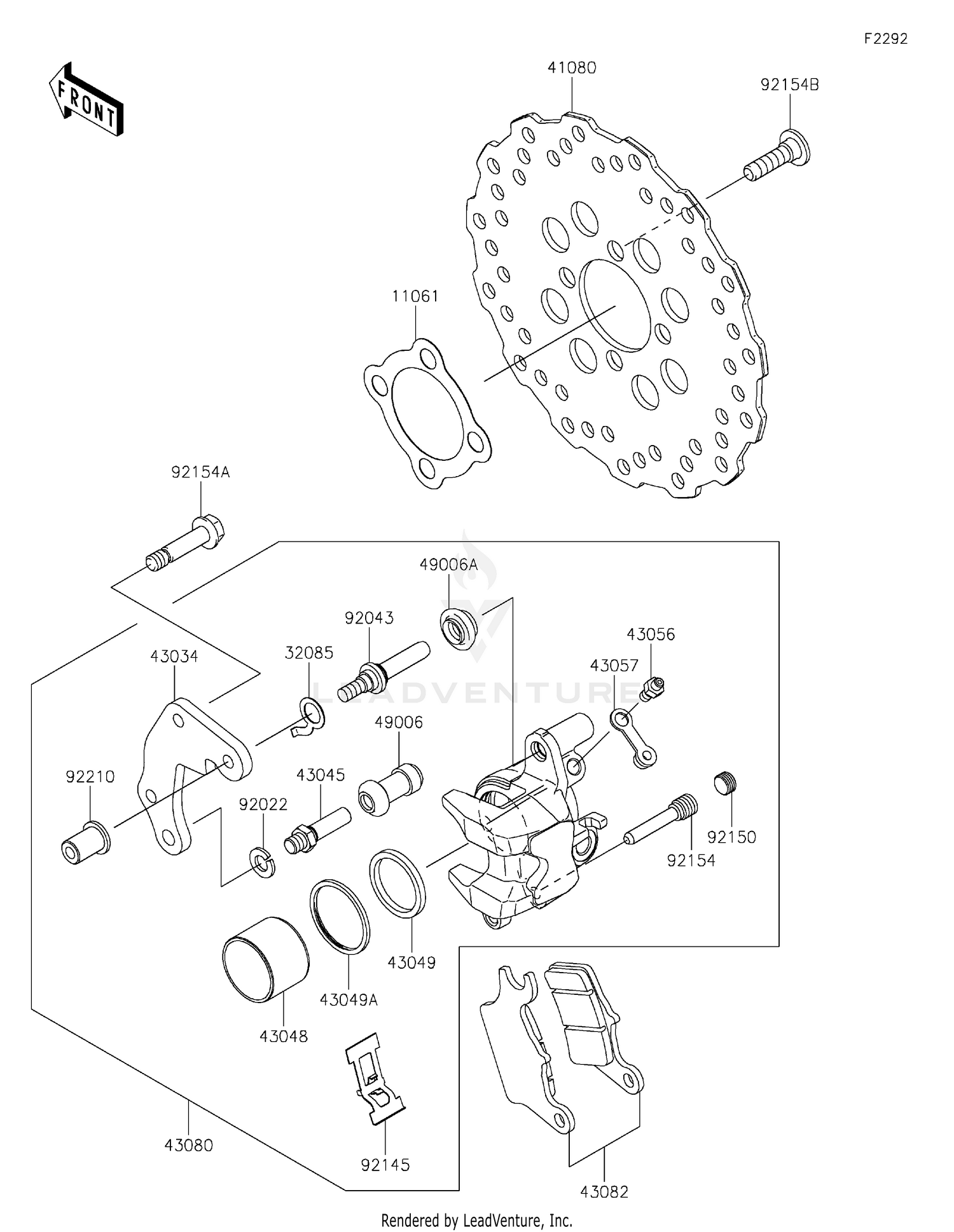

Front Brake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11061
GASKET,BRAKE DISC
11061-0006
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#32085
STOPPER
32085-0737
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#41080
DISC,FR
41080-0645
|
$264.97 | ||
|
Available to order. Add to View Price |
|||
|
#43034
HOLDER-BRAKE
43034-0119
|
$120.68 | ||
|
Available to order. Add to View Price |
|||
|
#43045
SHAFT-CALIPER
43045-1010
|
$21.14 | ||
|
Available to order. Add to View Price |
|||
|
#43048
PISTON-CALIPER
43048-0022
|
$52.23 | ||
|
Available to order. Add to View Price |
|||
|
#43049
PACKING,PISTON SEAL
43049-1023
|
$14.65 | ||
|
Available to order. Add to View Price |
|||
|
#43049A
PACKING,PISTON SEAL
43049-1024
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#43056
BREATHER-BRAKE
43056-0004
|
$13.82 | ||
|
Available to order. Add to View Price |
|||
|
#43057
CAP-BREATHER
43057-1001
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#43080
CALIPER-SUB-ASSY,FR,R.GOLD
43080-0159-483
|
$181.65 | ||
|
Available to order. Add to View Price |
|||
|
#43082
PAD-ASSY-BRAKE
43082-0134
|
$68.61 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,CALIPER
49006-1088
|
$11.91 | ||
|
Available to order. Add to View Price |
|||
|
#49006A
BOOT,CALIPER
49006-1242
|
$5.61 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,WAVE
92022-1373
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,8X17
92043-0757
|
$21.82 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING
92145-0939
|
$14.07 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,PLUG
92150-1692
|
$8.08 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT
92154-1120
|
$10.18 | ||
|
Available to order. Add to View Price |
|||
|
#92154A
BOLT,FLANGED,8X36
92154-1260
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#92154B
BOLT,SOCKET,8X30
92154-1865
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT
92210-0615
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
