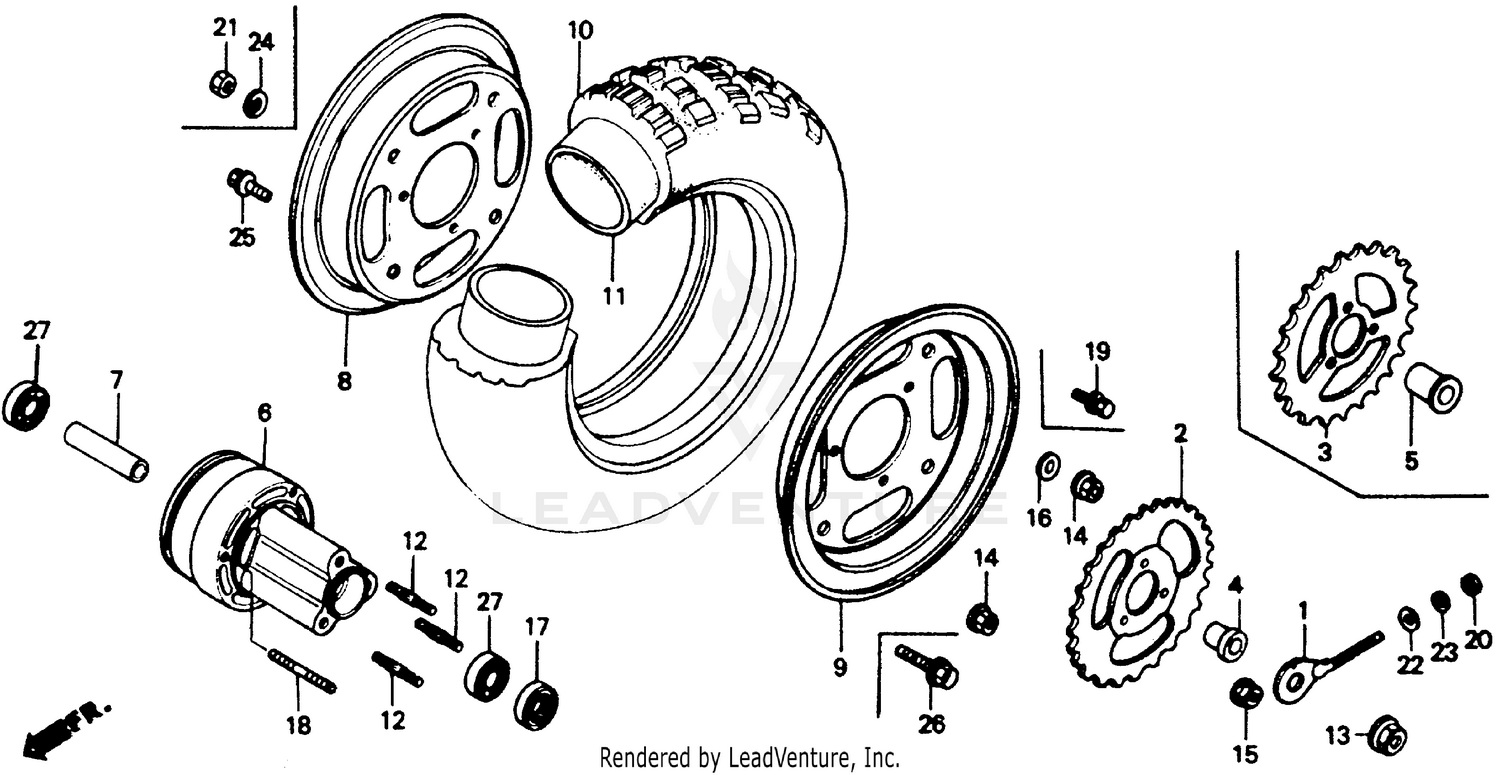

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ADJUSTER S, R. CHAIN
95014-10010
|
$5.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
SPROCKET, FINAL DRIVEN (37T)
41201-GW8-670
Superseded by 41201-GW8-680
|
$96.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, FINAL DRIVEN (37T)
41201-GW8-680
|
$96.11 | ||
|
Unavailable |
|||
|
#4
COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)
42312-GW8-670
|
$5.97 | ||
|
Unavailable |
|||
|
#6
HUB, RR. WHEEL *NH138* (SHASTA WHITE) (NOT AVAILABLE)
42601-181-830ZB
|
$171.43 | ||
|
Unavailable |
|||
|
#7
COLLAR, RR. AXLE DISTANCE
42620-165-405
|
$7.90 | ||
|
Unavailable |
|||
|
#7
COLLAR, RR. AXLE DISTANCE
42620-165-890
Superseded by 42620-165-405
|
$7.90 | ||
|
Unavailable |
|||
|
#8
RIM, R. WHEEL *NH138* (SHASTA WHITE)
42701-165-891ZA
|
$65.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
RIM, L. WHEEL *NH138* (SHASTA WHITE)
42702-165-891ZA
|
$65.09 | ||
|
Available to order. Add to View Price |
|||
|
#10
TIRE, WHEEL (3.50-8) (2PR/35J) (INOUE)
42711-181-003
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
TUBE, TIRE (3.00-8) (IRC)
42712-GC3-004
|
$31.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
TUBE, TIRE (3.00-8) (IRC)
44712-045-670
Superseded by 42712-GC3-004
|
$31.45 | ||
|
Unavailable |
|||
|
#11
TUBE, TIRE (3.00-8) (IRC)
44712-120-154
Superseded by 42712-GC3-004
|
$31.45 | ||
|
Unavailable |
|||
|
#12
BOLT, STUD (8X25) (NOT AVAILABLE)
92910-08025-3E
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, FLANGE (12MM) (FUSERASHI)
90306-KF0-003
|
$4.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
NUT, HEX. (8MM)
90309-357-000
|
$4.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
OIL SEAL (18X32X8)
91251-045-005
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT-WASHER (8X16)
93412-08016-00
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#21
NUT, HEX. (8MM)
94030-08000
|
$1.12 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#22
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#23
WASHER, SPRING (6MM)
94111-06000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, SPLIT WHEEL
90194-567-010
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, RADIAL BALL (6201U)
96140-62010-10
|
$12.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
