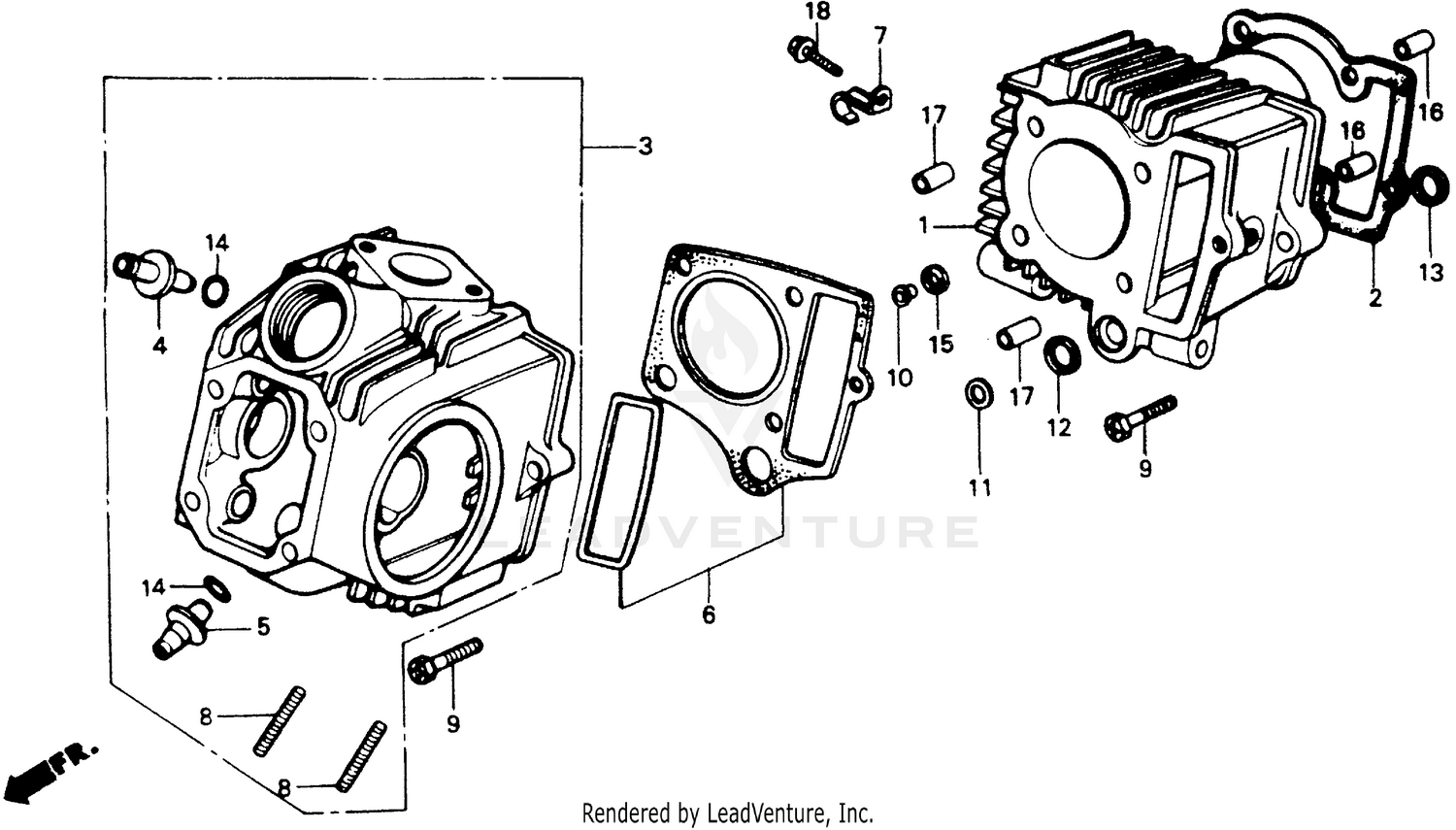

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER
12101-GB2-000
|
$232.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CYLINDER
12191-GB2-000
Superseded by 12191-GW8-683
|
$10.75 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CYLINDER
12191-GB2-004
Superseded by 12191-GW8-683
|
$10.75 | ||
|
Unavailable |
|||
|
#2
GASKET, CYLINDER
12191-GB2-306
Superseded by 12191-GW8-683
|
$10.75 | ||
|
Unavailable |
|||
|
#2
GASKET, CYLINDER
12191-GW8-681
Superseded by 12191-GW8-683
|
$10.75 | ||
|
Unavailable |
|||
|
#2
GASKET, CYLINDER
12191-GW8-682
Superseded by 12191-GW8-683
|
$10.75 | ||
|
Unavailable |
|||
|
#3
CYLINDER HEAD (NOT AVAILABLE)
12200-165-621
|
$185.96 | ||
|
Unavailable |
|||
|
#4
GUIDE, IN. VALVE (OVER SIZE)
12237-GB4-305
|
$16.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, EX. VALVE (OVER SIZE)
12245-GB4-305
|
$16.22 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET ASSY., CYLINDER HEAD (NOT AVAILABLE)
12250-GB2-000
Superseded by 12250-GW8-680
|
$29.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, STUD (6X32)
90033-041-020
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (6MM)
90082-035-010
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR (9.5MM)
90602-GB0-911
|
$2.10 | ||
|
Unavailable |
|||
|
#11
COLLAR (14.8MM)
90603-GB0-911
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING (14.5MM)
91301-GB0-911
Superseded by 91301-GF6-003
|
$8.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING (14.5MM)
91301-GF6-003
|
$8.40 | ||
|
Unavailable |
|||
|
#13
GASKET, RUBBER (16MM)
91303-035-000
|
$6.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
O-RING (9X1.6) (ARAI)
91305-028-158
Superseded by 91305-028-900
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (9X1.6) (ARAI)
91305-028-900
|
$3.40 | ||
|
Unavailable |
|||
|
#15
GASKET, RUBBER (9MM)
91306-141-000
|
$5.84 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN A, DOWEL (8X12)
94301-08120
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN A, DOWEL (8X12)
90702-GB6-910
Superseded by 94301-08120
|
$2.40 | ||
|
Unavailable |
|||
|
#17
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
