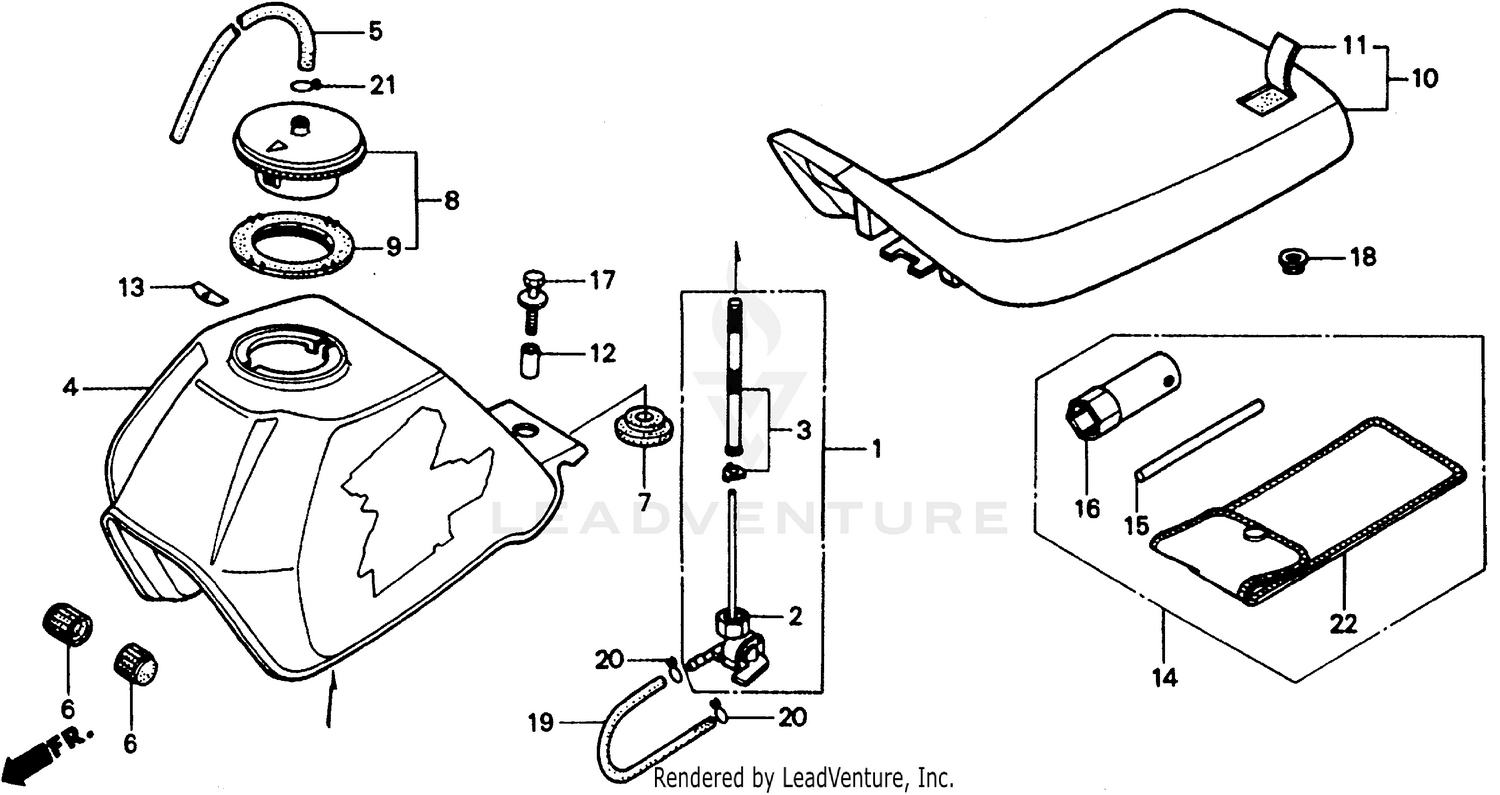

Fuel Tank + Seat 88-93 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PETCOCK ASSY.
16950-GW8-670
|
$83.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREEN SET
16952-166-015
Superseded by 16952-166-305
|
$21.85 | ||
|
Unavailable |
|||
|
#4
TANK SET, FUEL *NH138* (WL) (SHASTA WHITE) (NOT AVAILABLE)
17500-GW8-870ZA
|
$310.34 | ||
|
Unavailable |
|||
|
#5
TUBE, FUEL CAP BREATHER (NOT AVAILABLE)
17520-GW8-670
|
$4.82 | ||
|
Unavailable |
|||
|
#6
RUBBER, FR. FUEL TANK (NOT AVAILABLE)
17611-GW8-670
|
$3.35 | ||
|
Unavailable |
|||
|
#7
RUBBER, FUEL TANK
17613-120-000
|
$6.51 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, FUEL FILLER
17620-GM2-000
Superseded by 17620-GM2-010
|
$29.39 | ||
|
Unavailable |
|||
|
#9
GASKET
17632-176-770
Superseded by 17632-176-772
|
$13.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
17632-176-771
Superseded by 17632-176-772
|
$13.36 | ||
|
Unavailable |
|||
|
#10
SEAT (TYPE1) (NOT AVAILABLE)
77200-GW8-870
Superseded by 77200-GW8-A10ZA
|
$139.80 | ||
|
Unavailable |
|||
|
#11
COVER, SEAT
77201-GW8-307
Superseded by 77201-GW8-920
|
$50.19 | ||
|
Unavailable |
|||
|
#12
COLLAR B, RR. FENDER
80109-061-010
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
MARK, ARROW *NH138* (SHASTA WHITE)
87575-GW8-670ZB
|
$2.54 | ||
|
Unavailable |
|||
|
#14
TOOL SET (NOT AVAILABLE)
89010-GW8-670
|
$6.53 | ||
|
Unavailable |
|||
|
#15
BAR, PLUG WRENCH
89211-170-000
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#16
WRENCH, SPARK PLUG
89216-130-690
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT-WASHER (6X25)
93404-06025-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BULK HOSE, FUEL (4.5X3000) (4.5X130)
95001-45003-60M
|
$44.43 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP, TUBE (B8)
95002-02080
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CLIP, TUBE (C9)
95002-50000
|
$1.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BAG, TOOL (160MM)
99008-01600
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
