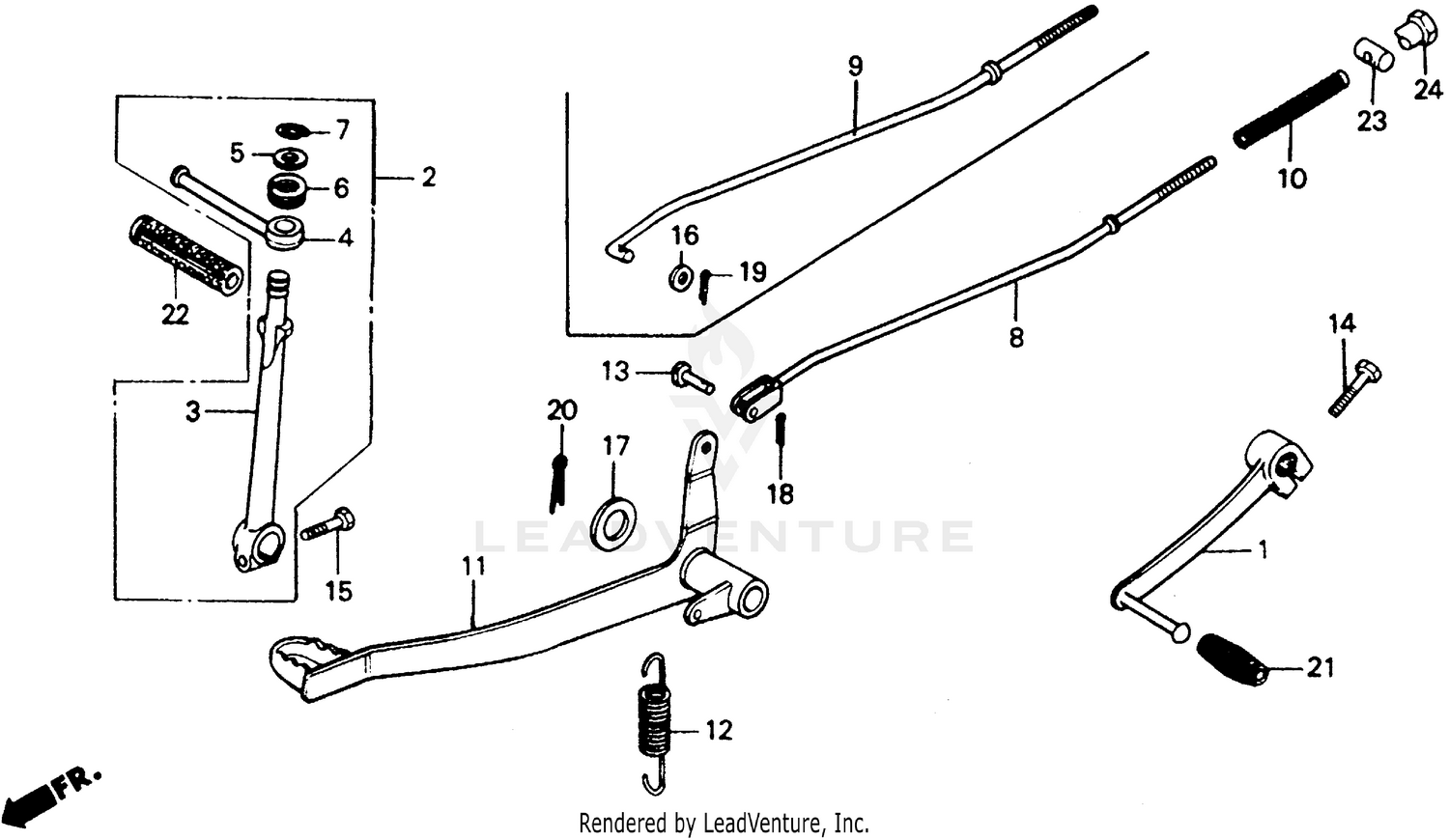

Brake Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, GEARSHIFT
24701-181-770
|
$47.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
ARM ASSY., KICK STARTER
28300-GW8-670
|
$59.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
ROD, RR. BRAKE (NOT AVAILABLE)
43451-GW8-770
|
$11.33 | ||
|
Unavailable |
|||
|
#10
SPRING A, BRAKE ROD
43472-KB9-750
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#11
PEDAL, BRAKE
46500-GW8-870
Superseded by 46500-GAR-000
|
$43.13 | ||
|
Unavailable |
|||
|
#12
SPRING, BRAKE PEDAL
46514-GW8-670
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN C, JOINT
95015-53000
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEX. (6X20)
92101-06020-0G
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. (6X22) (SOURCE: VINTAGE PARTS INC.)
92101-06022-0G
|
$0.75 | ||
|
Unavailable |
|||
|
#17
WASHER, PLAIN (14MM)
94102-14700
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, SPLIT (2.0X12)
94201-20120
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
PIN, COTTER (3.0X45)
94201-30250
Superseded by 94201-30450
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, COTTER (3.0X45)
94201-30300
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#20
PIN, COTTER (3.0X45)
94201-30400
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#20
PIN, SPLIT (3.0X45)
94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#21
RUBBER, CHANGE PEDAL
95011-40000
|
$1.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
RUBBER A, KICK STARTER
95011-51000
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#23
JOINT A, BRAKE ARM
95015-31001
|
$1.68 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT A, BRAKE ROD ADJUSTING
95015-41000
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
