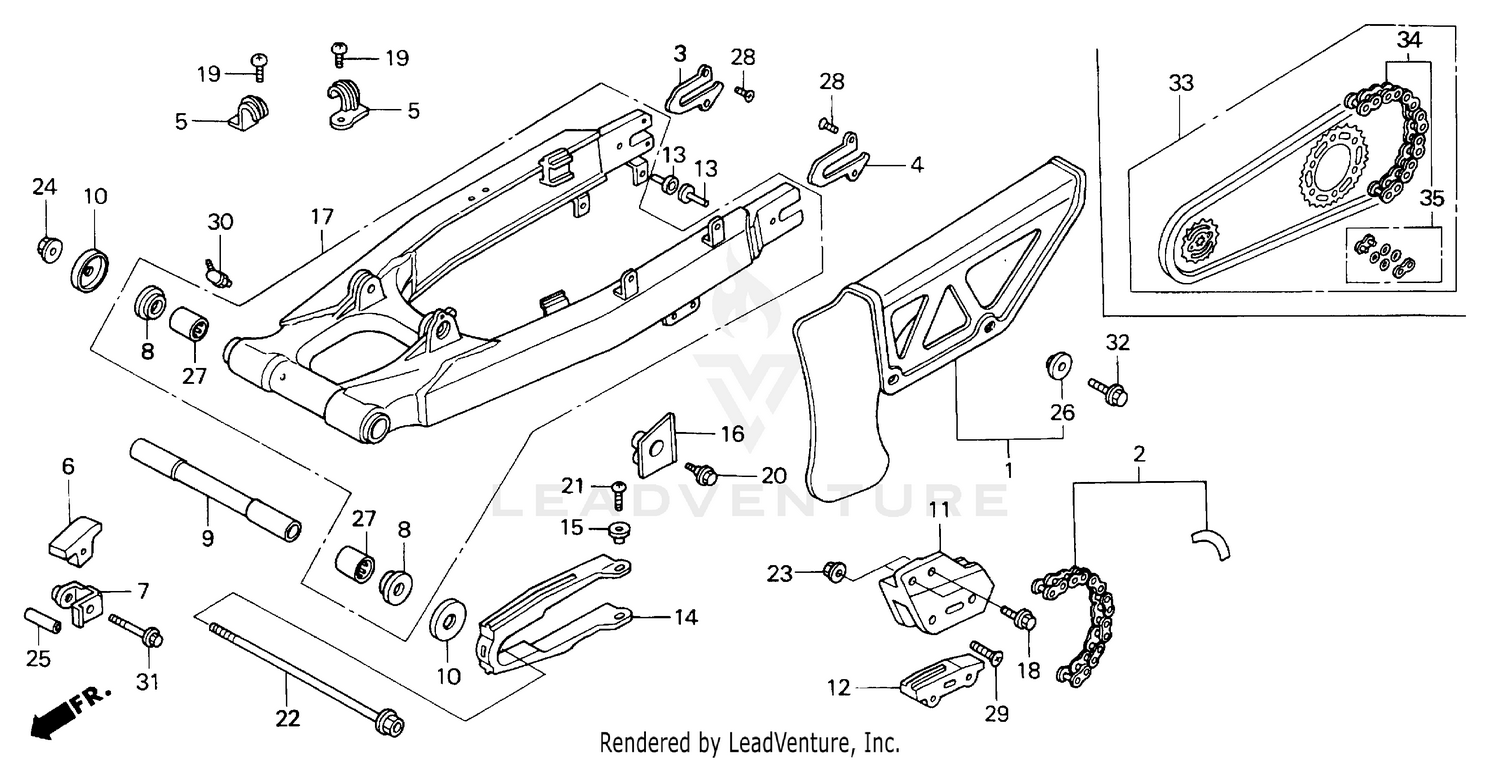

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE, DRIVE CHAIN
40510-KAE-870
|
$51.91 | ||
|
Available to order. Add to View Price |
|||
|
#1
CASE, DRIVE CHAIN
40510-KR6-000
Superseded by 40510-KAE-870
|
$51.91 | ||
|
Unavailable |
|||
|
#3
WASHER, R. RR. SWINGARM
42307-MY6-670
|
$37.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, L. RR. SWINGARM
42308-MY6-670
|
$37.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, RR. BRAKE HOSE
43468-KAE-000
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
SLIPPER, CHAIN
50911-MN1-670
|
$29.69 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, CHAIN SLIPPER
50912-MN1-670
|
$19.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH, PIVOT THRUST
52109-430-300
|
$19.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, SWINGARM
52141-MN1-670
|
$76.09 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, SWINGARM DUST SEAL (NOK)
52144-356-005
|
$20.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
GUIDE, CHAIN
52146-MN1-671
|
$41.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
SLIDER, CHAIN GUIDE
52147-MN1-670
|
$16.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, CHAIN ADJUSTER
52156-KV6-000
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
SLIDER, CHAIN
52170-MN1-681
|
$69.89 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, CHAIN SLIDER
52171-KR6-000
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
GUARD, CHAIN
52180-MY6-670
|
$52.96 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWINGARM SET
52200-MY6-305
|
$1,153.82 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X16)
90103-MY6-670
|
$4.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCREW, PAN (5X10)
90104-ML7-920
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X10)
90113-MY6-670
|
$4.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SCREW, PAN (5X8)
90115-KV3-700
|
$2.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, SWINGARM PIVOT
90121-KK3-830
|
$39.73 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, U (6MM)
90301-473-003
|
$5.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
NUT, U (14MM)
90305-GE8-003
|
$4.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
COLLAR, CHAIN SLIPPER
90501-MN1-680
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER (6X9)
90513-405-000
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER (6X9)
90513-428-900
Superseded by 90513-405-000
|
$2.51 | ||
|
Unavailable |
|||
|
#27
BEARING, NEEDLE (20X26X20) (NTN)
91070-GC4-601
|
$29.96 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, FLAT (5X10)
93600-05010-0A
|
$0.82 | ||
|
Unavailable |
|||
|
#29
SCREW, FLAT (6X45)
93600-06045-0A
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#30
NIPPLE, GREASE (B.T6S)
96201-80000
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X32)
96400-06032-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X12)
96300-06012-07
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#33
CHAIN KIT, DRIVE (520-110L) (RK/DAIDO)
06406-MY6-950
|
$182.67 | ||
|
Unavailable |
|||
|
#34
CHAIN, DRIVE (RK EXCEL) (RK520MOZ6-120LJ-FZ) (STANDARD LINK 120L) (STANDARD LINK 110L)
40540-MY6-306
Superseded by 40540-KV3-406
|
$188.85 | ||
|
Available to order. Add to View Price |
|||
