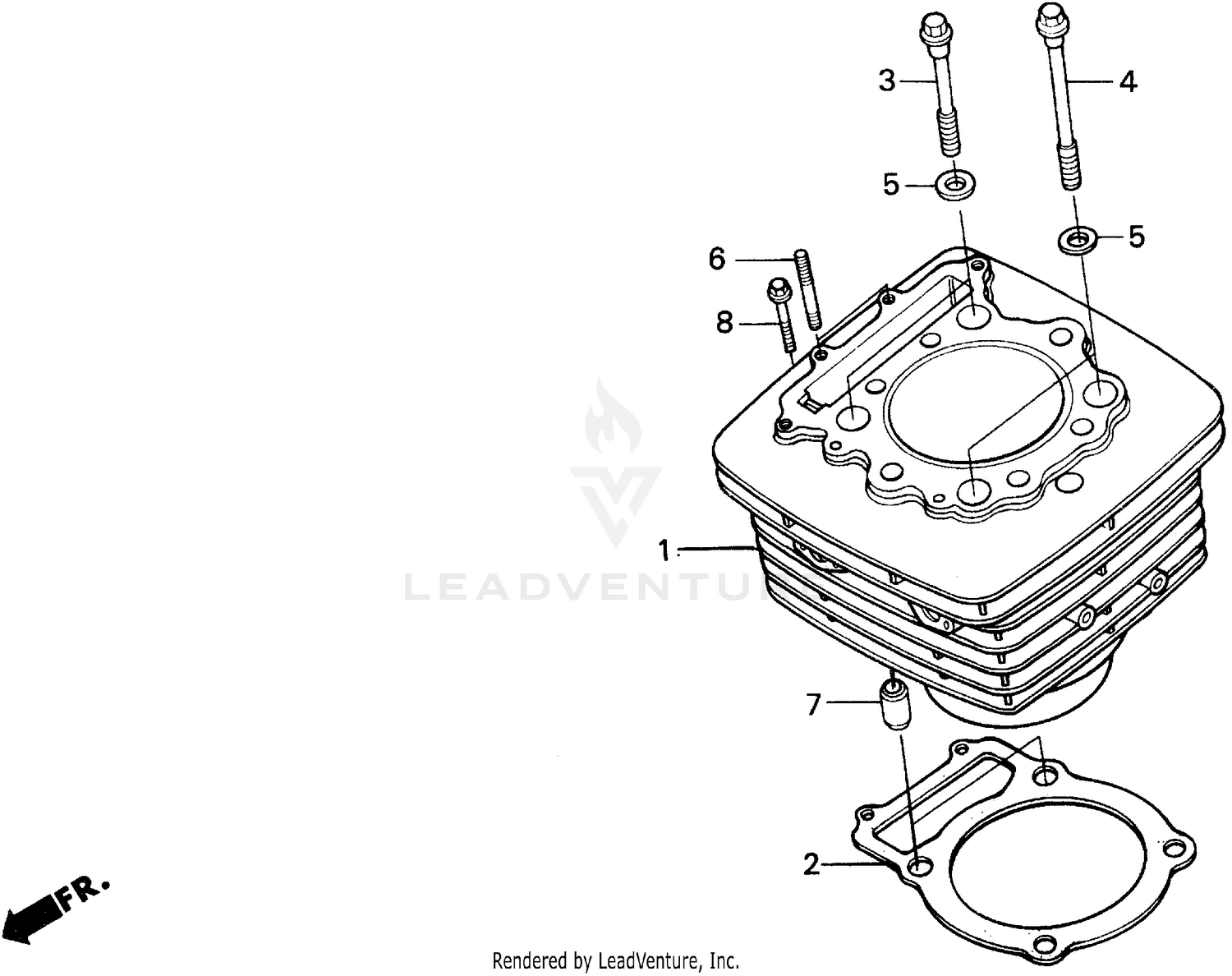

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER
12100-MY6-670
|
$764.50 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CYLINDER
12191-MN1-700
Superseded by 12191-MN1-702
|
$16.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE (10X66)
90085-MG3-000
|
$18.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE (10X110)
90086-MY6-880
|
$23.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLAIN (10MM)
90453-MK4-600
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, STUD (6X22)
92900-06022-0E
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, DOWEL (12X20)
94301-12200
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X32)
96001-06032-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
