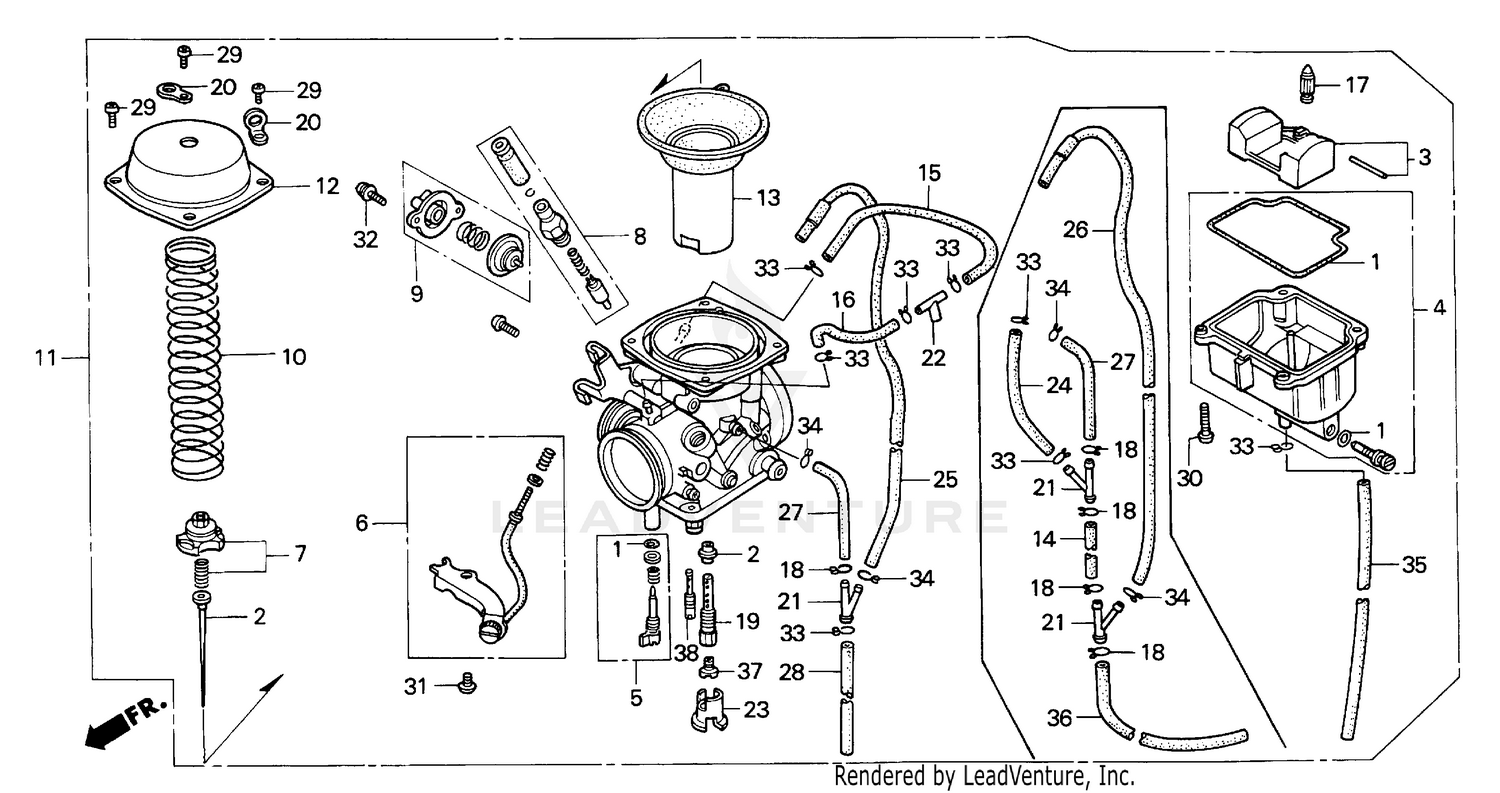

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-MY6-770
Superseded by 16010-KPK-901
|
$9.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
NEEDLE SET, JET
16012-MY6-770
|
$59.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLOAT SET
16013-KR3-980
|
$66.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
CHAMBER SET, FLOAT
16015-MY6-770
Superseded by 16015-MAK-003
|
$143.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW SET
16016-MY6-770
|
$25.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW SET
16029-MY6-770
|
$47.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE SET, VALVE
16037-MAK-000
|
$20.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE SET, VALVE
16037-MN9-004
Superseded by 16037-MAK-000
|
$20.80 | ||
|
Unavailable |
|||
|
#8
VALVE SET, STARTER
16046-MY6-770
|
$79.53 | ||
|
Available to order. Add to View Price |
|||
|
#9
VALVE SET, AIR CUT
16048-KAB-305
|
$64.24 | ||
|
Unavailable |
|||
|
#9
VALVE SET, AIR CUT
16048-MN9-004
Superseded by 16048-KAB-305
|
$64.24 | ||
|
Unavailable |
|||
|
#10
SPRING, COMPRESSION COIL
16050-MY6-670
|
$16.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
CARBURETOR ASSY. (VE85C B)
16100-MY6-772
|
$464.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
CARBURETOR ASSY. (VE85C B)
16100-MY6-771
Superseded by 16100-MY6-772
|
$464.05 | ||
|
Unavailable |
|||
|
#12
TOP
16107-MK4-602
|
$57.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
PISTON, VACUUM
16111-MY6-670
|
$135.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
BULK HOSE, VACUUM (3.5X8000) (3.5X180)
95005-35008-10M
|
$128.23 | ||
|
Available to order. Add to View Price |
|||
|
#16
BULK HOSE, VACUUM (3.5X8000) (3.5X70)
95005-35008-10M
|
$128.23 | ||
|
Unavailable |
|||
|
#17
VALVE, FLOAT
16155-MN9-004
|
$36.78 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP, TUBE
16163-GHB-600
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER, NEEDLE JET
16165-MY6-770
|
$46.53 | ||
|
Available to order. Add to View Price |
|||
|
#20
BINDER
16179-HA0-003
|
$14.69 | ||
|
Available to order. Add to View Price |
|||
|
#21
JOINT
16180-ML6-671
|
$19.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
T-JOINT
16180-195-731
|
$15.69 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLATE, BUFFER
16185-MN9-004
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
TUBE
16198-MY6-770
Superseded by 16198-MY6-505
|
$4.60 | ||
|
Unavailable |
|||
|
#27
TUBE
16199-MN9-004
|
$15.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
TUBE
16199-MY6-670
|
$10.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, PAN (4X8)
93500-04008-0A
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, PAN (4X8)
93500-04008-1A
Superseded by 93500-04008-0A
|
$0.92 | ||
|
Unavailable |
|||
|
#30
SCREW, PAN (4X14)
93500-04014-0A
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, PAN (4X14)
93500-04014-1A
Superseded by 93500-04014-0A
|
$0.87 | ||
|
Unavailable |
|||
|
#31
SCREW, PAN (6X10)
93500-06010
Superseded by 93500-06010-0A
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, PAN (6X10)
93500-06010-0A
|
$1.16 | ||
|
Unavailable |
|||
|
#31
SCREW, PAN (6X10)
93500-06010-1A
Superseded by 93500-06010-0A
|
$1.16 | ||
|
Unavailable |
|||
|
#32
SCREW-WASHER (4X10)
93892-04010-08
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW-WASHER (4X10)
93892-04010-18
Superseded by 93892-04010-08
|
$1.20 | ||
|
Unavailable |
|||
|
#33
CLIP, TUBE (B7)
95002-02079
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLIP, TUBE (B8)
95002-02089
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#35
BULK HOSE, VACUUM (3.5X1000) (3.5X370)
95005-35001-50M
|
$16.62 | ||
|
Available to order. Add to View Price |
|||
|
#37
JET, MAIN (#150)
99101-GHB-1500
|
$13.73 | ||
|
Available to order. Add to View Price |
|||
|
#37
JET, MAIN (#152)
99101-GHB-1520
|
$13.73 | ||
|
Available to order. Add to View Price |
|||
|
#38
JET, SLOW (#50)
99104-KC1-0500
|
$19.93 | ||
|
Available to order. Add to View Price |
|||
