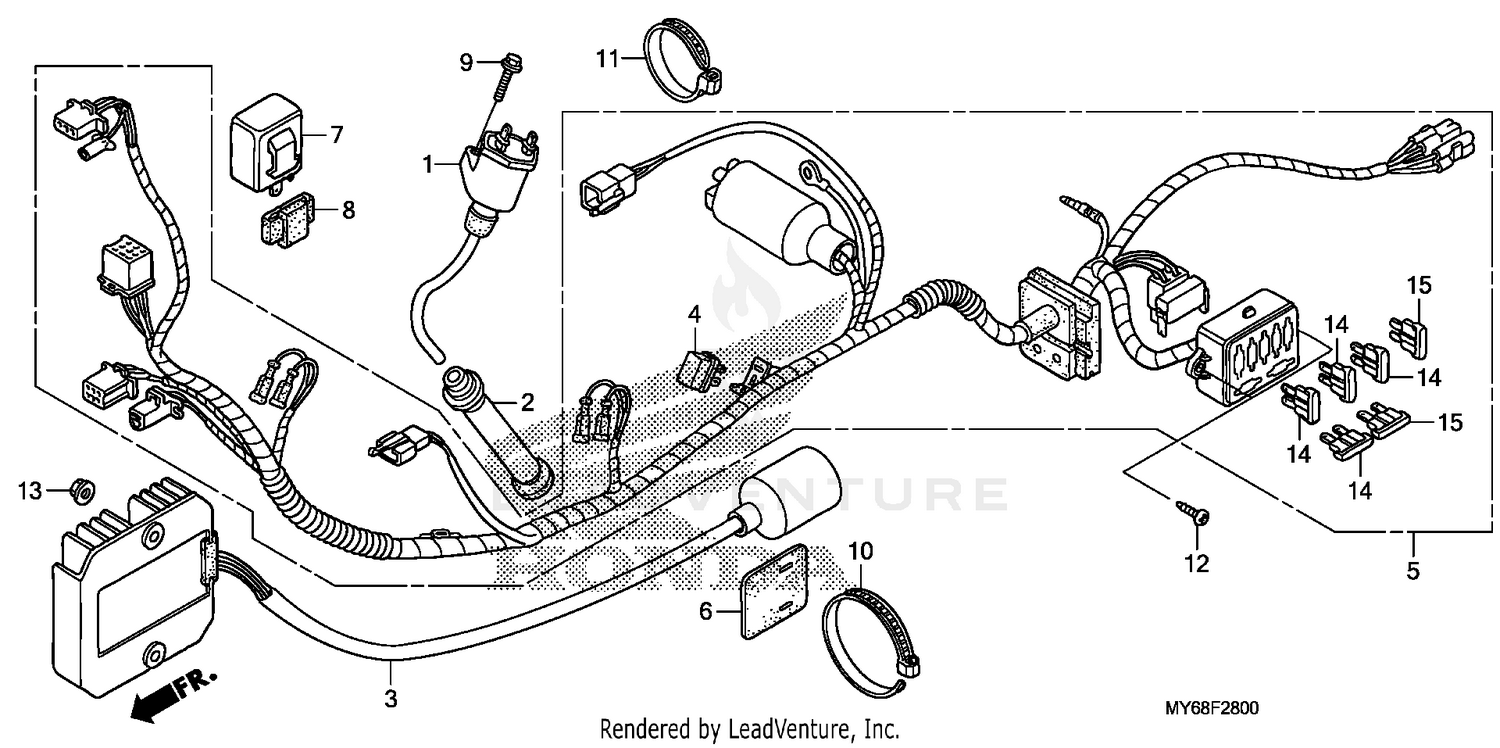

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COIL, IGNITION
30510-MN1-680
|
$93.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY,NOISE SU
30700-KF0-163
Superseded by 30700-MK4-613
|
$22.95 | ||
|
Unavailable |
|||
|
#2
CAP ASSY,NOISE SU
30700-MK4-611
Superseded by 30700-MK4-613
|
$22.95 | ||
|
Unavailable |
|||
|
#2
CAP ASSY,NOISE SU
30700-MK4-612
Superseded by 30700-MK4-613
|
$22.95 | ||
|
Unavailable |
|||
|
#3
RECTIFIER ASSY., REGULATE (SHINDENGEN)
31600-MY6-671
|
$371.44 | ||
|
Available to order. Add to View Price |
|||
|
#4
RECTIFIER ASSY., SILICON (SHINDENGEN)
31700-124-008
|
$36.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
WIRE HARNESS
32100-MY6-670
|
$517.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, PROTECTOR
32618-MN1-650
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#7
RELAY, TURN SIGNAL (MITSUBA)
38301-GN3-672
|
$74.91 | ||
|
Available to order. Add to View Price |
|||
|
#8
SUSPENSION, TURN SIGNAL RELAY
38306-GE7-000
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (5X20)
90197-MN5-000
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, WIRE (165MM) (BLACK)
90651-KV6-003
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND, WIRE (BLACK)
90652-KT1-771
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, TAPPING (5X12)
93901-25220
|
$0.91 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
FUSE, BLADE (10A)
98200-31000
|
$1.37 | ||
|
Unavailable |
|||
|
#15
FUSE, BLADE (20A) FUSE (F20) (LITTEL)
98200-32000
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
