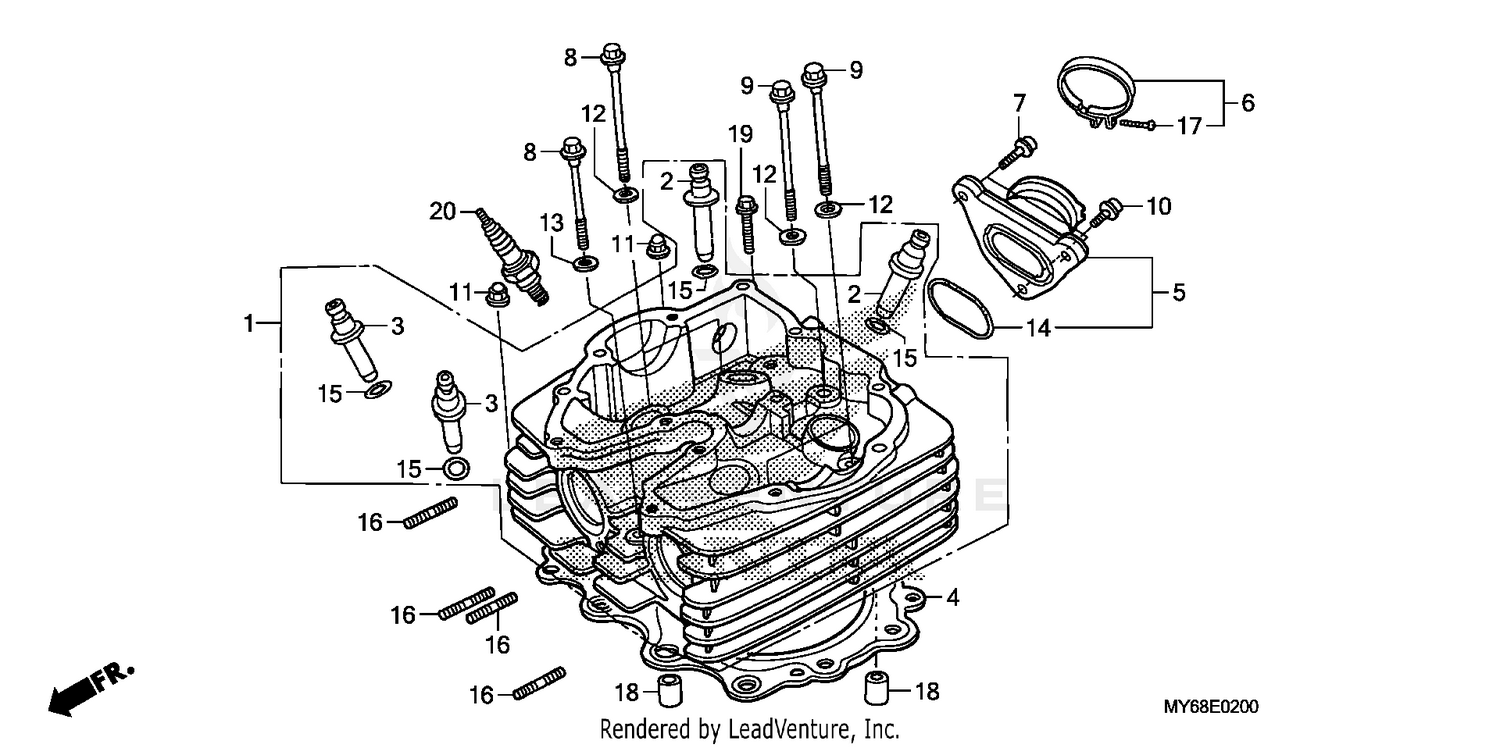

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD
12200-MY6-670
|
$948.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, IN. VALVE (OVER SIZE)
12231-MG2-306
|
$21.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, EX. VALVE (OVER SIZE)
12241-MG2-306
|
$21.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, CYLINDER HEAD
12251-MN9-742
|
$42.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
INSULATOR, CARBURETOR
16210-MY6-670
|
$102.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND, CARBURETOR INSULATOR
16219-MN9-000
|
$13.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE SOCKET (6X25)
90080-MG8-000
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (9X83)
90081-MN9-000
|
$18.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (9X110)
90082-MN9-000
|
$21.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE SOCKET (6X20)
90097-MY6-880
|
$5.51 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, CAP (6MM)
90201-415-000
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLAIN (9MM)
90501-MN1-670
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLAIN (9MM)
90502-MN9-000
|
$10.91 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING, SPECIAL (ARAI)
91301-MK4-601
|
$15.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING (10X1.6)
91301-200-000
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, STUD (8X25)
92900-08025-0B
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN (5X28)
93500-05028-0G
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN A, DOWEL (12X20)
94301-12200
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X32)
96001-06032-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPARK PLUG (DPR7EA-9) (NGK)
98069-57916
|
$2.91 | ||
|
Unavailable |
|||
|
#20
SPARK PLUG (X22EPR-U9) (DENSO)
98069-57926
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPARK PLUG (DPR8EA-9) (NGK)
98069-58916
|
$2.91 | ||
|
Unavailable |
|||
|
#20
SPARK PLUG (X24EPR-U9) (DENSO)
98069-58926
|
$2.80 | ||
|
Unavailable |
|||
|
#20
SPARK PLUG (DPR9EA-9) (NGK)
98069-59916
|
$2.91 | ||
|
Unavailable |
|||
|
#20
SPARK PLUG (X27EPR-U9) (DENSO)
98069-59926
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
