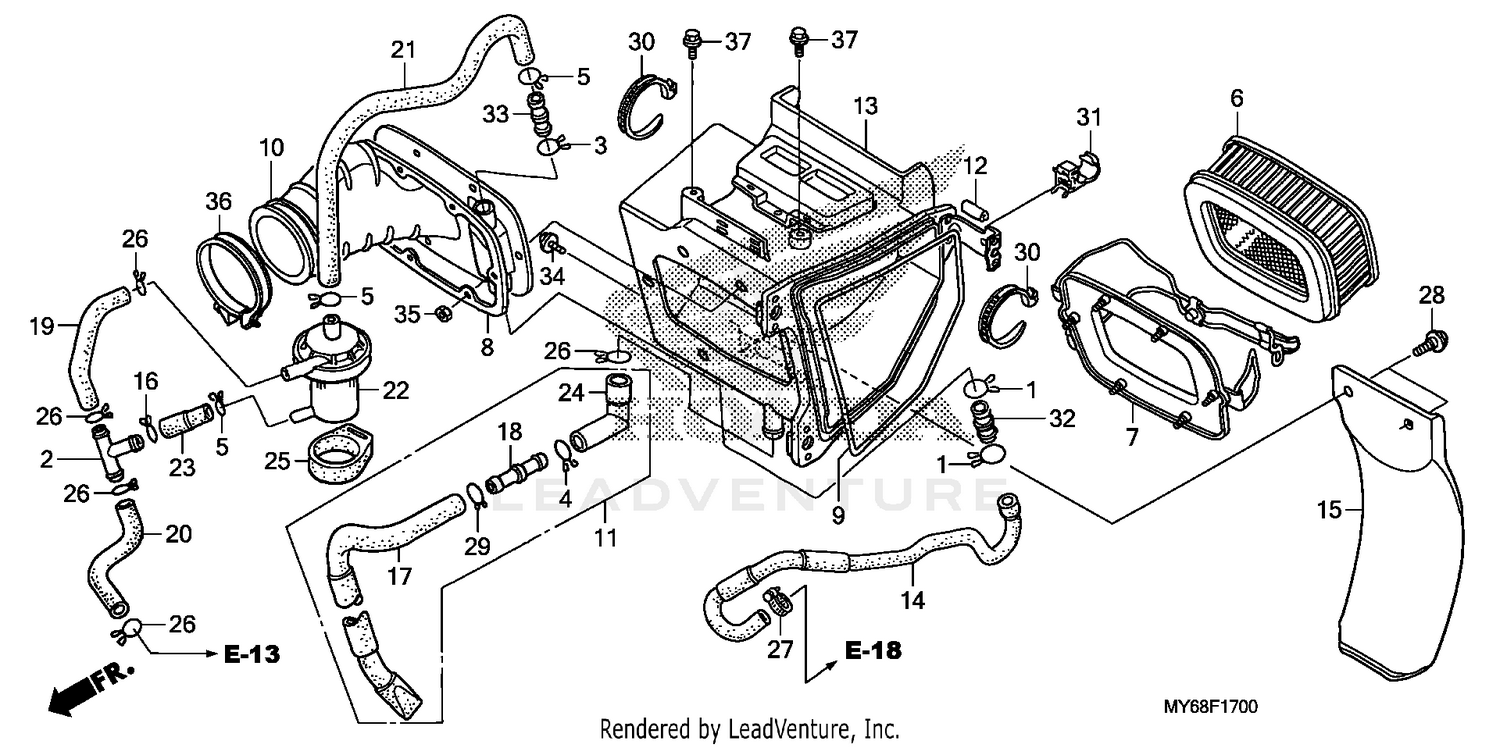

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, DRAIN TUBE (B20)
15772-GB5-670
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#2
JOINT, BREATHER (THREE-WAY)
15772-KK0-000
|
$13.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLIP, BREATHER TUBE (15MM)
15772-164-000
|
$5.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP, BREATHER TUBE CLIP, TUBE
15772-292-010
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP, BREATHER TUBE
15772-551-000
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#6
ELEMENT, AIR CLEANER
17214-MY6-670
|
$55.19 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, ELEMENT STAY
17216-MY6-670
|
$80.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, HOLDER
17217-MN1-670
|
$19.04 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, AIR CLEANER COVER
17219-HA2-000
Superseded by 17219-HA2-405
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SEAL, AIR CLEANER COVER
17219-HA2-405
|
$7.49 | ||
|
Unavailable |
|||
|
#9
SEAL, AIR CLEANER COVER
17219-HB9-000
Superseded by 17219-HA2-405
|
$7.49 | ||
|
Unavailable |
|||
|
#9
SEAL, AIR CLEANER COVER
17219-KL4-000
Superseded by 17219-HA2-405
|
$7.49 | ||
|
Unavailable |
|||
|
#9
SEAL, AIR CLEANER COVER
17219-KL4-010
Superseded by 17219-HA2-405
|
$7.49 | ||
|
Unavailable |
|||
|
#9
SEAL, AIR CLEANER COVER
17219-KN5-670
Superseded by 17219-HA2-405
|
$7.49 | ||
|
Unavailable |
|||
|
#9
SEAL, AIR CLEANER COVER
17219-ZE3-840
Superseded by 17219-HA2-405
|
$7.49 | ||
|
Unavailable |
|||
|
#9
SEAL, AIR CLEANER COVER
17221-MG2-000
Superseded by 17219-HA2-405
|
$7.49 | ||
|
Unavailable |
|||
|
#9
SEAL, AIR CLEANER COVER
17233-MF2-000
Superseded by 17219-HA2-405
|
$7.49 | ||
|
Unavailable |
|||
|
#10
TUBE, AIR CLEANER CONNECTING
17222-MY6-670
|
$144.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
TUBE ASSY., AIR CLEANER
17225-KV6-670
|
$46.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER, PROTECTOR
17229-MY6-670
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOUSING, AIR CLEANER
17230-MY6-671
|
$178.89 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE A, AIR IN.
17231-MY6-670
|
$48.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPLASH GUARD A, AIR CLEANER HOUSING
17245-MN1-670
|
$23.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP A, BREATHER TUBE
17316-MN1-670
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#17
TUBE, DRAIN
17355-KV6-305
|
$20.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
JOINT, BREATHER TUBE
17359-428-000
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#19
TUBE, BREATHER (UPPER)
17362-MY6-670
|
$9.96 | ||
|
Available to order. Add to View Price |
|||
|
#20
TUBE, ENGINE BREATHER
17363-MY6-670
|
$13.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
TUBE C, BREATHER
17364-MY6-670
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
|
#22
CRANKCASE BREATHER STORAGE TANK
17365-MN9-870
|
$84.13 | ||
|
Available to order. Add to View Price |
|||
|
#23
TUBE B, BREATHER
17365-MY6-670
|
$9.62 | ||
|
Available to order. Add to View Price |
|||
|
#24
TUBE A, DRAIN
17366-KV6-000
|
$10.00 | ||
|
Available to order. Add to View Price |
|||
|
#25
BAND, BREATHER SEPARATOR
17366-435-000
|
$8.76 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP, SUB-TANK HOSE
17724-MN1-670
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP, WATER HOSE (A)
19505-KS6-700
|
$13.25 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6MM)
90112-GC6-000
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP, DRAIN TUBE
90651-KV6-000
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#30
BAND, WIRE (BLACK)
90652-KT1-771
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLIP, CABLE (25MM)
90690-GHB-671
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
JOINT, TUBE
91463-HA7-670
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#33
JOINT, TUBE
91463-KT0-680
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT-WASHER (6X12)
93401-06012-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, HEX. (6MM)
94002-06070-0S
|
$0.89 | ||
|
Unavailable |
|||
|
#36
BAND, AIR CLEANER CONNECTING TUBE (70)
95018-70250
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE (6X10)
96300-06010-00
|
$1.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
