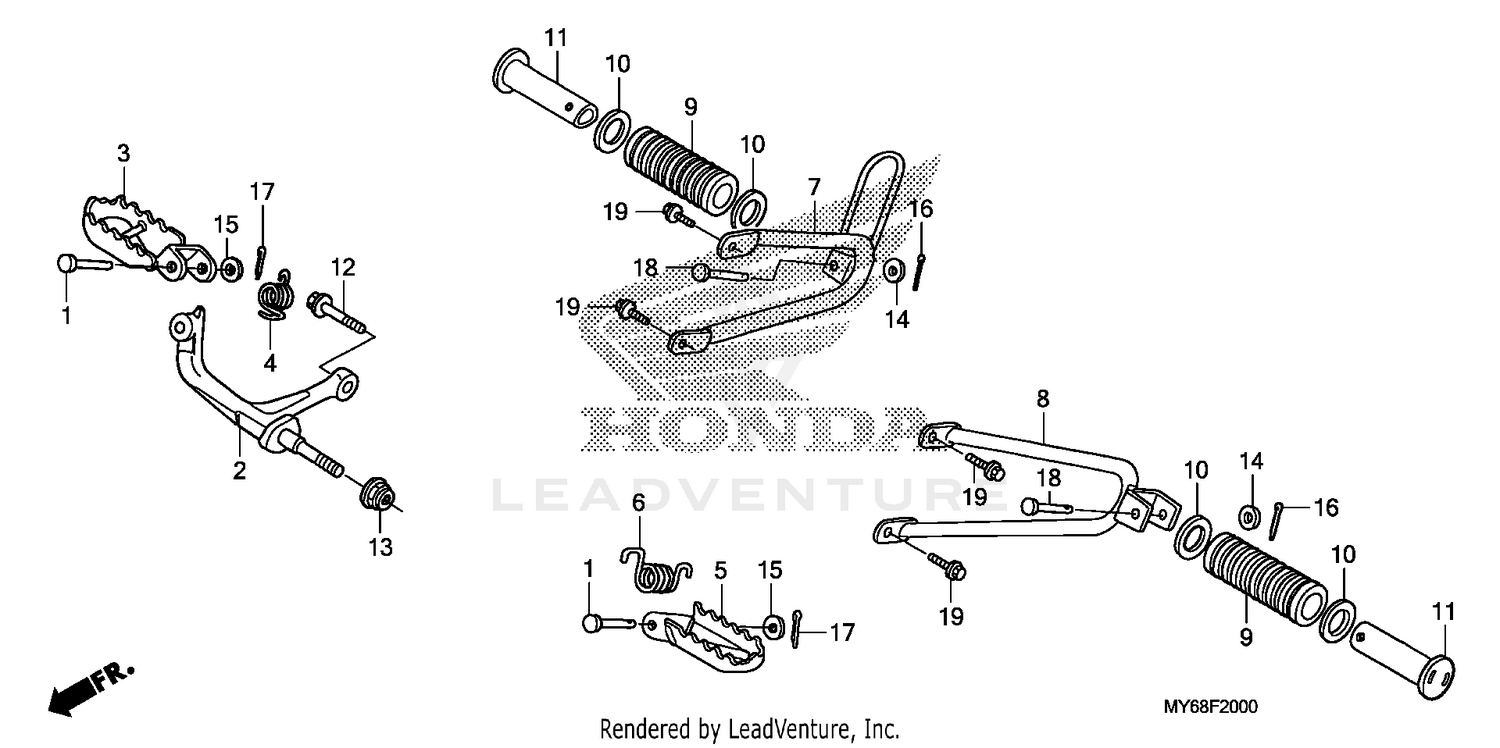

Step Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIN, STEP BAR JOINT
50603-033-010
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
ARM, R. STEP (COO)
50615-MGW-305
|
$112.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
STEP, R. (COO)
50616-MGW-305
|
$40.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, R. STEP RETURN
50617-MN1-671
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
STEP, L. (COO)
50642-MGW-305
|
$40.71 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, L. STEP RETURN
50644-KAE-000
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, R. PILLION STEP
50701-KBR-000
|
$126.96 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, L. PILLION STEP
50702-MY6-670
|
$126.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, PILLION STEP
50710-KB7-000
Superseded by 50710-MK5-000
|
$8.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, PILLION STEP
50710-MK5-000
|
$8.27 | ||
|
Unavailable |
|||
|
#10
PLATE, PILLION FOOTPEG SIDE
50713-KC1-700
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAR, PILLION STEP
50715-KB7-000
|
$33.24 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (10X40)
90211-KF0-770
Superseded by 90211-KT0-770
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (10X40)
90211-KT0-770
|
$6.45 | ||
|
Unavailable |
|||
|
#13
NUT, U (10MM) NUT, SELF-LOCK (10MM)
90304-GE8-003
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#14
WASHER, PLAIN (6MM) (USED ON TAILLIGHT)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#15
WASHER, PLAIN (8MM)
94102-08700
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, COTTER (1.6X25)
94201-16150
Superseded by 94201-16250
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PIN, COTTER (1.6X25)
94201-16250
|
$1.08 | ||
|
Unavailable |
|||
|
#17
PIN, COTTER (2.0X15)
94201-20150
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PIN A, PILLION STEP
95015-81000
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X16)
96300-08016-07
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
